Mixers - Paste Mixing Machines

GLASS GMBH & Co Mixer Paste Vertical VSM/F 300

• Manufacturer: GLASS GMBH & Co
• Model Number: VSM/F 300
• Frain Number: R29701

GLASS Model VSM/F 300, is a 300 liter, stainless steel, vertical, low pressure jacketed vacuum mixer. Pounds of product per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with 29" ID x 29" Deep stainless steel mixing bowl, with 90° pnuematic tilt, automatic open and close bolt down cover, mixing arm, side wall scrapers with hygienic seals, 5 Hp motor drive and integrated vacuum pump. Control panel has touch panel controller with process data recording and run left / right mixing baffle, motor fast, slow with vacuum on / off switch and stop push button controls. Mounted on stainless steel base frame with casters and leveling legs.
Used for convience foods, delicacies salad dressings and marinates.

OAD: 90" L x 48" W x 62" H

Lee Mixer Paste Horizontal 25UTPR

• Manufacturer: Lee
• Model Number: 25UTPR
• Frain Number: R30128

Lee 25UTPR, 25 Gallon, 3.3 ft³, 316 stainless steel, jacketed, horizontal paddle mixer. Vessel dimensions: 23" in Length; 20" in Width; 24" in Depth. M.A.W.P: 100 psi @ 338° F; M.D.M.T: -20° @ 100 psi. Equipped with a clamp down cover, 2.5" OD Tri-Clover top inlet, 10" x 10" flip open port, six 5" wide x 3" high paddles on a 2" diameter shaft, 2.5" OD side bottom discharge and variable speed.

OAD: 80" L x 28" W x 56" H

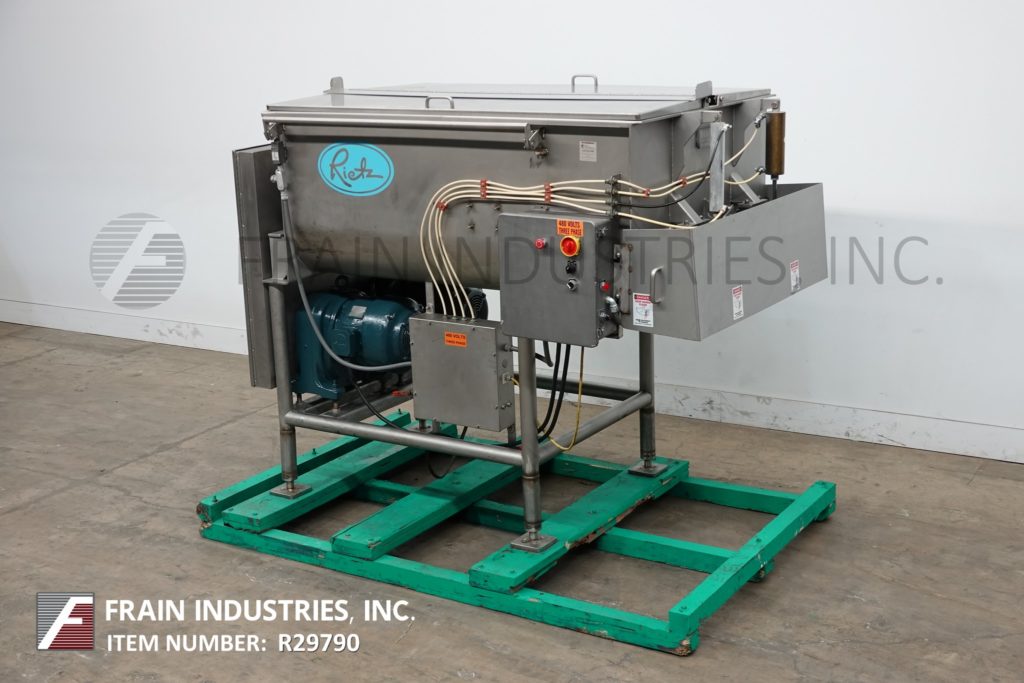

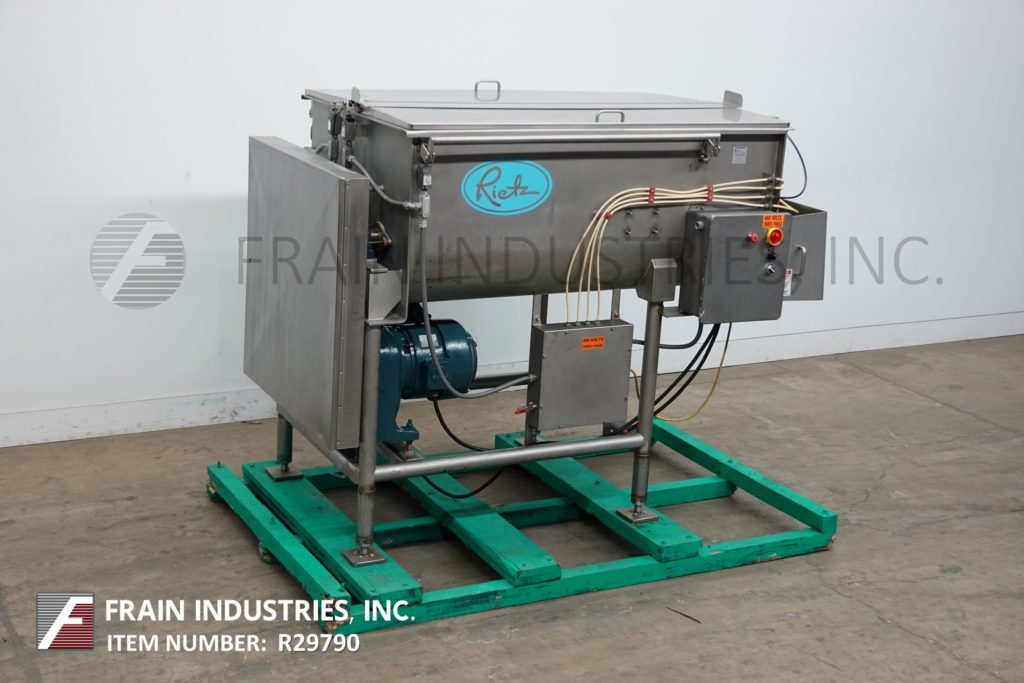

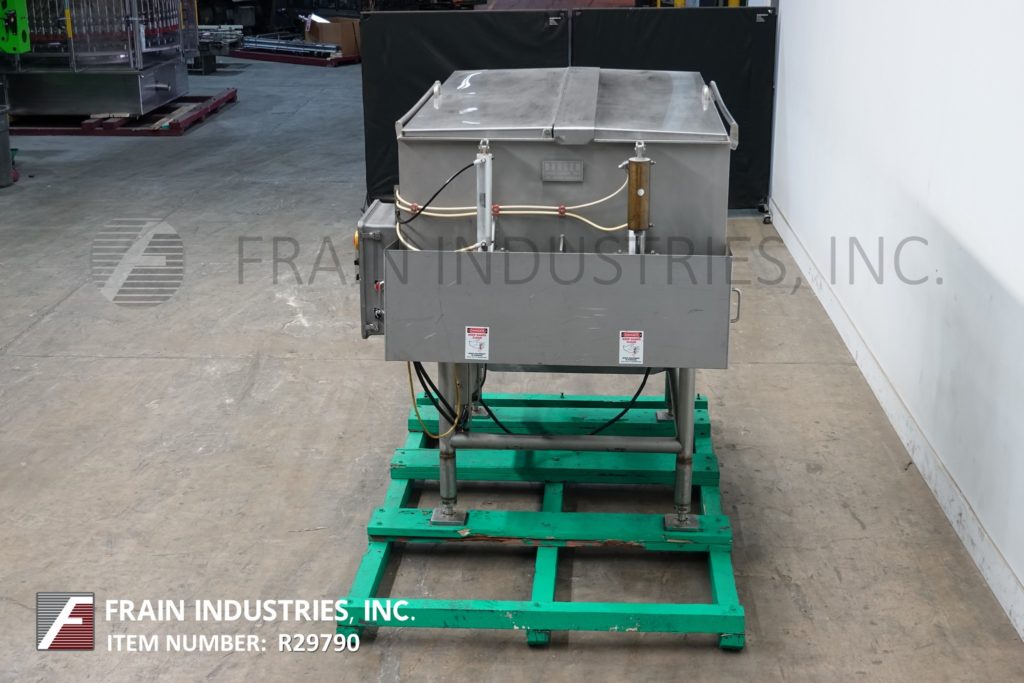

Rietz Mixer Paste Horizontal TWIN PADDLE

• Manufacturer: Rietz
• Model Number: TWIN PADDLE
• Frain Number: R29790

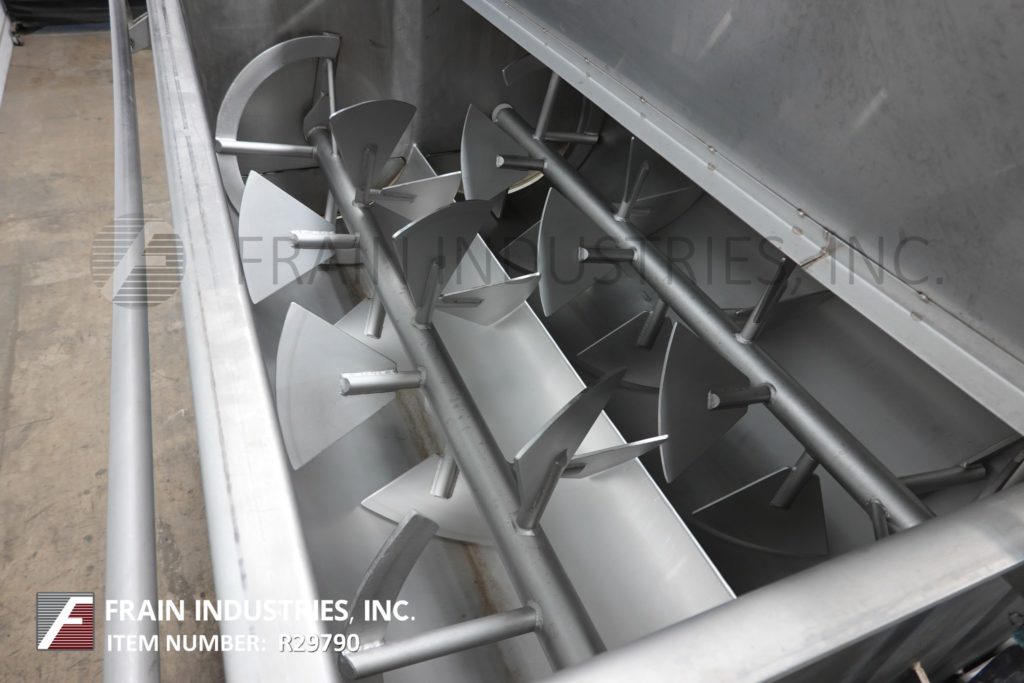

Reitz, Model stainless steel, twin paddle mixer with pounds of product per hour – depending on materials and application. Mix chamber inner dimmensions; 72" in Length; 48"in Width; 30" in Depth with dual flip up covers. Equipped with dual mixing paddles set on 3" OD shafts with 1-1/2" OD spokes. dual 7-1/2 Hp double chain to motor drives with safety guarding and dual air operated, swing up, end bottom product discharge doors with 30" floor clearance. Control panel with start. stop, e-stop push button controls. Mounted on (4) leg base frame.

OAD: 100" L x 60" W x 64" H

Champion Mixer Paste Horizontal 2EXP-SA

• Manufacturer: Champion
• Model Number: 2EXP-SA
• Frain Number: R29091

Champion Model 2EXP-SA, high speed, (3) roller bar, dough mixer with pounds of product per hour – depending on materials and application. Equipped with all stainless steel contact parts and has tilt style mixing chamber with internal bowl dimensions of 30" in Length; 27" in Width; 36" in Depth. 30" long x 1" OD inner (3) roller mixing bars with 1-1/2" od bars all on 2-1/2" shaft and single end 20 Hp motor drive. Control panel has touch pads and readout with mixer start, dough dump, up / down and start, jog, stops push button controls. Mounted heavy duty stainless steel base frame.

OAD: 72" L x 40" W x 76" H

GLASS GMBH & Co Mixer Paste Vertical VSM 300

• Manufacturer: GLASS GMBH & Co
• Model Number: VSM 300
• Frain Number: R29702

GLASS Model VSM 300, is a 300 liter, stainless steel, vertical, vacuum mixer and meat marinating machine with pounds of product per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with 30" OD x 28" Deep stainless steel mixing bowl, with 90° tilt, and automatic open and close bolt down lid with bottom mixing arms and side wall scrapers with hygienic seals and low pressure cooling jacket with 1-1/4" OD threaded side jacket ports and 5 Hp motor drive with integrated vacuum pump. Control panel has touch panel operation with process data recording and run left / right mixing baffle, motor fast, slow and stop push button controls with vacuum on / off switch. Mounted on stainless steel base frame with leveling legs.

OAD: 102" L x 48" W x 62" H

Stephan Machinery Corp Mixer Paste Horizontal TK150

• Manufacturer: Stephan Machinery Corp
• Model Number: TK150
• Frain Number: 5H2950

Stephan Machinery, Model TK150, 150 liter capacity stainless steel horizontal mixer. Rated up to 800 kg / hour, 90 kg Per Batch – depending on materials, application and machine configuration. Chamber dimensions: 22.5" diameter x 21"L. Equipped with a 13¾" x 8½" charge port with hinged cover, single arm mixing bar, scrape agitation, steam injection and 15" x 8½" hydraulic slide gate discharge with 28" ground clearance. Control panel with push button start / stop, push button open / close and touch pad display. System includes a 1 hp hydraulic pack and 9Kw steam generator. Mounted on a stainless steel base with casters.

OAD: 82" L x 42" W x 60" H

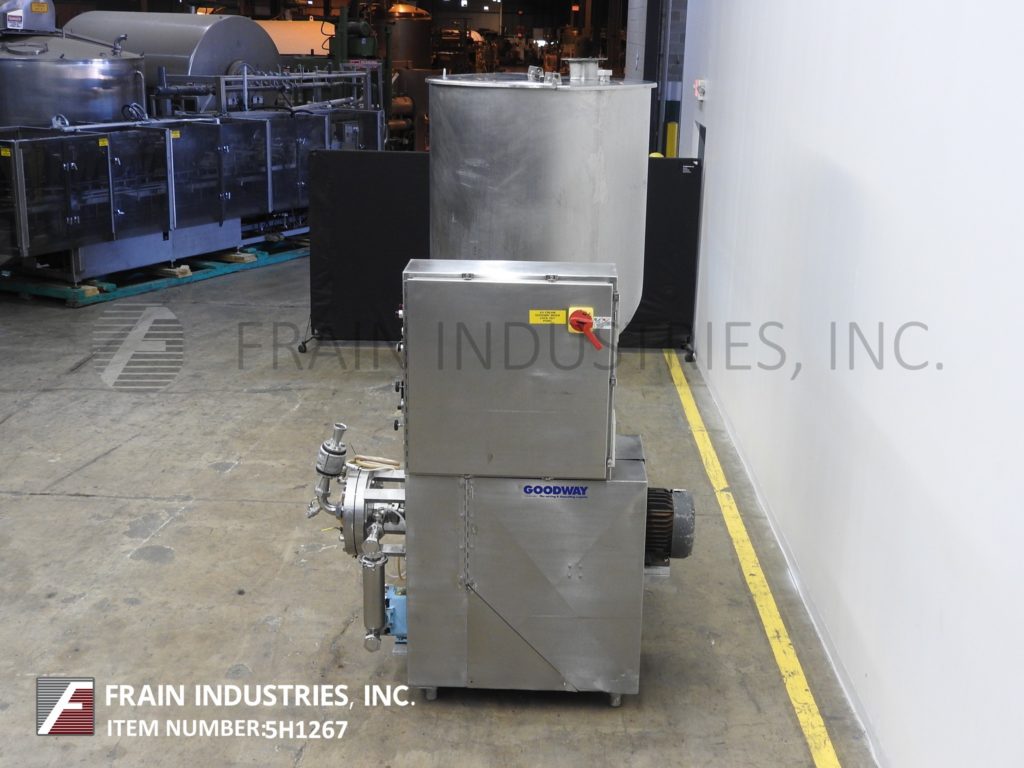

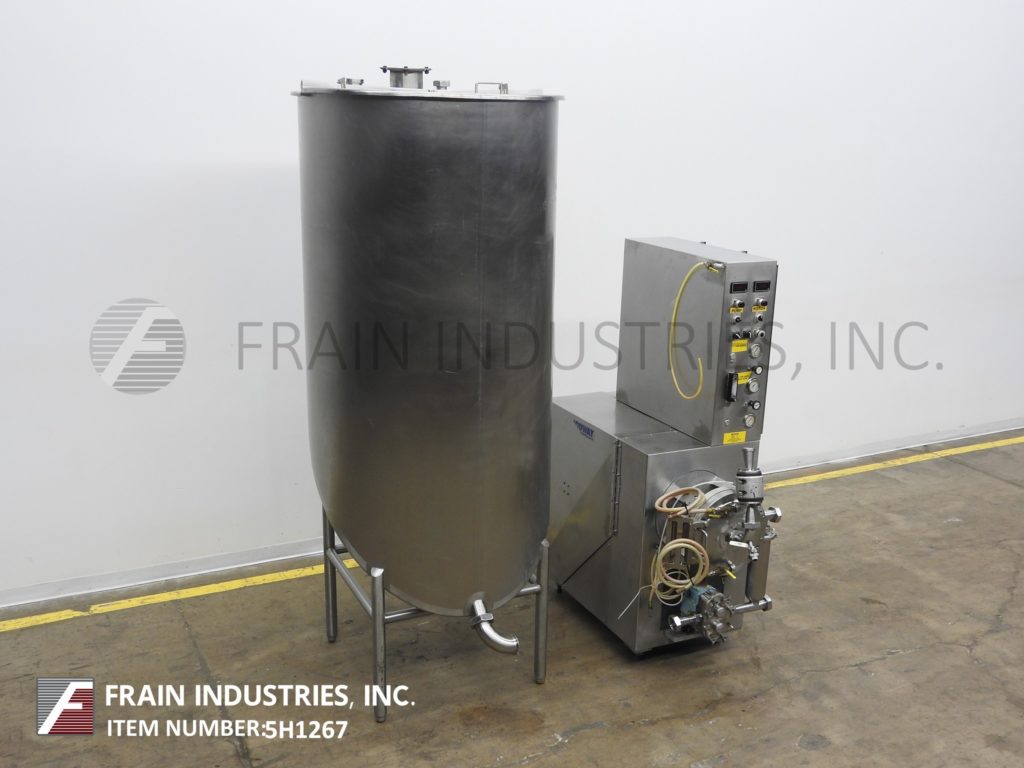

Goodway Mixer Paste Horizontal CM35

• Manufacturer: Goodway
• Model Number: CM35
• Frain Number: 5H1267

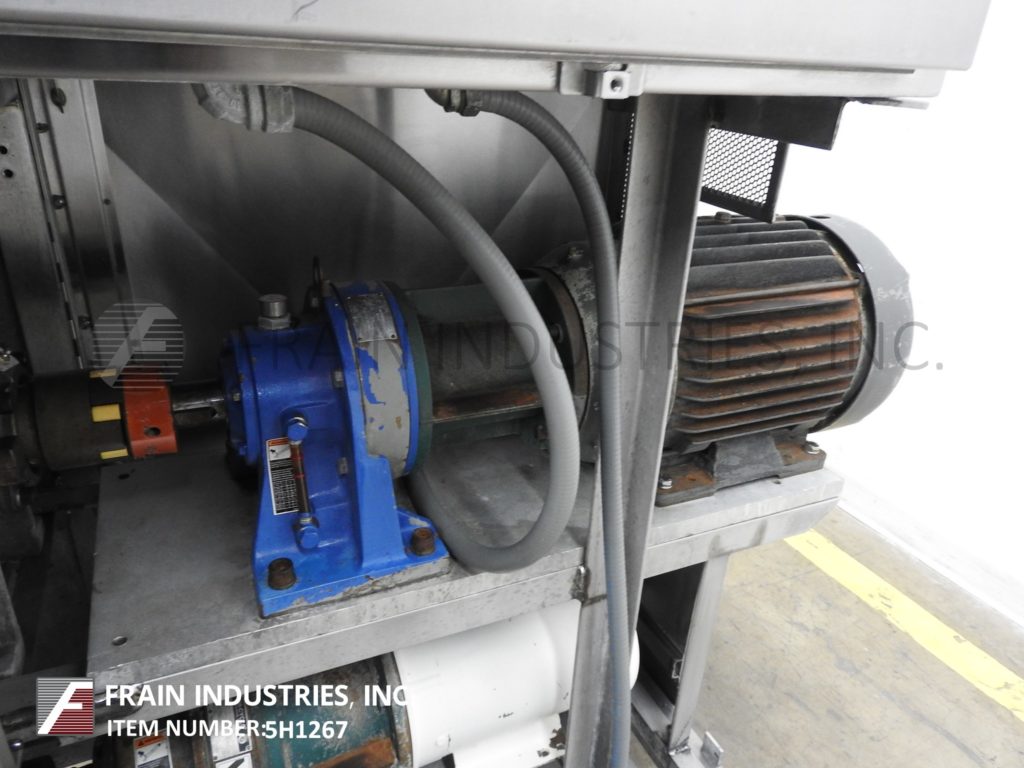

Goodway Model CM35, compact, stainless steel, continuous, high shear, rotar, stator, aerator, mixer rated from 250 to 4800 pounds of product per hour – depending on materials and application. Equipped with double wall mixing chamber for cooliant circulation with 16" OD / 13" ID pyramid shaped mixing head has raidial flow disc with high shear action consisting of front and rear rotor and stator with 2-1/2" OD threaded center finished product outlet port and sanitary seal drive shaft rated from 150psi standard up to 450psi on the CM35. Bottom product pump with 2" OD threaded in/outlet ports. Control panel has mixer / pump speed control dials, head pressure regulator and pump and mixer hand, auto, off switches. Mounted on a stainless steel common base frame. Continuous mixer aerates cake batter, creme fillings, marshmallow, icings, whipped creme, butter and many others.

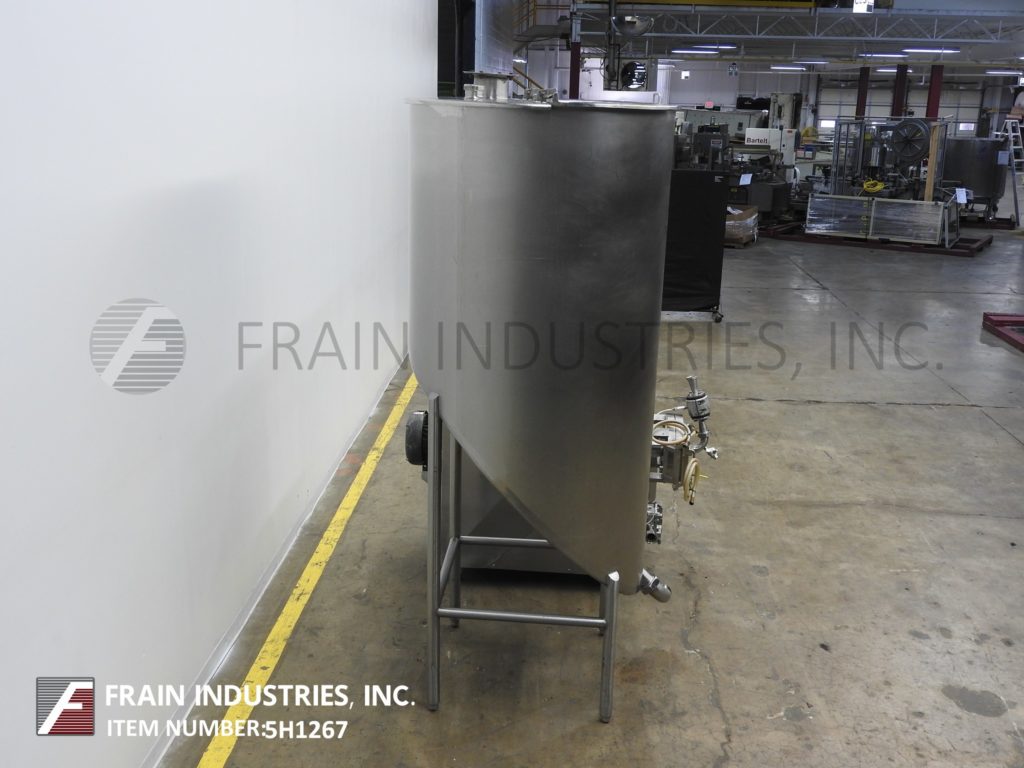

450 gallon, 304 stainless steel, slant bottom holding tank. Vessel Dimensions: 46" diameter x 90" deep with a 45" straight wall. Equipped with a 3½"OD / 3"ID Seated Bevel style bottom discharge with 8" ground clearance. Mounted on (4) legs.

OAD: 78" L x 30" W x 80" H (mixer)
OAD: 48"L x 48"W x 110"H (tank)

Oakes Mixer Paste Horizontal 14MC10

• Manufacturer: Oakes
• Model Number: 14MC10
• Frain Number: 5G9634

Oakes, Model 14MC10, jackted high shear continuous rotor stator pin mill mixer with 316 stainless steel contact parts rated up to 4000 lb per hour – depending on materials, application and machines configuration. Equipped with Crepaco, Model R3R, positive displacement feed pump with a 2"OD / 1½"ID seated bevel style inlet powered by a 1½ hp drive and a 14" OD mixing head with 2" OD / 1½" ID seated bevel style center product discharge with 48" ground clearance powered by a 10 hp drive. Control panel with push button start / stop for rotor and pump and variable speed controls. Mounted on painted base frame with casters.

OAD: 60"L x 45"W x 75"H

Oakes Mixer Paste Horizontal 14MF15IA

• Manufacturer: Oakes
• Model Number: 14MF15IA
• Frain Number: 5G9635

Oakes, Model 14MF-15IA, jacketed, high shear continuous rotor / stator pin mill mixer, aerator with 316 stainless steel contact parts, rated up to 4000 lb per hour – depending on materials, application and machines configuration. Equipped with Waukesha Model 60, positive displacement feed pump with 3½"OD / 3"ID Tri-Clamp style inlet port powered by 3 Hp drive and 14" diameter mixing head with 2½"OD / 2"ID Tri-Clamp style center product discharge with 46" ground clearance and powered by a 10 Hp motor drive. Control panel has pull to start / push to stop buttons as well as variable speed dials for pump and rotor. system. Mounted on a stainless steel base frame.

OAD: 64"L x 39"W x 77"H

Ross Mixer Paste Vertical DPM-40

• Manufacturer: Ross
• Model Number: DPM-40
• Frain Number: R29011

Ross Model DPM-40 Series lll, 40 gallon, 316 stainless steel, sanitary design, atmospheric, double planetary mixer. Equipped with dual planetary mixing blades with 15 hp drive and rated to 8 million cps. Additionally features an 8" hinged sight / charge port with 6" Tri Clover atomizing nozzle port, (2) 2" OD sanitary top and 3" OD light port. PLC and e-stop. Mix can dimensions: 24" in diameter; 24" straight wall. Through put dependent on materials, application and machine configuration.

OAD: 88" L x 60" W x 83" H

Rietz Mixer Paste Horizontal RSV23K6405

• Manufacturer: Rietz
• Model Number: RSV23K6405
• Frain Number: 5E1447

Rietz Model RSV23K6405, 2000 lb. stainless steel, dual shaft ribbon mixer with amount of product per hour – depending on materials and application. Chamber dimensions: 64" in Length; 48" in Width; 32" in Depth. Equipped with pneumatically actuated cover, dual reversing ribbons set on 4" shafts with 2" wide x 1/4" thick ribbons, with dual drives and has pneumatically operated end discharge with 36" floor clearance. Mounted on (4) leg heavy duty frame.

OAD: 100" L x 84" W x 82" H

Stokes Mixer Paste Single Arm 21J

• Manufacturer: Stokes
• Model Number: 21J
• Frain Number: 5H2803

Stokes single arm, 304 stainless steel, sigma style mixer with working capacity of up to 4.7 ft³. Chamber dimensions: 27" in Length; 22" in Width; 27" in Depth, Equipped with single sigma mix arm, hinged cover, 3 hp motor drive and hand crank tilt discharge. Control panel with push button start / stop.

OAD: 60"L x 30"W x 60"H
