Vertical Tuck Machines

Vertical Tuck Equipment In Stock

Jones Cartoner Semi Vertical Tuck CMV5 used cartoners

  • Manufacturer: Jones
  • Model Number: CMV5
  • Frain Number: R21033

Semi automatic continuous motion vertical cartoner capable of speeds up to 120 cartons per minute. Has 5" centers for a carton size range: (length) 1-1/4" 4-1/4" (width) 1" – 4-1/4" (depth) 3" – 9". Has a 5’L extended frame for 10′ L loading area on each side of machine. Uses belt closure & has lexan interlocking guards. Currently set up for reverse tuck, can be modified for straight tuck, fifth panel or glue for additional cost. On casters and leveling screws. Good working condition price is set to one size carton (subject to receipt and review of samples) Optional accessories available for an additional cost: Embosse date coder, Bottle loader, leaflet feeder.
OAD = 70"W x 246"L x 70"H Approx. Weight 3500 lb

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck CMV6

  • Manufacturer: Jones
  • Model Number: CMV6
  • Frain Number: R18731

Semi automatic continuous motion vertical cartoner capable of speeds up to 90-120 cartons per minute. Has 6" centers for a carton size range:(length) 1" – 5-1/4" (width) 3/4" – 4-1/4" (depth) 2-1/2" x 8". Currently set up for reverse tuck cartons, can be converted to glue or straight tuck at additional cost. Equipped w/belt tuckers, lexan guarded and has a extended frame for additional load area (8′ each side). Machine can be demonstrated and set to size at additional cost. Includes 3′ long canvas belt carton discharge. Available options @ additional cost: Jones automatic bottle loader installed on machine = $29,500. Emboss date dater = $6,750. (R18731B) Prefolded leaflet feeder installed = $25,000. (R18731A)
Final pricing subject to review of bottle, carton & leaftlet samples.

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck IMV5

  • Manufacturer: Jones
  • Model Number: IMV5
  • Frain Number: 5C4411

Jones IMV5, Semi-automatic intermittent motion vertical cartoner capable of speeds from 30 to 60 cartons per minute – speeds depending on materials and application. 2 chain unit set on 5" centers with brass lugs. Has a carton size range of: Length (1" – 4"). Width (3/4" – 4-1/4") Depth (2-1/8 " – 7" w/ change parts). Unit has a 40" load area, 26" long carton magazine with vacuum pick and place, currently set for reverse tuck.
(Mechanical emboss coder available for an additional $6,500). OAD: 8’L x 5’w x 5’h

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck IMV5 5" Centers, Intermittent Motion Tuck Cartoner, up to 60 cartons per minute

  • Manufacturer: Jones
  • Model Number: IMV5
  • Frain Number: 5E0187

Jones IMV5, Intermittent motion, vertical, tuck cartoner capable of speeds from 30 to 60 cartons per minute – speeds depending on materials and application. Cartons: 1" – 4" in Length; 3/4" – 2-3/4" in Width; 2-1/8" – 7" in Depth. Equipped with a 26" carton magazine, reciprocating vacuum pick & place carton transfer, 2-chain drive with 5" centers, E-stop, variable speed drive controller for product in feed, and status indicator lights. Mounted on casters.

OAD: 135"L x 64"W x 67"H

Get a Free Quote Call: 630-629-9900

Bivans Cartoner Semi Vertical Tuck 74T

  • Manufacturer: Bivans
  • Model Number: 74T
  • Frain Number: R27410

Bivans, Model 74T, semi-automatic, continuous motion, vertical tuck cartoner. Carton size range: (7/8)" to 5" in Length; ¾" to 3½" in width; 2¼" to 10" in Depth. Equipped with 24" long magazine, vacuum pick & place, 6" centers, 44" long load area on each side, 3" wide x 36" long discharge belt conveyor and Lexan guarding. Control panel with push button start / stop / jog / reset, run / jog switch, vacuum on / off switch and variable speed control dial. Mounted on heavy duty base frame with casters and leveling pads.
Speed dependant on materials, application, operator dexterity and machine configuration.

OAD: 153"L x 67"W x 64"H

Get a Free Quote Call: 630-629-9900

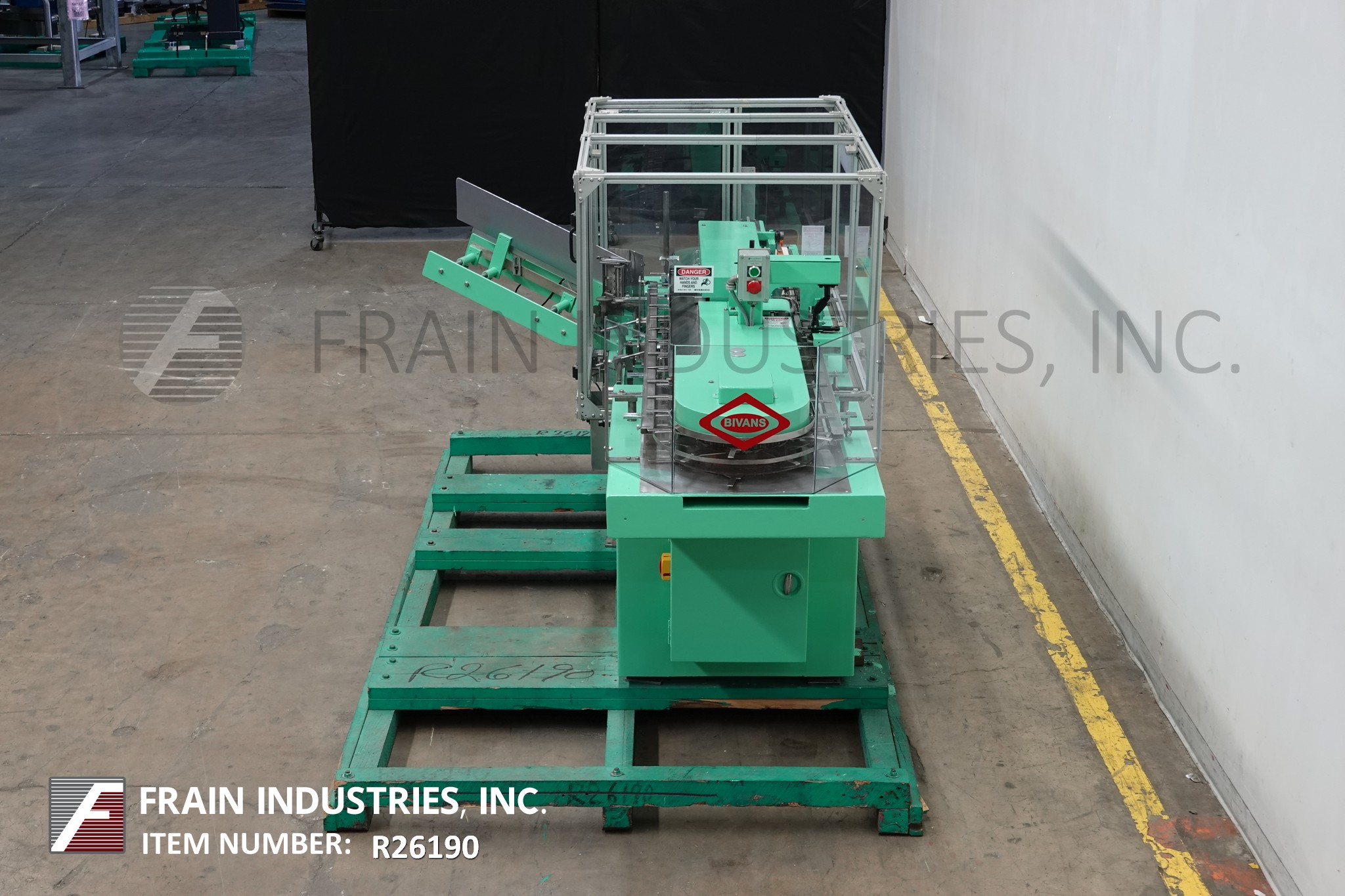

Bivans Cartoner Semi Vertical Tuck 74T

  • Manufacturer: Bivans
  • Model Number: 74T
  • Frain Number: R26190

Bivans Model 74T, semi-automatic continuous motion vertical tuck cartoner rated from 20 to120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 7/8" to 5" in Length; 3/4" to 3 1/2" in width; 2-1/4" to 10" in Depth. Currently set on 6" centers, vacuum pick and place, (5) foot load area each side, barrier guarding and E-stop. Mounted on heavy duty base frame. Coder available at additional cost.

OAD: 162" L x 60" W x 60" H

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck IMV5

  • Manufacturer: Jones
  • Model Number: IMV5
  • Frain Number: R24170

Jones Model IMV5, semi automatic, intermittent motion, vertical, tuck cartoner capable of speeds from 20 to 60 cpm – speeds depending on materials and application. 2 chain unit is set on 5" centers, carton size range of: 1"- 4" L x 3/4"- 2-3/4" W x 2 1/8"- 7" D. Has a 24" L blank carton magazine, recipicating suction cup pic-n-place, with vacuum package, 28" L load area (each side), controller with start / stop buttons for machine, and vacuum system with e-stop, and saftey guarding.

OAD: 99" L x 51" W x 58′ H

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck CMV5

  • Manufacturer: Jones
  • Model Number: CMV5
  • Frain Number: R23800

Jones Model CMV5, semi automatic, continous motion, vertical, reverse tuck, cartoner capable of speeds from 40 to 120 cpm – speeds depending on materials and application. 4 chain adjustable unit is set on 5" centers. Carton size range: 1" to 4-1/4" in Length x 3/4" to 4-1/2" in Width x 2-1/2" to 9" D in Depth Equipped with 29" long blank carton magazine with carton pusher, vibratory feeder, recipicating single head (2) suction cup pick-n-place, 10′ L load area, (each side) of machine, 60" long x 4 -1/2" wide canvas discharge conveyor belt, with 32" discharge height. Allen Bradley SLC 500 series PLC, with status indicator lights, electrical interlock barrier guarding, E-stop, mounted on a common base with casters, and height adjustable legs.

Allen Bradley series 503 barcode scanner, at additional cost

OAD: 216" L x 68" W x 78" H

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: R22361

Redington semi-automatic continuous motion, vertical tuck cartoner. Carton Size Range: 3/4" to 5" in Length; 3/4" to 4" in Width; 2-1/2" to 9" in Depth. Equipped with carton magazine, reciprocating carton pick-n-place, 4 chain carrier system set on 6" centers. 12′ product load area (6′ each side on machine), top and bottom carton tucking mechanisms and discharge conveyor. Speeds dependant on materials, application and machine configuration.

OAD: 228" L x 48" W x 72" H

Get a Free Quote Call: 630-629-9900

Tisma Cartoner Semi Vertical Tuck TC50E used cartoners

  • Manufacturer: Tisma
  • Model Number: TC50E
  • Frain Number: R22181

Tisma Model TC50E, semi automatic vertical cartoner rated from 60 t0 150 cartons per minute – speeds depending on materials and application. Machine is on 7-1/2" centers with carton size range of: (length) 1" – 6"; (width) 1/2" – 3"; (Depth) 2 1/2" to 8". Equipped with powder carton magazine, 2 head rotary feeder, graduated scale adjustments, 4′ 6" load area on each side of carousel, E- Stops, E-trac AC inverter, Piab vacuum system and interlocked guarding.
Currently set on a reverse tuck.
Optional emboss coder available for an additional $5,500.

OAD: 150" (L) x 50" (H) x 52" (H)

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck CMV6 used cartoners

  • Manufacturer: Jones
  • Model Number: CMV6
  • Frain Number: R20503

Jones Model CMV6, semi automatic continuous motion vertical cartoner rated from 40 to 120 cpm – depending on materials, application and machine configuration. Carton size range: 1" to 5-1/4" in Length; 3/4" to 2-1/2" in Width; 3" – 9" in Depth.
Equipped with 24" carton magazine, 3 chain adjustable lug system set on 6" centers, 14′ product load area (7′ per side), 56" by 4-1/2" discharge conveyor,. and Lexan Guarding.
OAD: 240" L x 69"W x 70" H.

(Emboss coder available at additional cost.)

Get a Free Quote Call: 630-629-9900

Jones Cartoner Semi Vertical Tuck CMV8 used cartoners

  • Manufacturer: Jones
  • Model Number: CMV8
  • Frain Number: R18371

Jones CMV8, semi automatic, continuous motion vertical loading cartoner rated from 40 to 100cpm – depending on materials, application and machine configuration. Carton size range: 1" to 7-1/4" in Length; 3/4" to 4-1/4" in Width; 3-1/2" to 8" in Depth. Heavy duty 3-chain system with 8" centers. Equipped with 24" carton magazine, 6′ load area each side, AB PLC and interlocking lexan guarding.

Get a Free Quote Call: 630-629-9900
