Looking for a used shrink wrap machine for sale? You’ve come to the right place.
Shrink wrapping equipment or shrink packaging equipment is designed to package products or packages within a film that is subsequently heat shrunk around the product or package to create a very tight seal with the package.
Shrink wrapping is sometimes used as the primary packaging. Some individual foods, soaps and other products may be wrapped directly. More commonly shrink wrapping is used as a secondary or tertiary packaging. An example of secondary use is shrink wrapped six-packs of beverage cans or 24 pack bundles of water.
Wrapping is also commonly used as a tertiary packaging such as overwrapping an individual carton or bundle of cartons. In the past, appearance of the tertiary packaging has not been considered critical important as the customer never saw it. The rise of club stores like Costco and Sam’s Club has changed this. The 6 pack of canned corn is now the unit of sale in these stores and appearance has become critical to branding. Previously translucent grey film was fine since nobody outside of the stockroom was likely to see it. Now, glossy film with registered graphics is needed to catch the customer’s eye using bullseye or end seal wrapping. This affects the choices of machinery that can be used.
Download the complete Shrink Wrapping Whitepaper to continue learning about different types of wrappers.
One important consideration when selecting the proper a shrink packaging machine is the type of shrink package that is desired around the product. L-bar sealer shrink packaging equipment forms a film seal around a product that has three side seams, one the front of the package and one on each side of the package. Flow thru shrink packaging equipment forms a shrink film package from a single roll of shrink film that has an overlapped shrink film seal underneath the package and a cross seal on the front and back sides of the package. Shrink bundler packaging equipment forms a shrink film package around the product from two rolls of shrink film which has cross seam across the front and back sides of the package and openings in the film package on the left and right sides of the package.
Once a product has been wrapped in shrink film, the product passes through a heat shrink tunnel. The heat from the heat shrink tunnel causes the film to shrink around the product forming a tight package around the product.
Browse our used shrink wrap machines for sale or contact Frain today to discuss your project.
Related Categories
Shrink Equipment In Stock
Arpac Shrink Tunnels XT18
- Manufacturer: Arpac
- Model Number: XT18
- Frain Number: R33911
Arpac, Model XT18, Convection shrink tunnel with number of product per minute / hour – depending on material and application. Equipped with 12" in Height; 21" in Width total aperture with 73" Long shrink heat chamber, 86" long x 17¼" wide composit conveyor, illuminated shrink chamber and viewing window and blowers. Swivel control panel with variable speed temperature and air velocity controls. Mounted on base frame with casters and leveling legs.
OAD: 88"L x 45"W x 65"H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Tunnels XT18
- Manufacturer: Arpac
- Model Number: XT18
- Frain Number: R33910
Arpac, Model XT18, Convection shrink tunnel with number of product per minute / hour – depending on material and application. Equipped with 12" in Height; 21" in Width total aperture with 73" Long shrink heat chamber, 86" long x 17¼" wide composit conveyor, illuminated shrink chamber and viewing window and blowers. Swivel control panel with variable speed temperature and air velocity controls. Mounted on base frame with casters and leveling legs.
OAD: 88"L x 45"W x 65"H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Flow Thru TS37
- Manufacturer: Arpac
- Model Number: TS37
- Frain Number: R33840
Arpac Model TS37 / XT18, Horizontal, continuous motion, side seal shrink wrapper and tunnel rated from 0 to 90 linear feet or 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3-1/2" to 60" in Length; 2" to 16" in Width; 1/4" to 7-1/2" in Height. Equipped with 120" long lugged product in feed conveyor, LDPE seal jaws with next generation side seal with film registration and product discharge conveyor. Film specs: up to 39" wide single wound film on 3" OD core; to 14" OD with pull out film carriage. Control panel has A/B controller, with no product detection, perf and scrap removal wheels, seal bar trim, tempature controllers, drive speed dial with start, stop, jog and e-stop. Mounted on (4) leg frame with interlock safety guarding.
Shrink tunnel: Aperture: 24" in Width; 14" in Height; tunnel 72" in Length. Equipped with 120" long x 22" wide conveyor, top mounted blower with variable speed and temperature controls. Mounted on height adjustable (4) leg frame.
OAD: 300" L x 63" W x 61" H
Get a Free Quote Call: 630-629-9900
Abec Cleaner CIP/COP 40 GALLON
- Manufacturer: Abec
- Model Number: 40 GALLON
- Frain Number: 5H7400
Abec, 304 stainless steel Clean-in-place tank. Equipped with one tank measuring 21" L x 25" W x 16" H (35 gallons), level detector and 1½ hp centrifugal pump. Unit mounted on stainless steel platform with AB touch screen HMI
OAD: 77"L x 30"W x 74"H (tank cart)
50"L x 32"W x 93"H (HMI)

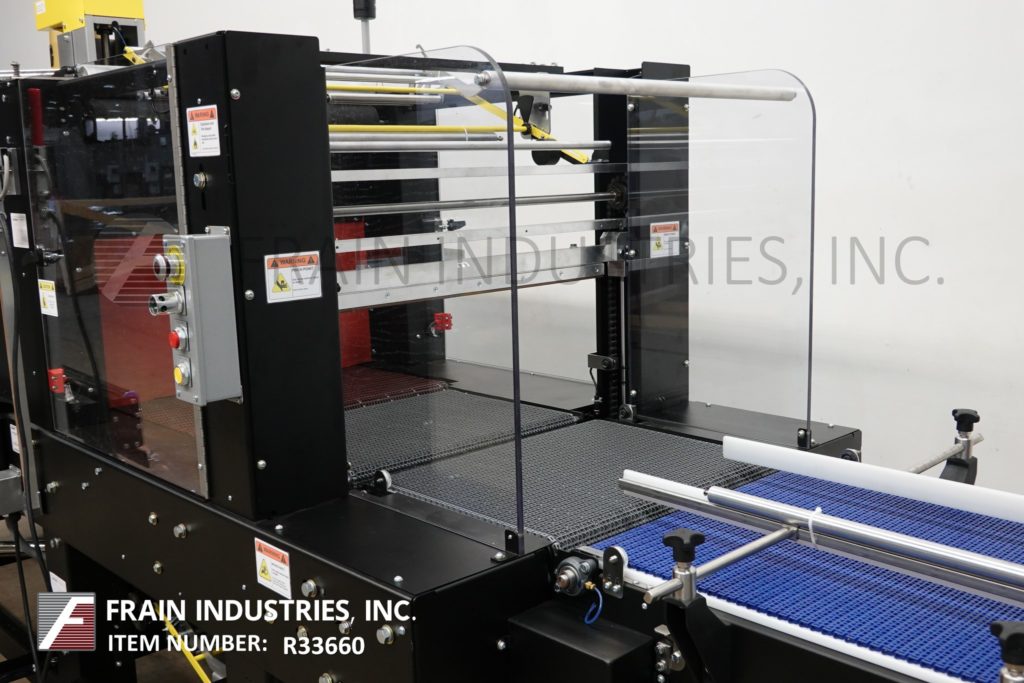

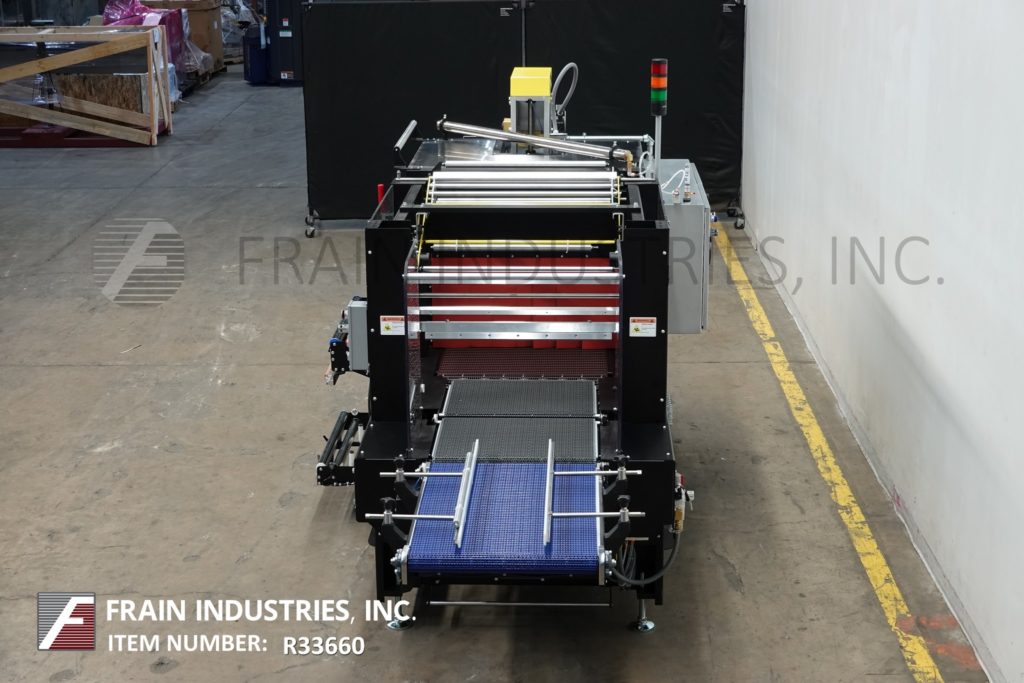

Arpac Shrink Bundler 25TW28
- Manufacturer: Arpac
- Model Number: 25TW28
- Frain Number: R33660
Arpac, Model 25TW-28 RH, inline, intermittent motion, shrink bundler with integrated tunnel. Equipped with 20" long x 24" wide in feed conveyor, 28" wide hot impulse seal jaw with 13" of vertical travel and an 18" long x 24" wide transfer conveyor into single zone shrink tunnel.
Shrink tunnel features a 29" wide flex link conveyor passing through an aperture of 32” in Width by 16" in Height. Tunnel length of 67". Top mounted "Turbo Cooling" blower at tunnel discharge.
Additionally features Allen-Bradley® PanelView 600Plus operator interface with color
touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel, side mounted film racks, film splice station, status light bar and interlocked safety guarding.
Speed dependant on materials, application and machine configuration
Film roll: up to 27" in width; up to 14" OD; 3" core.
OAD: 169" L x 72" W x 78" H
Get a Free Quote Call: 630-629-9900

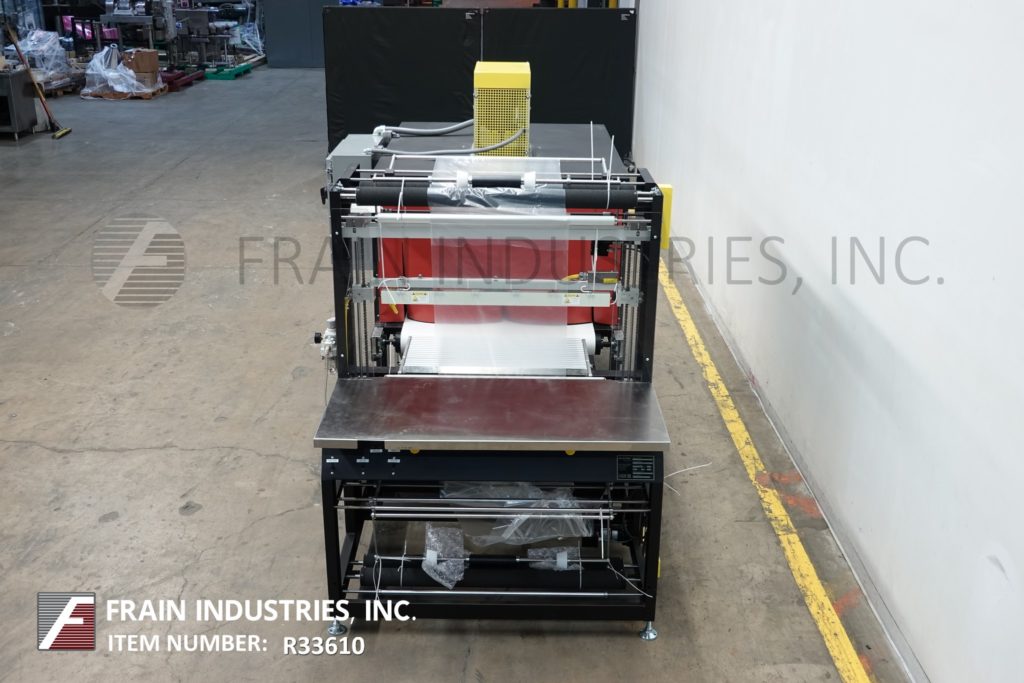

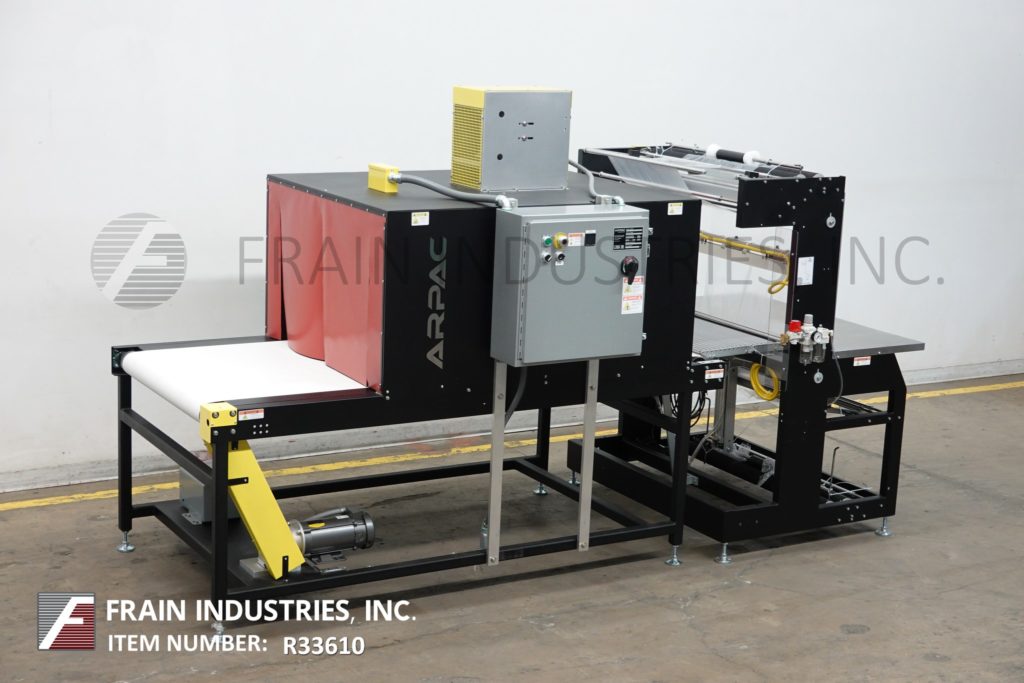

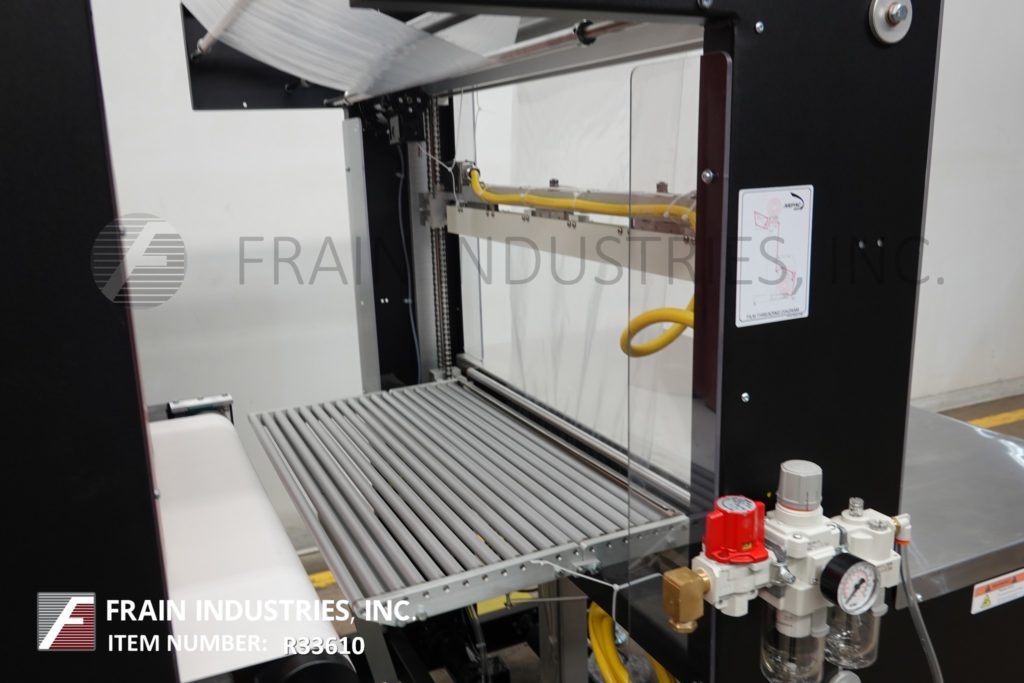

Arpac Shrink Bundler 737C
- Manufacturer: Arpac
- Model Number: 737C
- Frain Number: R33610
Arpac, semi automatic, inline, shrink bundler and tunnel. Rated from 1 to 15 bundles per minute – depending on materials, application and operator dexterity. Product size range: 6" to 18" in Length x 6" to 35" in Width x 6" to 18" in Height. Arpac Model 737C bundler equipped with 37" wide hot knife seal jaws with 20" vertical travel and (2) handed cycle start push buttons and roller transfer conveyor into shrink tunnel, powered film feed and has film specifications of 37" in width up to 14" in diameter on 3" OD core and film type polyethylene or low density polyethylene with film gauge of 1 to 3 mil.
Arpac Model HVP, single zone shrink tunnel with total aperture of 40” in width x 20" in height and has a chamber length of 60" with top mounted blower. Control panel has temperature, variable air flow, variable conveyor speed and e-stops. Capable of running boxes, trays, cartons or any conveyable type product. Mounted on a common frame with leveling legs.
OAD: 141" L x 61" W x 83" H
Get a Free Quote Call: 630-629-9900
Ladish Cleaner CIP/COP 48-2412
- Manufacturer: Ladish
- Model Number: 48-2412
- Frain Number: 5H7241
Ladish, Model 48-2412, (2) tank stainless steel CIP system. Equipped with (2) 38" OD x 48" High approx 230 gallon, single wall tanks. (1) for detergent, (1) for rinse and both have 18" ID top manways with flip up covers, bottoms have 3½" OD / 3"ID Tri-Clamp bottom discharges with 16" floor clearence, tube and shell heat exchanger, stainless steel piping with sanitary couplings flow and pressure control valves, (1) 7½ HP tri-clover centrifugal pump and (1) 1 HP Tri-Clover centrifugal pump. Control Panel has A/B PLC controller with A/B touch screen HMI. Mounted on stainless steel frame.
OAD: 134"L x 75"W x 84"H
Get a Free Quote Call: 630-629-9900
Sani-matic Systems Cleaner CIP/COP CIP2S-25-P-ST
- Manufacturer: Sani-matic Systems
- Model Number: CIP2S-25-P-ST
- Frain Number: R32647
Sani-Matic, Model (2) tank, Stainless steel, CIP system. Equipped with (2) 30" OD x 48" High (125 gallon), stainless steel, single wall tanks, (1) for detergent, (1) for rinse and both have 17" ID top manways with flip up covers, flat tops with (1)" and (2) 2-1/2" sanitary top ports, slant bottoms with 3" OD side bottom discharges with 17" floor clearance 6-1/2" OD x 64" long stainless steel tube and shell heat exchanger with MAWP of 130 psi shell and 150 psi tube @ 375°F and MDMT of shell and tube -20°F @ 150 psi and has a flanged front port with (8) 3/8" bolt holes on 3-1/4" centers, stainless steel piping with sanitary couplings flow and pressure control valves, side mounted centrifugal pump with 2" OD top and 3-1/4" OD front product ports. A/B PLC with touch pad. Mounted on (8) leg stainless steel frame.
OAD: 120" L x 48" W x 82" H
Get a Free Quote Call: 630-629-9900

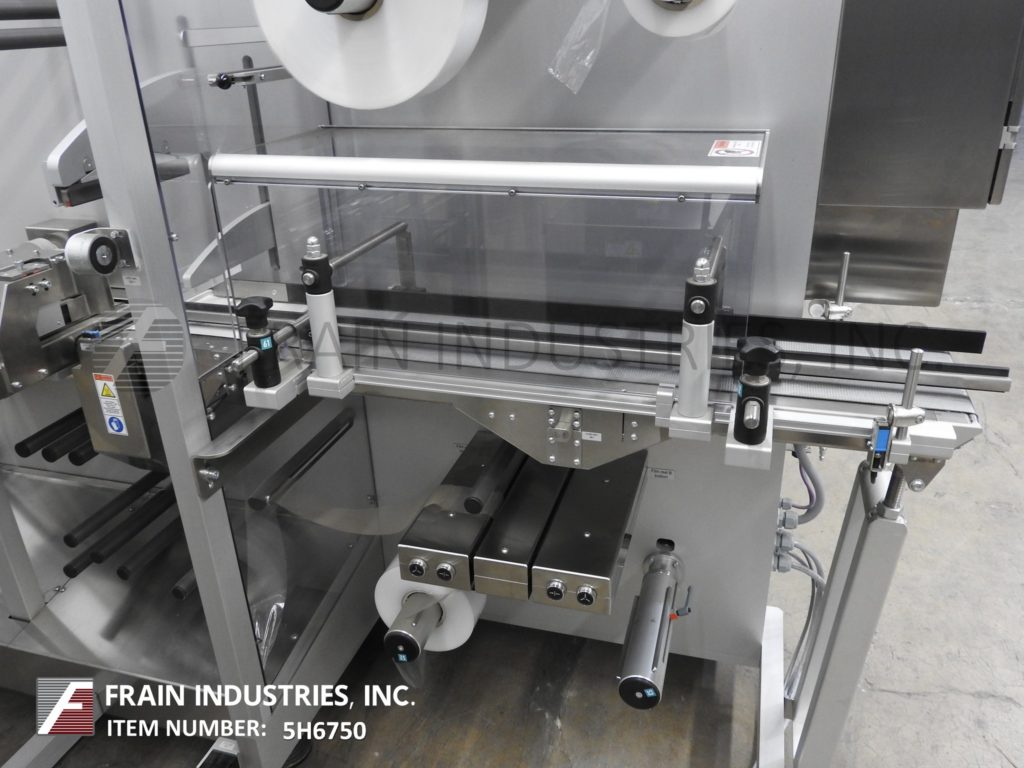

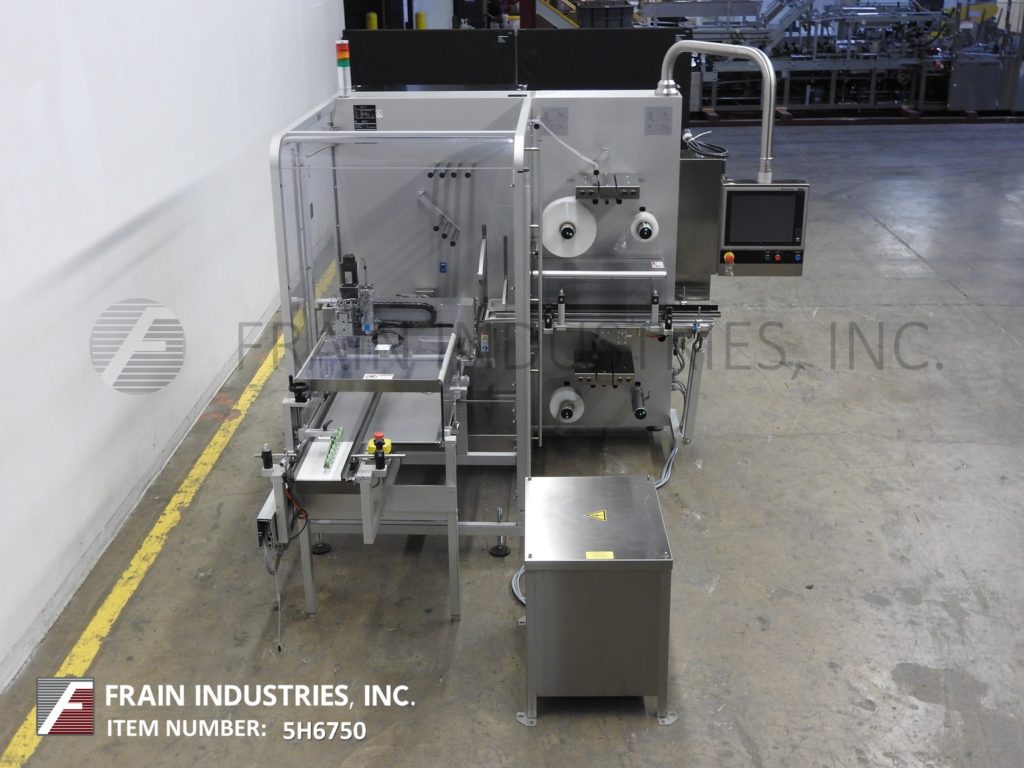

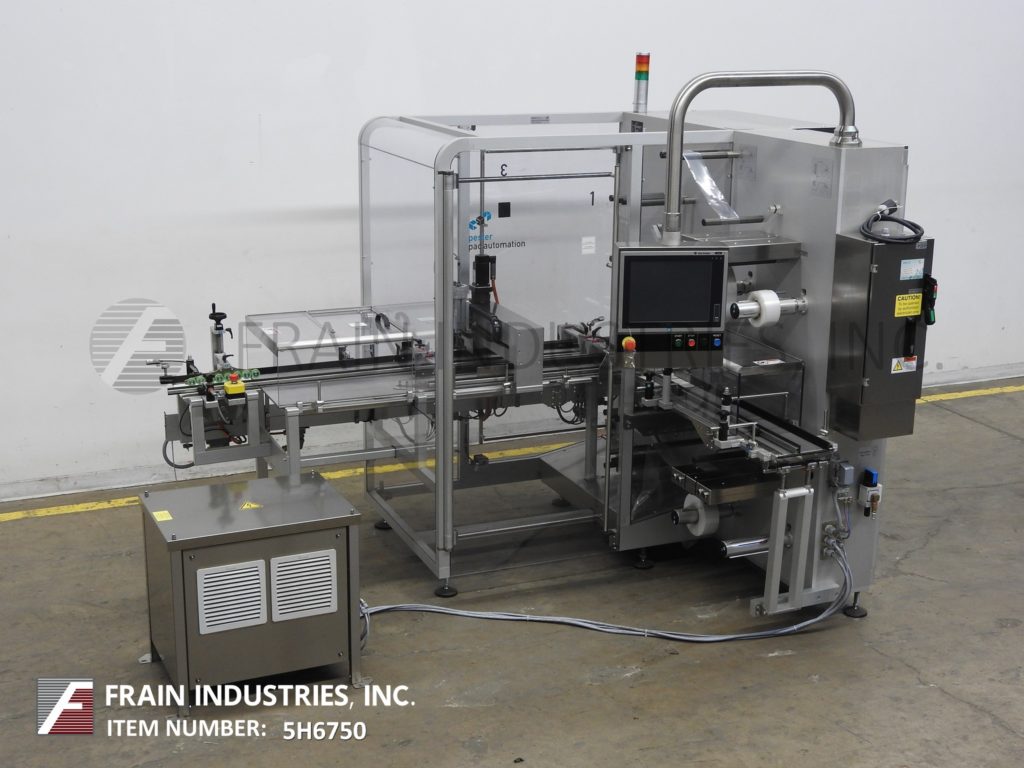

Pester Shrink Bundler PEWOPACK250
- Manufacturer: Pester
- Model Number: PEWOPACK250
- Frain Number: 5H6750
Pester, Model PEWO-pack 250 COMPACT, automatic, inline, stretch bundler. Rated from 10 to 35 bundles per minute – depending on materials and application. Package size range: 20mm to 80mm in Length x 20mm to 80mm in Width x 60mm to 300mm in Height. Equipped with 20" wide x 70" long 90° in feed conveyor with 35" infeed height, overhead 1 to 2 lane pick and place arm, single arm carton flipper, single arm product ram through 10" wide seal jaw. Control panel with AB controller and an AB touchscreen HMI. Mounted on base frame with height adjustable legs, and casters.
OAD: 121" L x 87" W x 93" H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 55GI20
- Manufacturer: Arpac
- Model Number: 55GI20
- Frain Number: R32030
Arpac, Model 55GI-20, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13½" wide x 34" long in feed conveyor, (2) 20" wide film roll holders with film splicing stations, 21" wide walking beam seal jaws with 11" vertical travel and 14" wide x 30" long transfer conveyor to shrink tunnel. 70" long single zone shrink tunnel has 20” wide x 16" high total aperture, 90" long x 20¾" wide Intralox product conveyor, cooling fan and roller side compression on discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 164"L x 52"W x 80"H
Get a Free Quote Call: 630-629-9900
Poly Pack Shrink Flow Thru FIL 24 – 32 CHL
- Manufacturer: Poly Pak
- Model Number: FIL 24 - 32 CHL
- Frain Number: 5H5540
Poly Pack, Model FIL-24-32CHL, In-line, intermittent motion, stainless steel, full shrink wrap closure, shrink wrapping system. Rated from 1 to 25 cycles per minute with number of product and wraps – depending on materials, application and pack pattern. Uses forming head to wrap products rectangle or round and everything from small trays to 12 foot or longer rolls with proper chang parts. Equipped with 106" long x 10" wide product in feed belt conveyor, to vacuum stabilizing belt with product indexing and accumulation section thru fixed product forming plow, has 36" long side film and dancer rollers. Seal jaw and tunnel section has 26" wide teflon coated hot knife sealing jaws, 84" long x 24" wide thru the tunnel roller conveyor with 28" wide x 18" high aperature x 56" long heat shrink chamber with top mounted circulation fan. Control panel has A/B PLC controller with A/B Panview and touch pad controls with readout, seal jaw and tunnel heater controllers, start / stop / e-stop push buttons, cage style safety guarding. Both mounted on stainless steel base frame with leveling legs.
OAD: 189" L x 60" W x 72" H
Get a Free Quote Call: 630-629-9900
Arpac Shrink Bundler 55GI20CX
- Manufacturer: Arpac
- Model Number: 55GI20CX
- Frain Number: 5H5590
Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 28" long in feed conveyor, (2) 20" wide film roll holders with film splicing stations, 21" wide walking beam seal jaws with 11" vertical travel with film roll diameter up to 14" with 3" core and 13" wide x 36" long transfer conveyor to shrink tunnel. 50" long single zone shrink tunnel has 18” wide x 15" high total aperture, 75" long x 20" wide product conveyor and cooling fan discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.
OAD: 150"L x 52"W x 85"H
Get a Free Quote Call: 630-629-9900
