Lee Tank Reactor SS 55CBT

• Manufacturer: Lee
• Model Number: 55CBT
• Frain Number: 5H7598

Lee, 55 Gallon capacity, 316 stainless steel, internal vacuum tank. Vessel dimensions: 28" diameter x 28" deep with a 21" straight wall. Equipped with tilt off bolt down lid and 2"OD / ¾"ID Tri-Clamp style discharge with 17" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(1) 10½"OD / 9¾"ID Tri-Clamp
(1) 6½"OD / 5¾"ID Tri-Clamp
(4) 3½"OD / 3"ID Tri-Clamp
(2) 2"OD / ¾"ID Tri-Clamp

MAWP: 5PSI / FV @ 227°F (Vessel)
MDMT: -20°F @ 5PSI / FV (Vessel)

OAD: 57"L x 46"W x 56"H

Lee Tank Reactor SS 400LDBT

• Manufacturer: Lee
• Model Number: 400LDBT
• Frain Number: 5H6491

Lee, 400 Liter capacity, 316 stainless steel, insulated vacuum and internal pressure reaction tank. Vessel dimensions: 30" diameter x 44" deep with a 38" straight wall. Equipped with 12" diameter bolt down manway, CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting, flush mounted sensor, thermowell and 2"OD / 1½"ID Tri-Clamp style discharge with 23" ground clearance. Mounted on (4) stainless steel legs.

Top Ports:
(6) 2"OD / 1½"ID Tri-Clamp

Nat’l Brd: 5976
MAWP: 50 PSI @ 300°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

OAD: 40"L x 38"W x 88"H

Lee Tank Reactor SS 1000LDBT

• Manufacturer: Lee
• Model Number: 1000LDBT
• Frain Number: 5H6492

Lee, 1000 Liter capacity, 316 stainless steel, vacuum and internal pressure reaction tank. Vessel dimensions: 48" diameter x 50" deep with a 42" straight wall. Equipped with 16" diameter bolt down manway, bottom prop agitation powered by a ¾ hp drive and 2"OD / 1½"ID Tri-Clamp style discharge with 18" ground clearance. Mounted on (4) stainless steel legs.

Top Ports:
(1) 6" ID Flange
(1) 3" ID Flange
(1) 1½"ID Flange
(3) 1" ID Flange

Side Ports: (1) 3"ID Flange

Nat’l Brd: 5981
MAWP: 50 PSI @ 150°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

OAD: 56"L x 50"W x 105"H

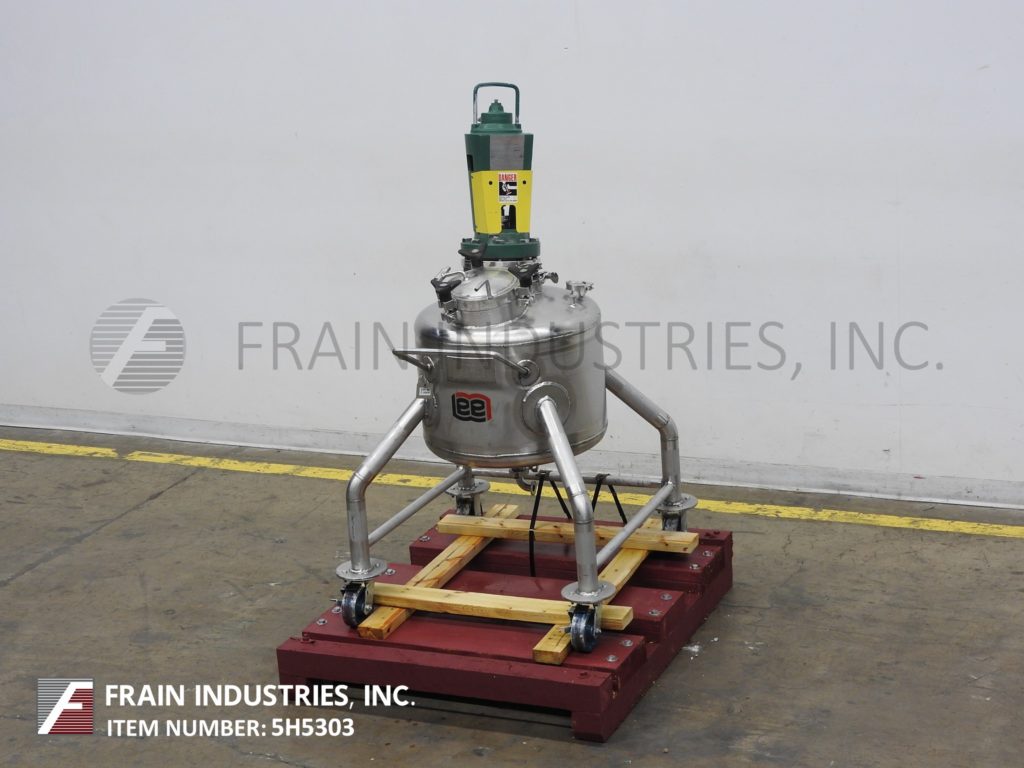

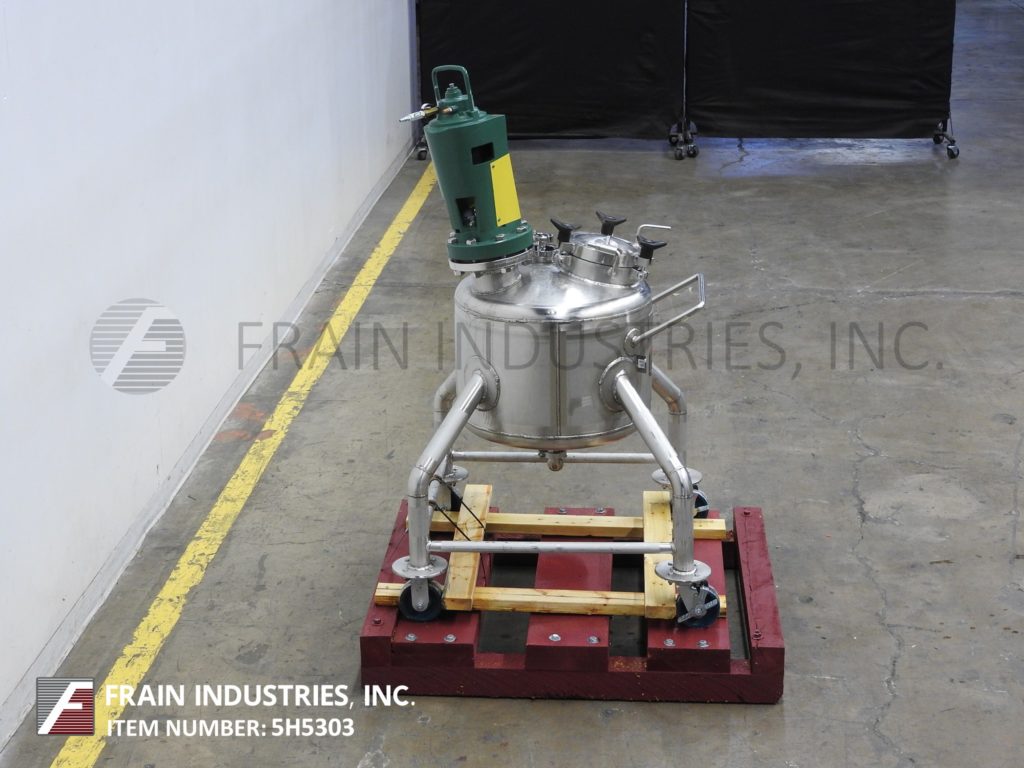

Lee Tank Reactor SS 100LSS

• Manufacturer: Lee
• Model Number: 100LSS
• Frain Number: 5H5303

Lee, 100 Liter capacity, 316 stainless steel, internal pressure reaction tank. Vessel dimensions: 23" diameter x 18" deep with a 13" straight wall. Equipped with 8" diameter bolt down manway, pneumatic powered prop agitation and 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 15 PSI @ 250°F (Vessel)
MDMT: -20°F @ 15 PSI (Vessel)

OAD: 36"L x 36"W x 64"H

Lee Tank Reactor SS 100LSS

• Manufacturer: Lee
• Model Number: 100LSS
• Frain Number: 5H5304

Lee, 100 Liter capacity, 316 stainless steel, internal pressure reaction tank. Vessel dimensions: 23" diameter x 18" deep with a 13" straight wall. Equipped with 8" diameter bolt down manway, pneumatic powered prop agitation and 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 15 PSI @ 250°F (Vessel)
MDMT: -20°F @ 15 PSI (Vessel)

OAD: 36"L x 36"W x 64"H

Lee Tank Reactor SS 100LSS

• Manufacturer: Lee
• Model Number: 100LSS
• Frain Number: 5H5302

Lee, 100 Liter capacity, 316 stainless steel, internal pressure reaction tank. Vessel dimensions: 23" diameter x 18" deep with a 13" straight wall. Equipped with 8" diameter bolt down manway, pneumatic powered prop agitation and 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 15 PSI @ 250°F (Vessel)
MDMT: -20°F @ 15 PSI (Vessel)

OAD: 36"L x 36"W x 64"H

Feldmeier Tank Reactor SS TK115

• Manufacturer: Feldmeier
• Model Number: TK115
• Frain Number: 5H2851

Feldmeier, 150 Gallon capacity, 316L stainless steel, insulated, internal vacuum tank. Vessel dimensions: 36" diameter x 42" deep with a 35" straight wall. Equipped with (1) thermowell, CIP spray ball supplied by a 2"OD / ¾"ID Tri-Clamp fitting, 4" diameter sight glass with lamp, 1¾ HP bottom mounted prop agitation and plug valve with 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance.

Top Ports:
(1) 10½"OD / 9½"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(3) 2"OD / 1½"ID Tri-Clamp

MAWP: 50 PSI @ 350°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

Vac: FV (Vessel)

Nat’l Brd: 3784

OAD: 48"L x 43"W x 68"H

Feldmeier Tank Reactor SS TK110

• Manufacturer: Feldmeier
• Model Number: TK110
• Frain Number: 5H2854

Feldmeier, 60 Gallon capacity, 316L stainless steel, insulated, internal vacuum tank. Vessel dimensions: 24" diameter x 36" deep with a 32" straight wall. Equipped with (1) thermowell, CIP spray ball supplied by a 2"OD / ¾"ID Tri-Clamp fitting, 4" diameter sight glass with lamp, 1¾ HP bottom mounted prop agitation and plug valve with 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance.

Top Ports:
(1) 6½"OD / 5½"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(3) 2"OD / 1½"ID Tri-Clamp

MAWP: 50 PSI @ 350°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

Vac: FV (Vessel)

Nat’l Brd: 3783

OAD: 35"L x 32"W x 61"H

Precision Stainless Tank Reactor SS 350L

• Manufacturer: Precision Stainless
• Model Number: 350L
• Frain Number: 5G8346

Precision Stainless, 350 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 32" diameter x 32" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation powered by a ¾ hp drive and bottom center 2" OD / 1" ID Tri-clamp style discharge with 15" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(3) 4¾"OD / 3¾"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6905

OAD: 40"L x 40"W x 65"H

Precision Stainless Tank Reactor SS 350L

• Manufacturer: Precision Stainless
• Model Number: 350L
• Frain Number: 5G8345

Precision Stainless, 350 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 32" diameter x 32" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation powered by a ¾ hp drive and bottom center 2" OD / 1" ID Tri-clamp style discharge with 15" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(3) 4¾"OD / 3¾"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6897

OAD: 40"L x 40"W x 65"H

Precision Stainless Tank Reactor SS 350L

• Manufacturer: Precision Stainless
• Model Number: 350L
• Frain Number: 5G8343

Precision Stainless, 350 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 32" diameter x 32" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation powered by a ¾ hp drive and bottom center 2" OD / 1" ID Tri-clamp style discharge with 15" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(3) 4¾"OD / 3¾"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6905

OAD: 40"L x 40"W x 65"H

Precision Stainless Tank Reactor SS 80L

• Manufacturer: Precision Stainless
• Model Number: 80L
• Frain Number: 5G8340

Precision Stainless, 80 liter capacity, 316L stainless steel jacketed and insulated vacuum process tank. Vessel dimensions: 18" diameter x 21" straight wall. Equipped with bolt down dome top, top mounted light and sight glass, 6" diameter manway with lift up lid, (1) thermo well, (1) CIP spray ball with 2"OD / ¾"ID Tri-clamp connection, dish bottom, bottom magnetic drive prop agitation and bottom center 2" OD / ¾" ID Tri-clamp style discharge with 18" ground clearance. Mounted on (3) tubular legs.

Jacket Ports:
(2) 3½"OD / ½"ID 4-bolt flange

Top Ports:
(1) 2½"OD / 2"ID Tri-clamp
(1) 2"OD / 1¼"ID Tri-clamp
(3) 2"OD / ¾"ID Tri-clamp
(1) 1"OD / (3/8)"ID Tri-clamp

Side Ports:
(1) 1"OD / (3/8)"ID Tri-clamp

MAWP: 65 PSI @ 266°F (HTS)
MDMT: -20°F @ 65 PSI (HTS)

MAWP: 50 PSI @ 266°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)
Vac: 15 PSI (Vessel)

Nat’l Brd: 6158

OAD: 28"L x 30"W x 56"H
