Stainless Steel Single Wall Machines
Used Stainless Steel Single Wall Equipment
Tank SS Single Wall is a classification of tanks fabricated from stainless steel but lack no insulation or jackets for heat transfer. SS single wall tanks may have agitators and these can be from simple propellers to fully scraped or bottom swept agitators.
Related Categories
Stainless Steel Single Wall Equipment In Stock
Northland Stainless Inc Tank SS Single Wall 528 GAL
- Manufacturer: Northland Stainless Inc
- Model Number: 528 GAL
- Frain Number: 5G1976
Northland Stainless Steel Inc, 2000 Liter, 528 gallon, 316 stainless steel, single wall, with full vacuum and 50 psi internal pressure mixing tank. Vessel dimensions: 48" ID x 66" straight wall. Equipped with dome top, 16" ID bolt down man way, top flange mounted prop style mixer has 9" OD flange with (8) 3/4" bolt holes on 3-1/2" centers, also (3) 2-1/2", (1) 2", (1) 3" and (2) 5" OD sanitary top ports with CIP spray balls. Full side and bottom full Internal pressure rating of: MAWP 50 psi @ 300 Deg F and MDMT of -20 Deg F @ 50 psi. Dish bottom has 2" OD staintary center bottom discharge valve with 24" floor clearance without valve 30" floor clearence and mounted on (3) stainless steel legs. UL Rated and National Board # 821
OAD: 54" Diameter x 138" High
Get a Free Quote Call: 630-629-9900

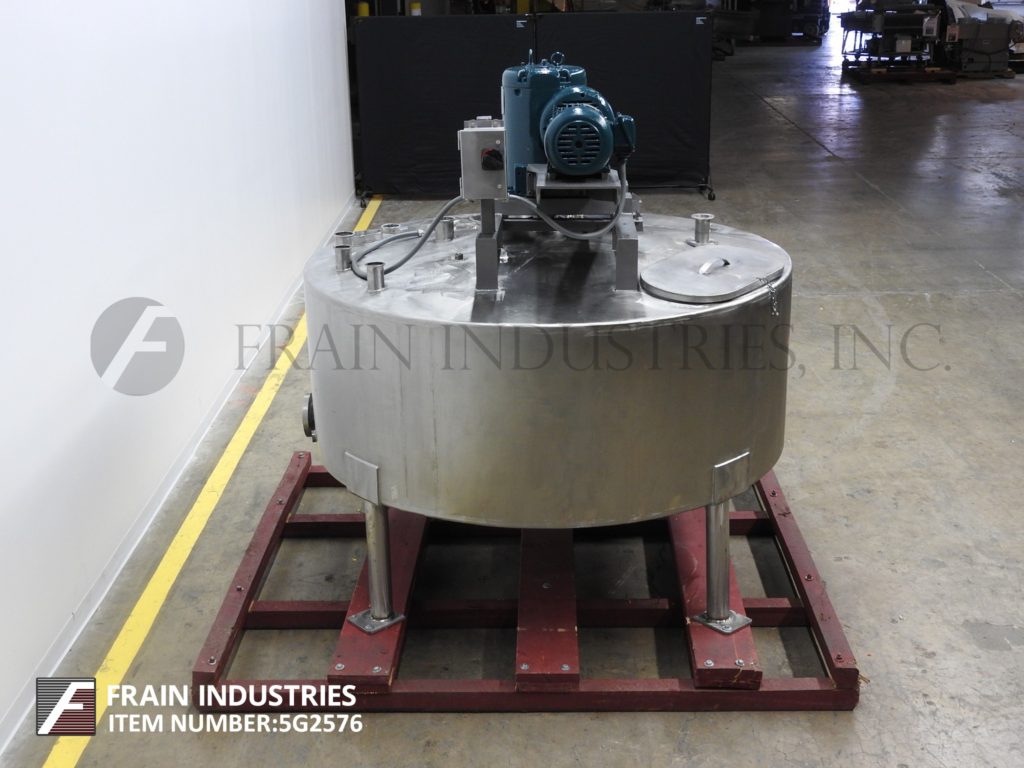

C E Howard Tank SS Single Wall 600 GALLON
- Manufacturer: C E Howard
- Model Number: 600 GALLON
- Frain Number: 5G2576
C.E. Howard, 600 gallon, 304 stainless steel, single wall tank. 79" diameter x 30" straight wall. Equipped with a 5 HP drive powering a single motion five-paddle prop style mixer. Vessel has a dome top with (1) 6"ID, (1) 5"ID, (1) 4"ID, (1) 2¾"ID, (1) 2½"ID open vents. (3) 3½"OD/2¾"ID, (2) 3"OD/2¼"ID, (1)2½"OD/1¾"ID tri-clamp fittings and (3) 3/4” threaded inlets; as well as (1) 26" x 14" oval shaped man way with lift off lid. The sidewall has (2) 2½"OD/1¾"ID tri-clamp ports. Slant bottom has (1) 8" diameter six bolt pattern flange discharge with 18" ground clearance. Mounted on (4) stainless steel legs.
OAD: 83"L x 80"W x 90"H
Get a Free Quote Call: 630-629-9900

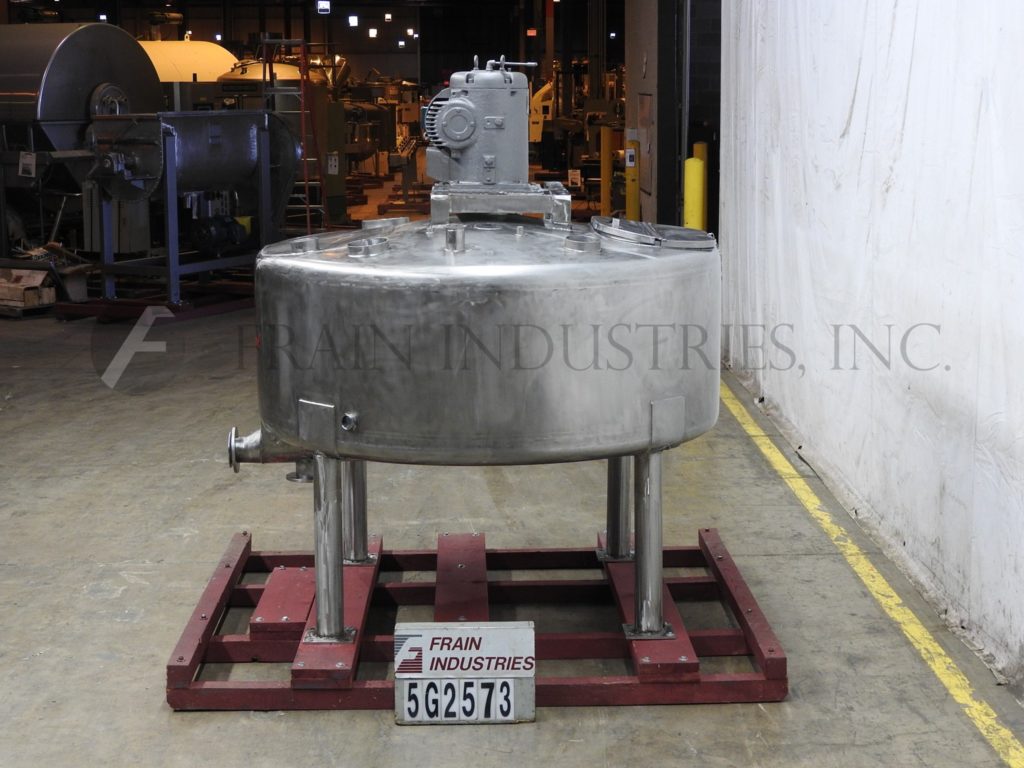

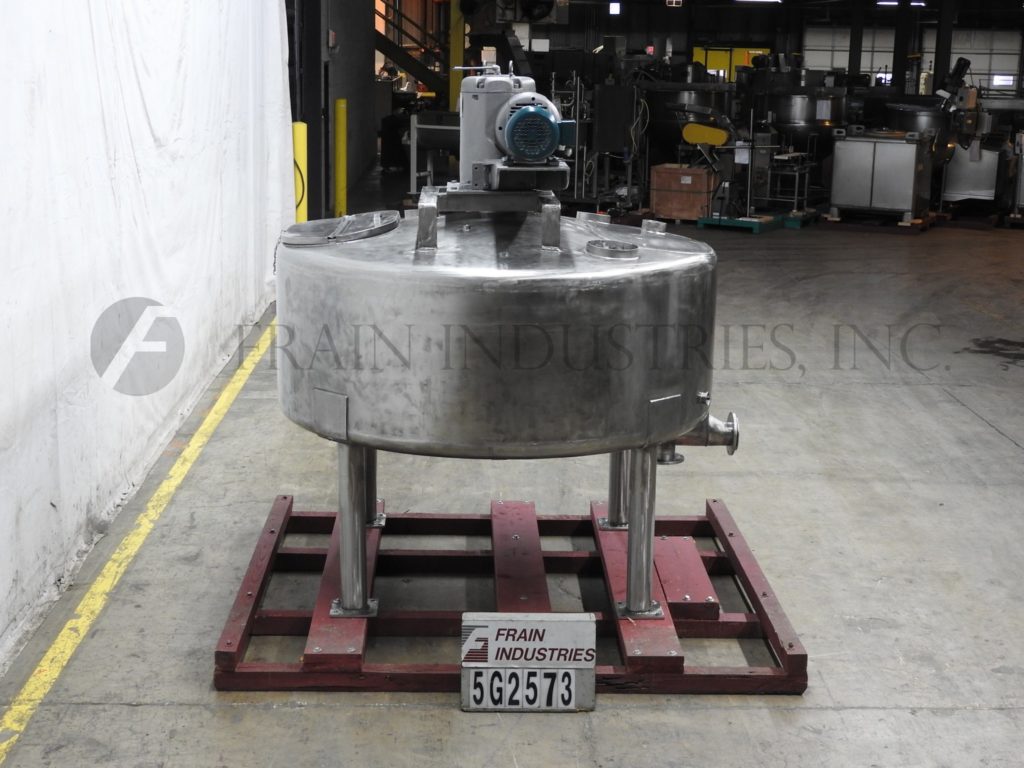

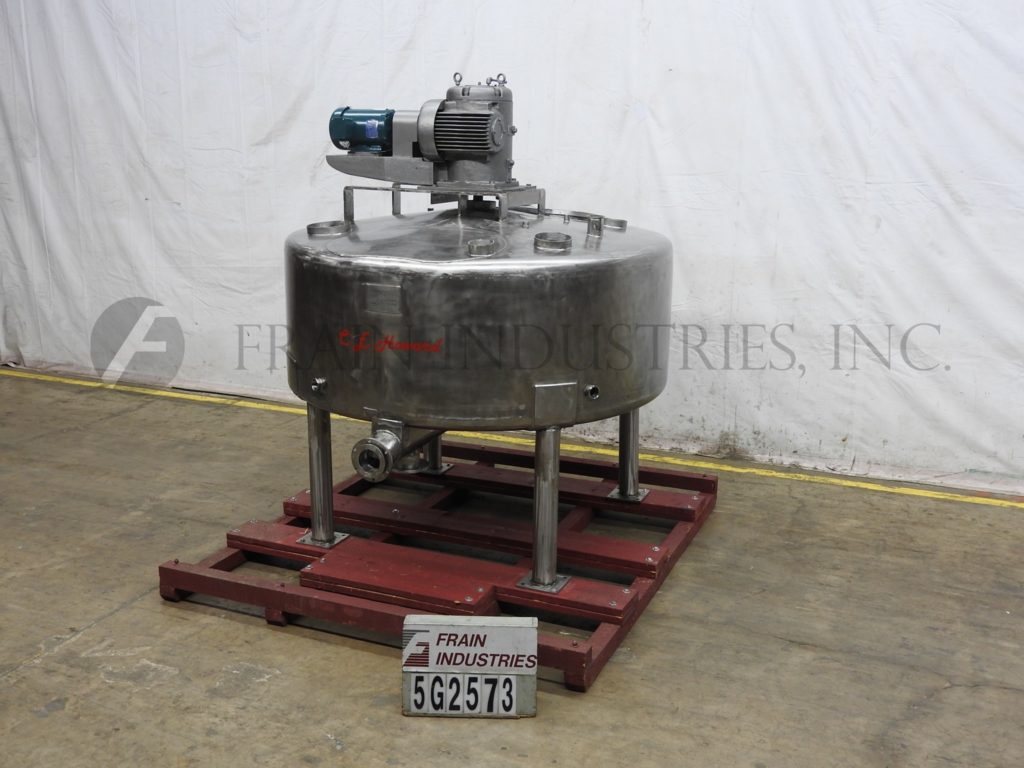

C E Howard Tank SS Single Wall 600 GALLON
- Manufacturer: C E Howard
- Model Number: 600 GALLON
- Frain Number: 5G2573
C.E. Howard, 600 gallon, 304 stainless steel, single wall tank. 79" diameter x 30" straight wall. Equipped with a 5 HP drive powering a single motion eight-paddle prop style mixer mounted on a 18" long x 18" wide platform above center of tank. Vessel has a dome top with (1) 8.5"ID, (1) 6.5"ID, (1) 5.5"ID, (1) 4.25"ID, (1) 3"ID ports and (1) 3/4” threaded inlet as well as (1) 30" x 18" oval shaped man way with lift off lid and CIP spray nozzle. The sidewall has (2) 2"ID ports. Slant bottom has (1) 8" diameter six bolt pattern flange discharge with 18" ground clearance. Mounted on (4) stainless steel legs.
OAD: 86"L x 80"W x 75"H
Get a Free Quote Call: 630-629-9900

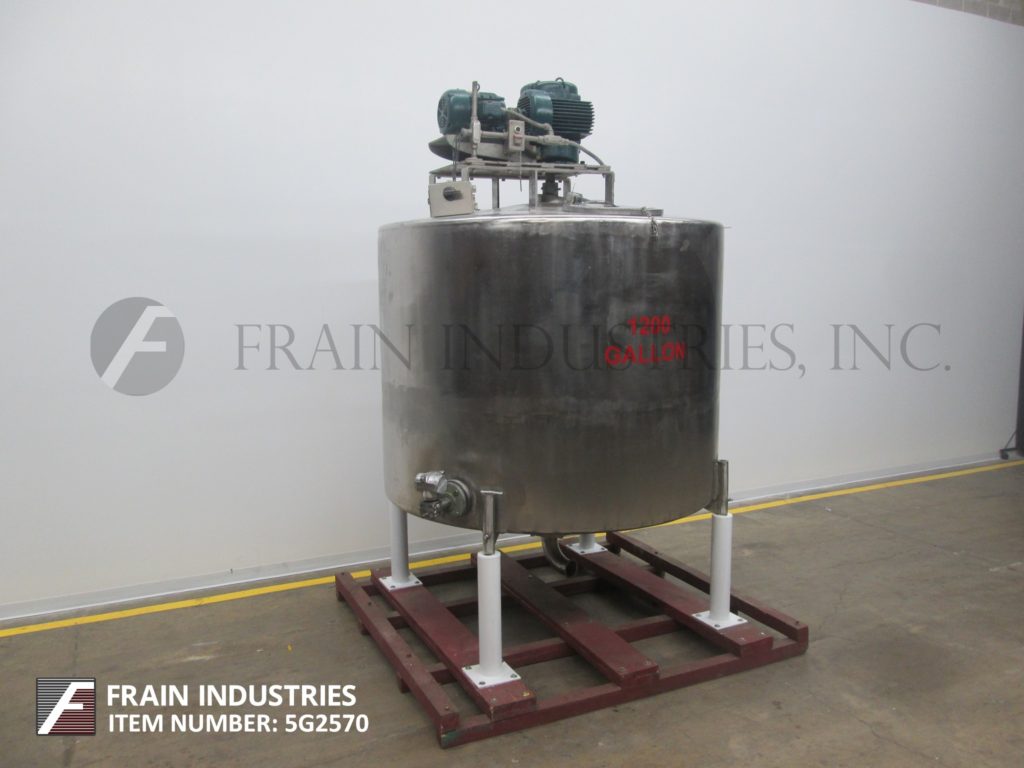

Tank SS Single Wall 1200 GALLON
- Model Number: 1200 GALLON
- Frain Number: 5G2570
Langsenkamp, 1200 gallon, 304 stainless steel single wall tank. 78" diameter x 62" straight wall. Equipped with a single motion dual six-paddle prop style mixer mounted above center of tank. Vessel has a dome top with (1) 19" diameter man way, (2) 6"ID vents and (2) 1" threaded CIP attachments. Dish bottom has (1) 3¾"ID/4½OD tri-clamp style fitting with 8" ground clearance. Mounted on (4) stainless steel legs.
OAD: 98" L x 95" W x 125" H
Get a Free Quote Call: 630-629-9900

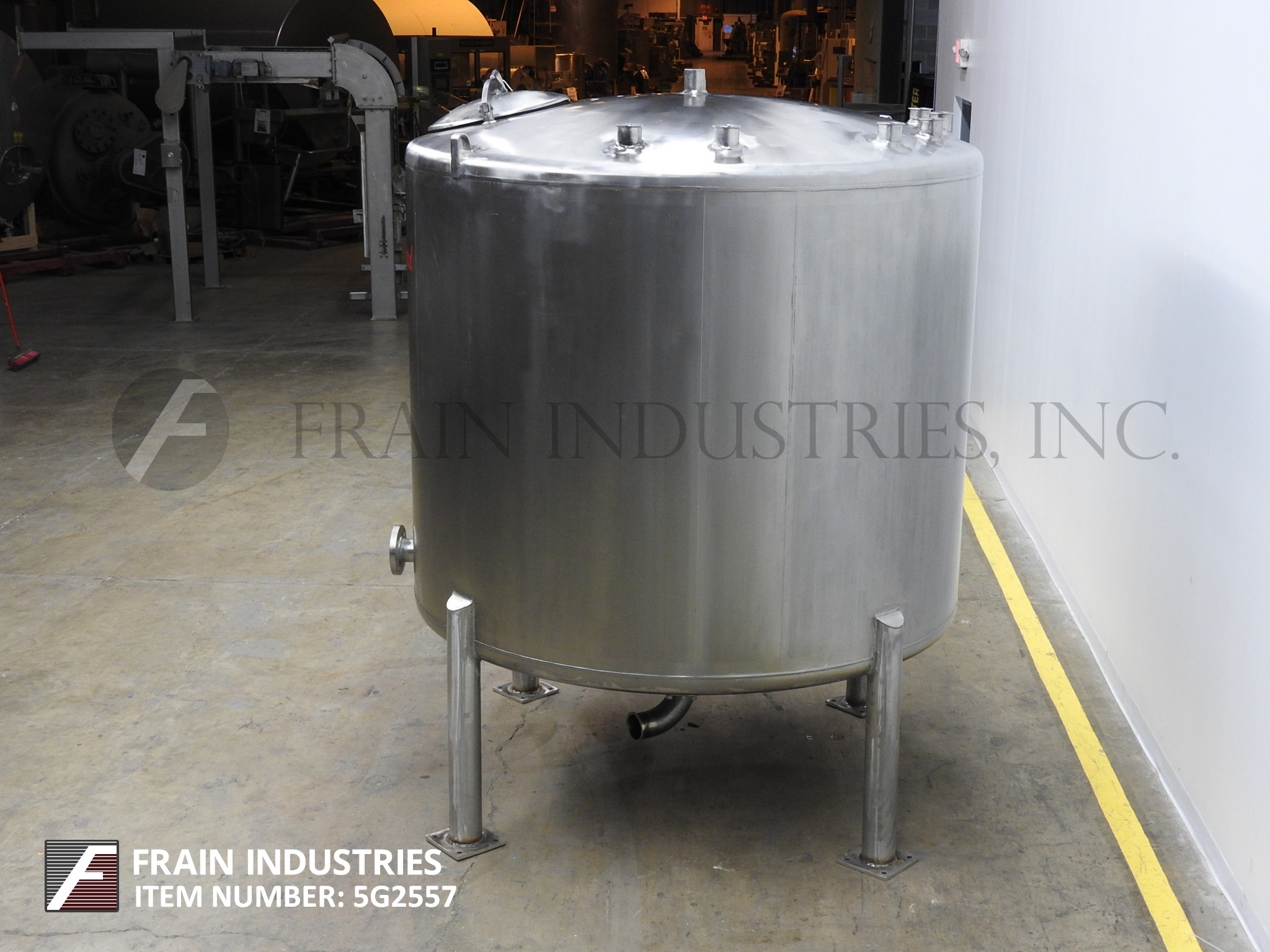

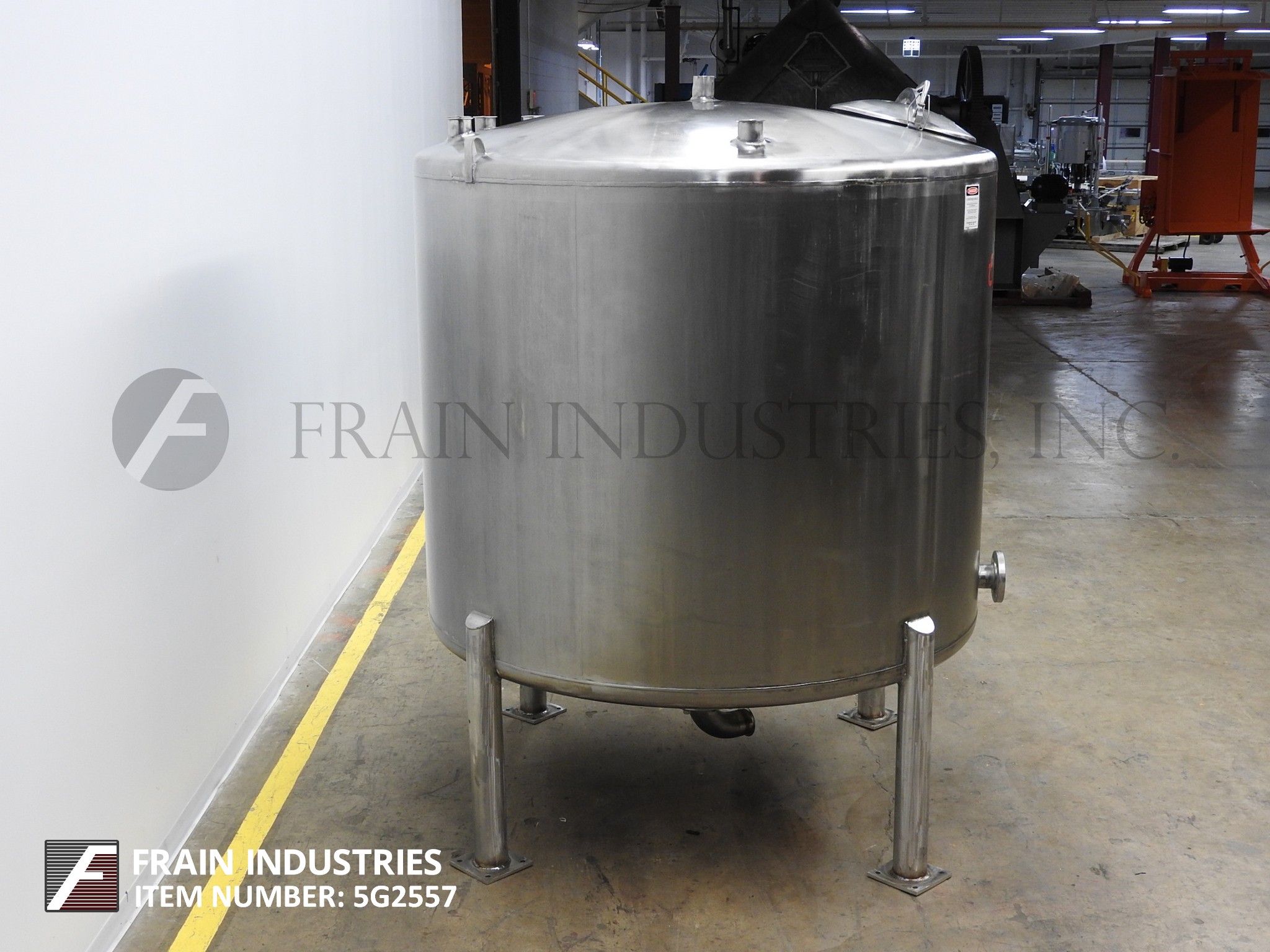

C E Howard Tank SS Single Wall 1300GAL
- Manufacturer: C E Howard
- Model Number: 1300GAL
- Frain Number: 5G2557
C E Howard 1300 gallon 316 stainless steel, single wall tank. Vessel dimmetions 78" diameter x 65" straight wall. Dome top equipped with 18" man way, (7) 3.5"OD 2.75"ID tri-clamp sanitary fittings and (1) 2.75"ID open vent. Bottom of the sidewall has (1) 7.5"OD 3"ID 4 bolt pattern flange with 4" centers. Dish bottom has (1) 11"OD 6"ID eight bolt pattern flange with 3.5" centers and 18" ground clearance. Mounted on (4) stainless steel legs.
OAD: 83"L x 79"W x 102"H
Get a Free Quote Call: 630-629-9900

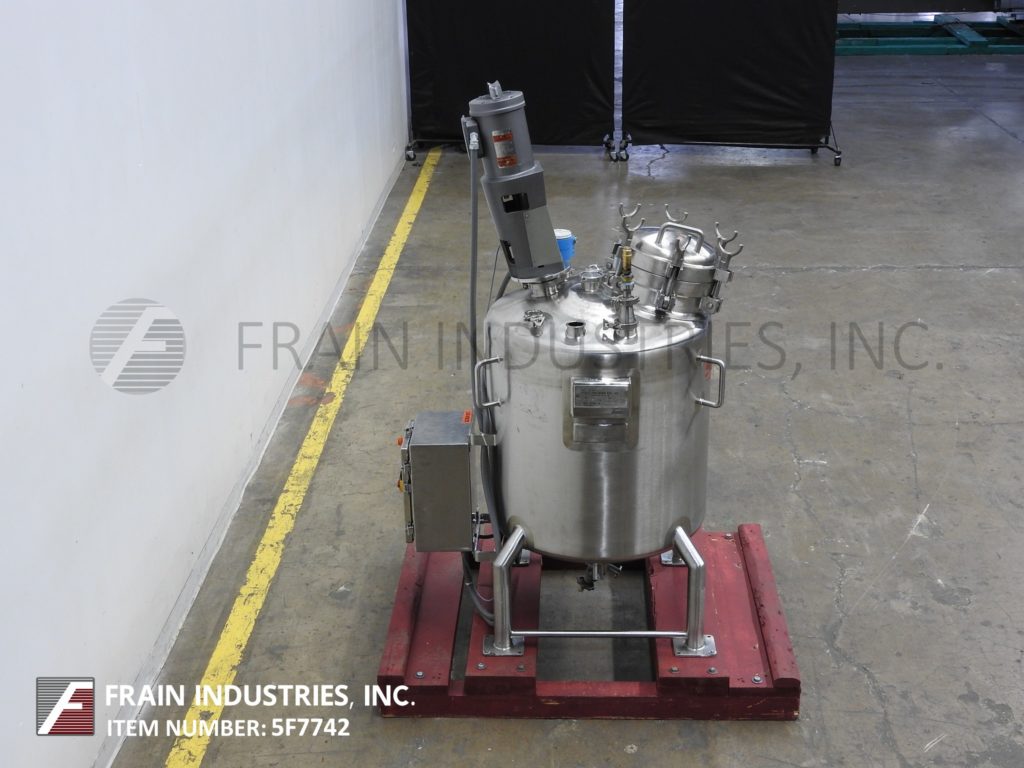

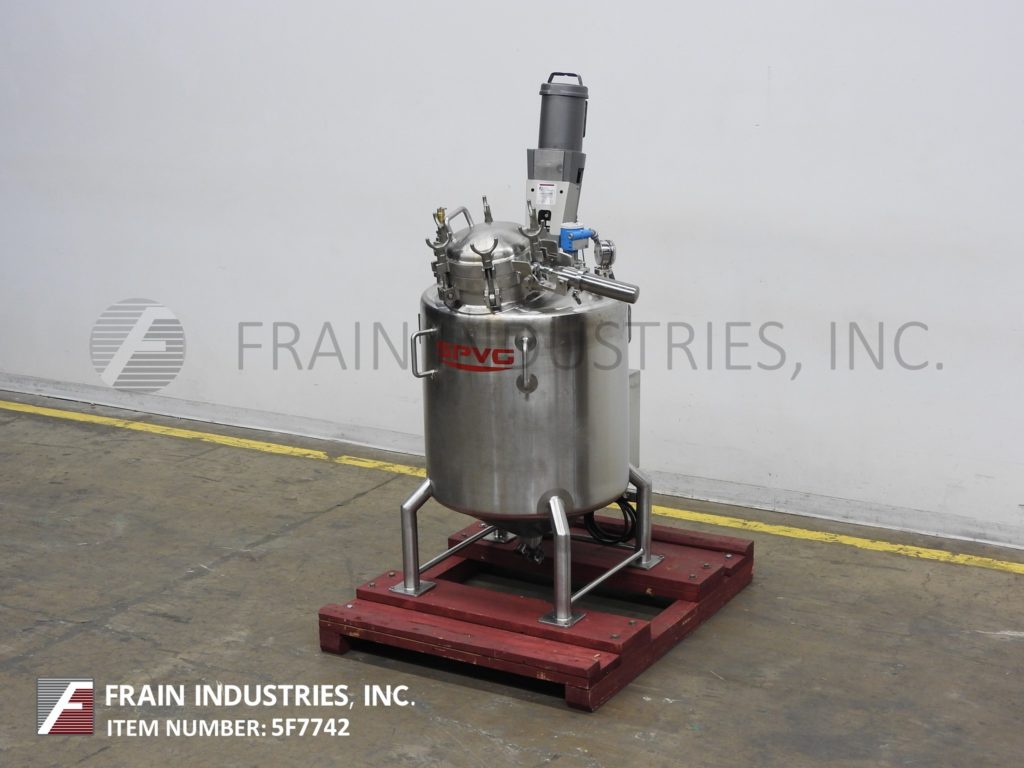

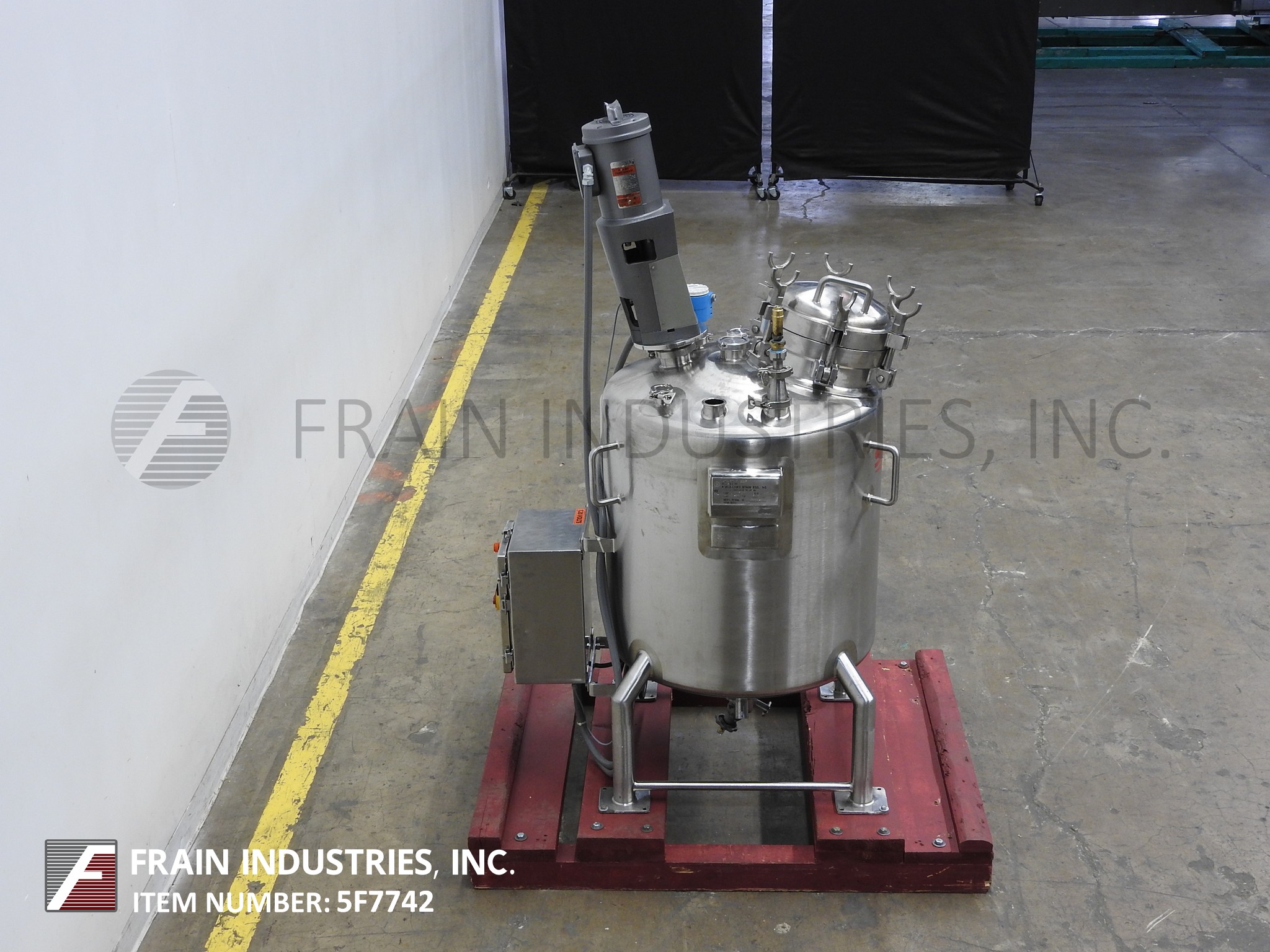

Northland Stainless Inc Tank SS Single Wall 50 GALLON
- Manufacturer: Northland Stainless Inc
- Model Number: 50 GALLON
- Frain Number: 5F7742
Northland, 50 gallon, 316L stainless steel, mix vessel. Dimensions: 24" OD; 29" Straight Wall. Internal rating of MAWP of 50 psi @ 365 Deg F. MDMT of -20 Deg F @ 50 psi. Equipped with dome top, flip top / bolt down 12" ID manway, Lightnin prop style agitator, A/B variable speed drive, (3) 2-1/2" OD, (3) 2" OD and (1) 3" OD sanitary top port. Dish bottom with 2-1/2" OD center bottom sanitary discharge with flush mount valve at 9" floor clearance. Mounted on (4) stainless steel legs with casters.
OAD: 48" L x 36" W x 82" H
Get a Free Quote Call: 630-629-9900
Walker Tank SS Single Wall 1600 GALLON
- Manufacturer: Walker
- Model Number: 1600 GALLON
- Frain Number: 5F6761
Walker, 1600 gallon, 316 stainless steel single wall, mixing tank. Vessel dimensions: 96" inner diameter by 46" straight wall. Equipped with dome top with 22" ID man way with lift off cover, bridge mounted side and bottom sweep agitation, stationary baffle, CIP spray ball and (3) 4" (2) 2-1/2" (1) 1-1/2" top sanitary ports and (1) inhalation port with vented cover. Slant bottom has 4" OD side bottom discharge with 12" floor clearance and side mounted access ladder. Mounted on (4) stainless steel legs.
OAD: 115" L x 101" W x 106" H
Get a Free Quote Call: 630-629-9900

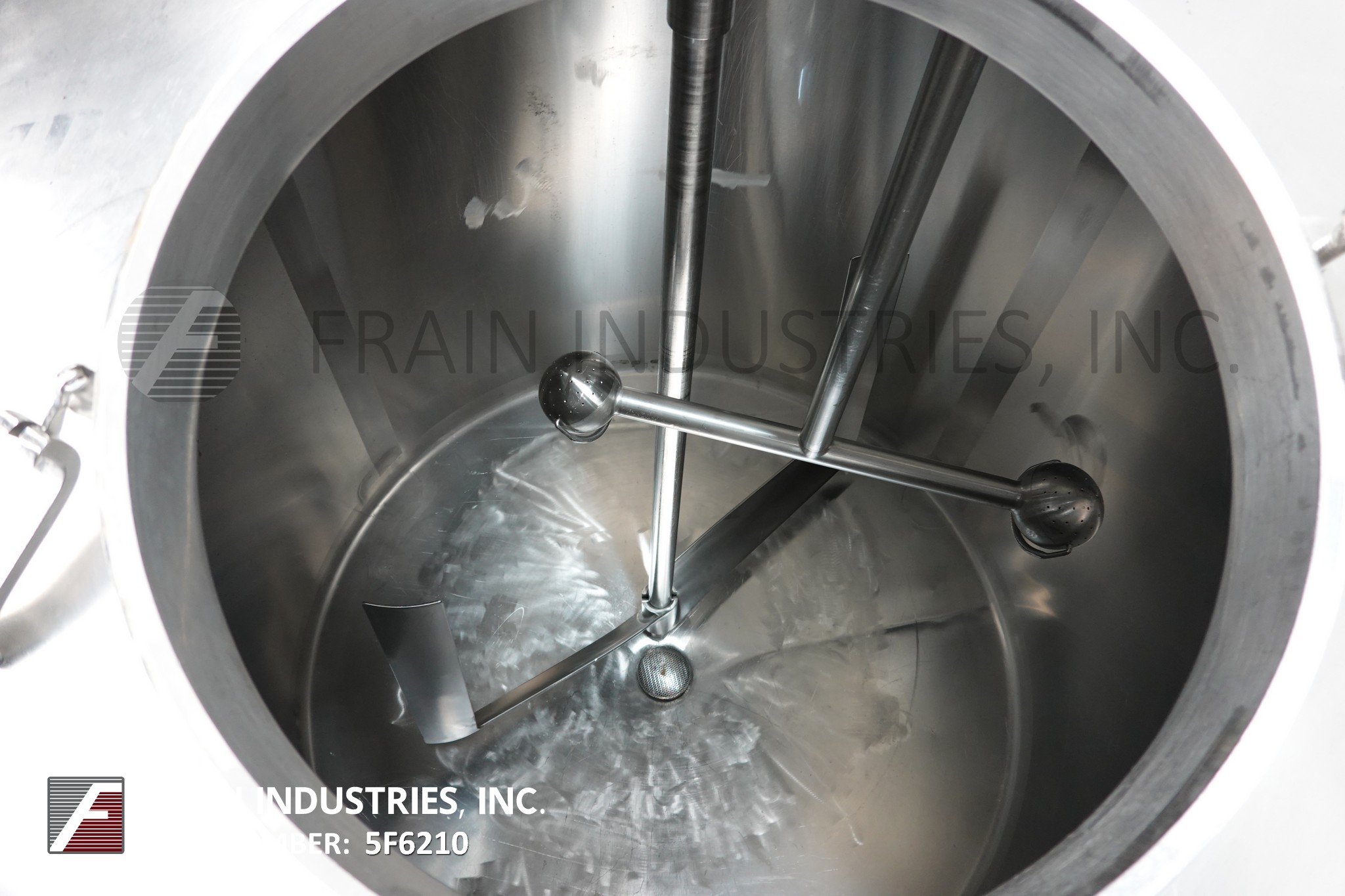

Walker Tank SS Single Wall MIX SP-18689-C
- Manufacturer: Walker
- Model Number: MIX SP-18689-C
- Frain Number: 5F6210
Walker, 500 gallon, 304 stainless steel, single wall, mixing tank. Vessel dimensions: 60" in Diameter; 48" Straight Wall. Temperature rating: up to 250° F. Equipped with an 18" man way with bolt down cover, two 2" OD Tri-Clover top inlets, one 1.5" OD Tri-Clover top inlet, sweep agitator, dual spray ball system, dish bottom with 4" OD Tri-Clover center bottom discharge. Mounted on three stainless steel legs.
OAD: 60" L x 60" W x 118" H
Get a Free Quote Call: 630-629-9900
