Feeder Machines

Acrison Feeder Auger 1015

• Manufacturer: Acrison
• Model Number: 1015
• Frain Number: 5H4315

Acrison, Model 1015-B, auger feeder. Rated from 0.06 to 19 FT³ of product per hour – depending on materials, application and machine configuration. Equipped with 16" long x 14" wide x 14" deep product hopper with level sensor, safety grid and clamp down cover. 11" long x 6" wide mixing chamber with ½" OD x 30" long screw feeder. Control panel has vari-speed controller and statis light. Mounted on (4) leg cart with casters.

OAD: 65"L x 24"W x 80"H

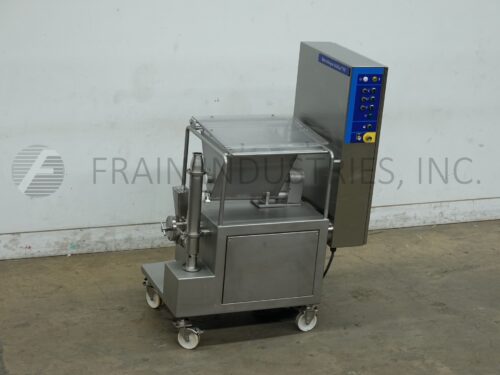

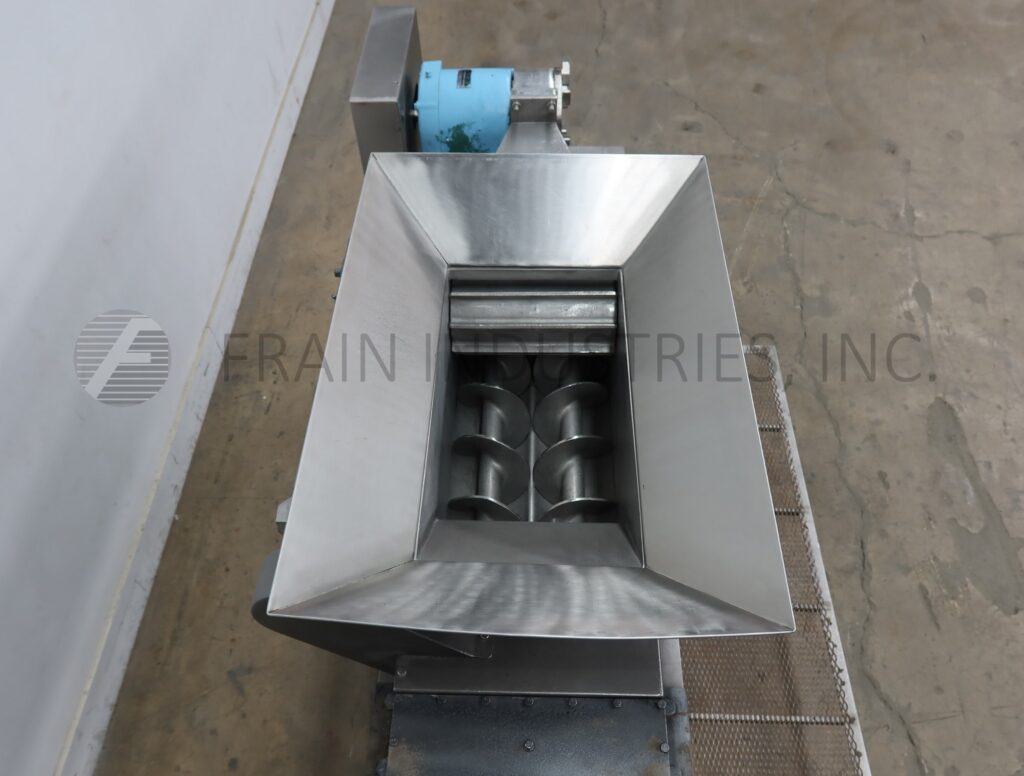

Doering Feeder Auger 3PFL

• Manufacturer: Doering
• Model Number: 3PFL
• Frain Number: 5J5644

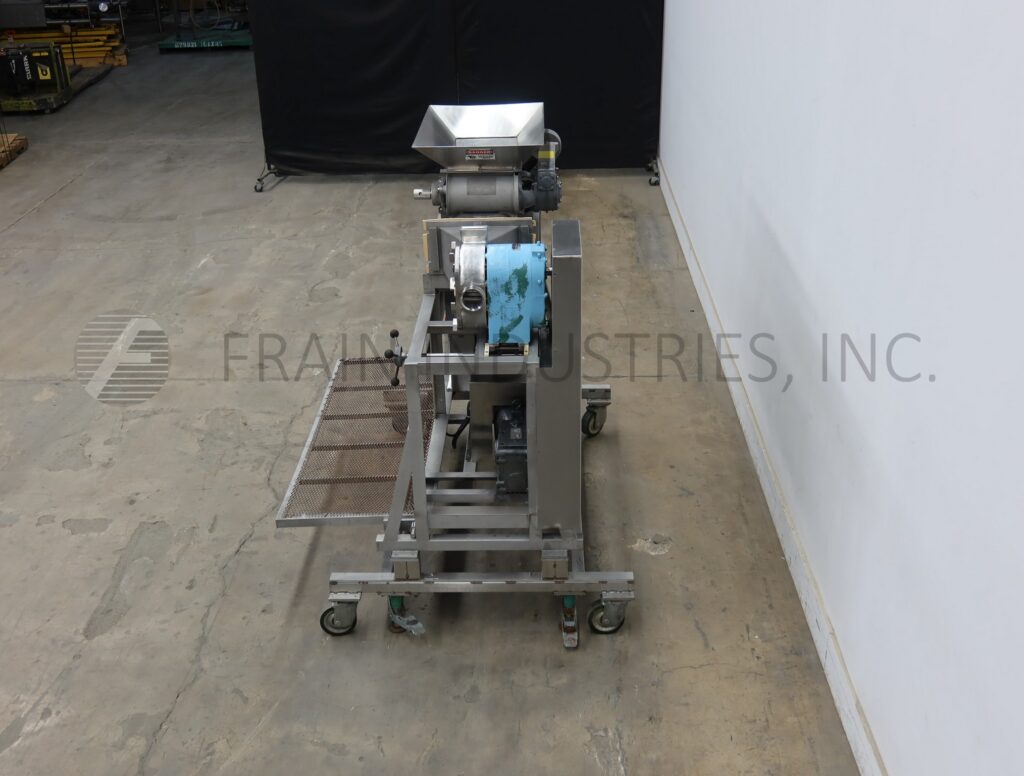

Doering, Model 3PFL, 304 stainless steel, variable speed, twin screw pump feeding system. Product viscosity: up to 1,000,000 CPS. Rates dependent on materials, application and machine configuration. Pump rates of between 11.1 GPM to 54.9 GPM depending on RPM. Equipped with a stainless steel product hopper (Hopper dimensions: Top 30½" x 21"; Bottom 20½" x 11"; 5½" Deep) with an infeed height of 72", (2) 5½" diameter x 25" long stainless steel feeding screws and transition rotors powered by a common 1½ hp drive with variable speed gearbox. Discharge is through a 1½ hp lobe pump with a variable speed gerarbox with a 3" ID seated bevel port with 54¾" discharge height. Mounted on stainless steel frame with locking casters.

OAD: 74"L x 59"W x 72"H

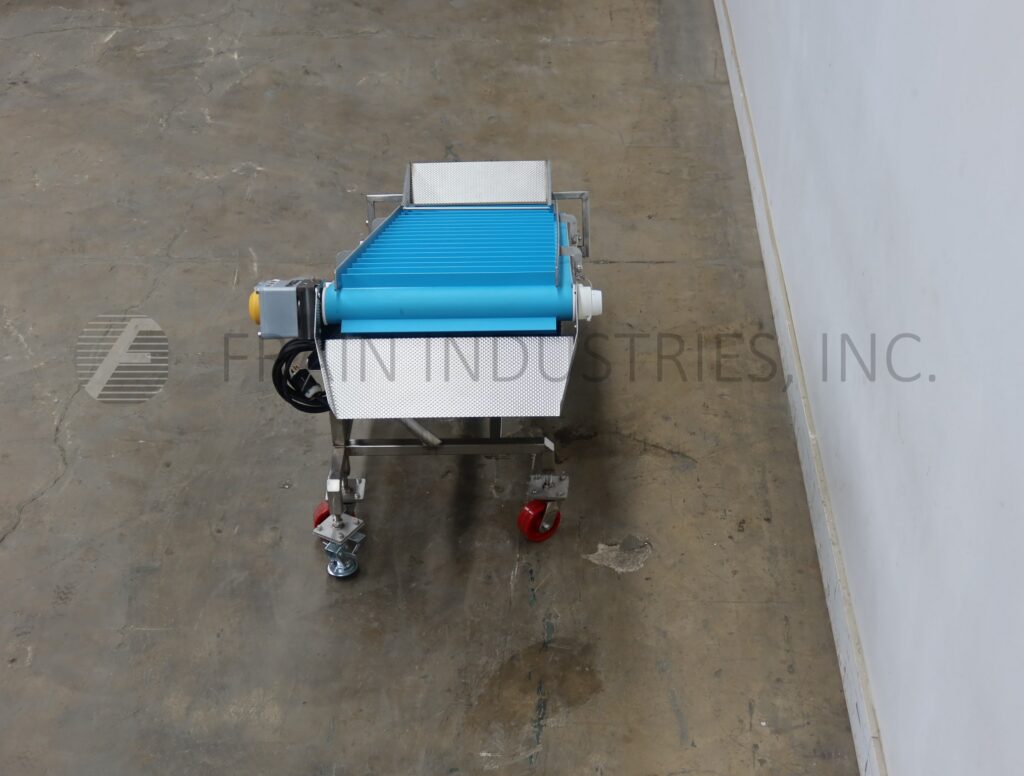

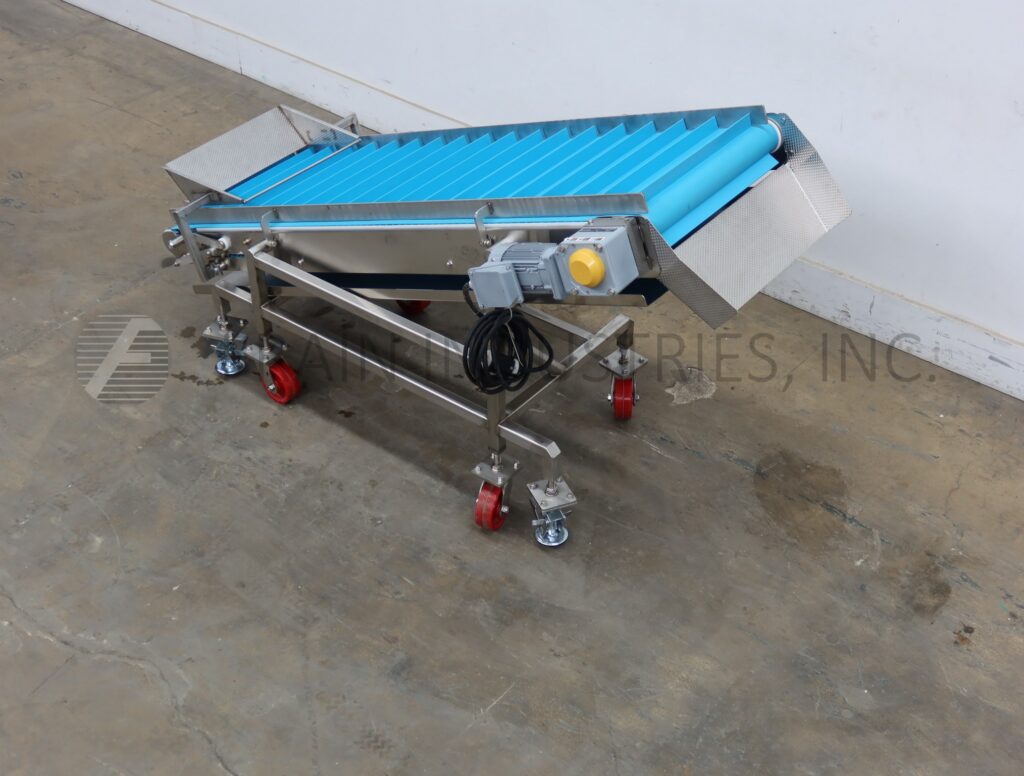

Feeder Incline/Cleated 32½" DISCH

• Model Number: 32½" DISCH
• Frain Number: 5J5743

304 stainless steel inclined cleated conveyor with amount of product per hour – depending on materials and application. Equipped with 24" wide x 74" long food grade belt with 1½" high cleats set on 4" centers, 72" incline length, 19½" wide x 7" deep dimpled hopper with a 23" infeed height, 74" long x 2" high flip up guide rails, 71½" long x 24½" wide x 1¼" deep under conveyor drip tray, 21½" wide dimpled discharge chute with 32¼" ground clearance. Powered by a top mounted ½ HP drive. Mounted on stainless steel frame with castors.

OAD: 71" L x 39" W x 47" H

Omega Design Feeder Incline/Cleated 5DRP2-12

• Manufacturer: Omega Design
• Model Number: 5DRP2-12
• Frain Number: 5D0091B

Omega Design, stainless steel, bulk hopper / incline feeder. Equipped with 60" wide x 60" long x 34" deep product hopper,18" wide x 125" long belt conveyor with 3" high cleats on 12" centers with 108" discharge.

OAD: 135"L x 61"W x 137"H

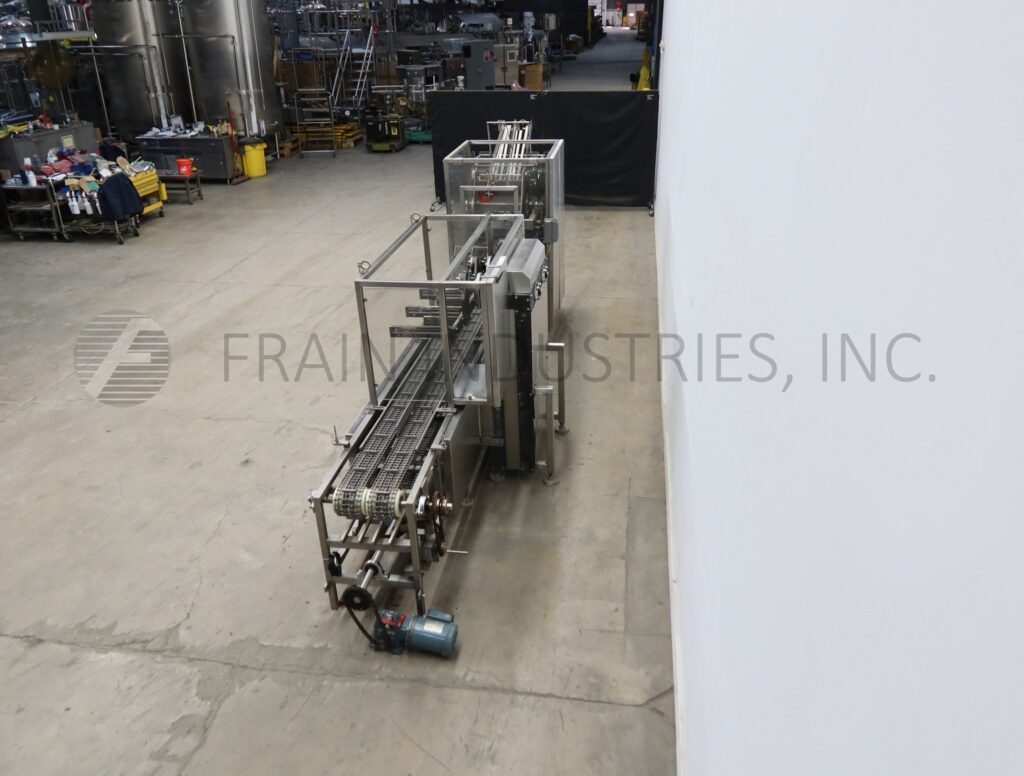

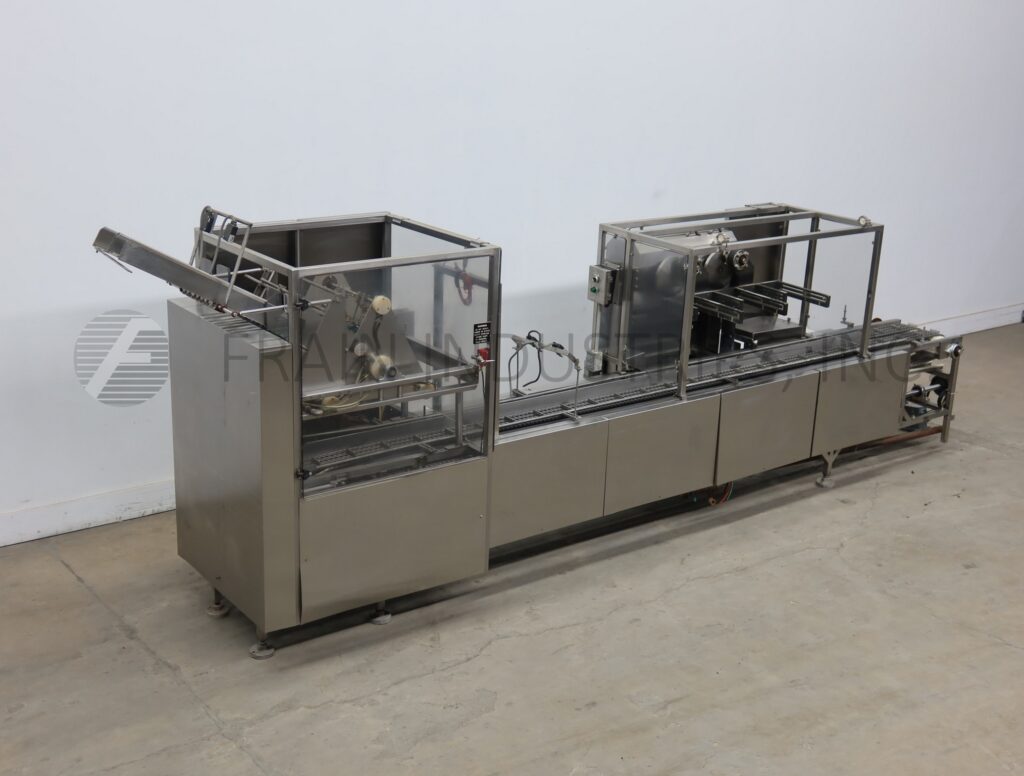

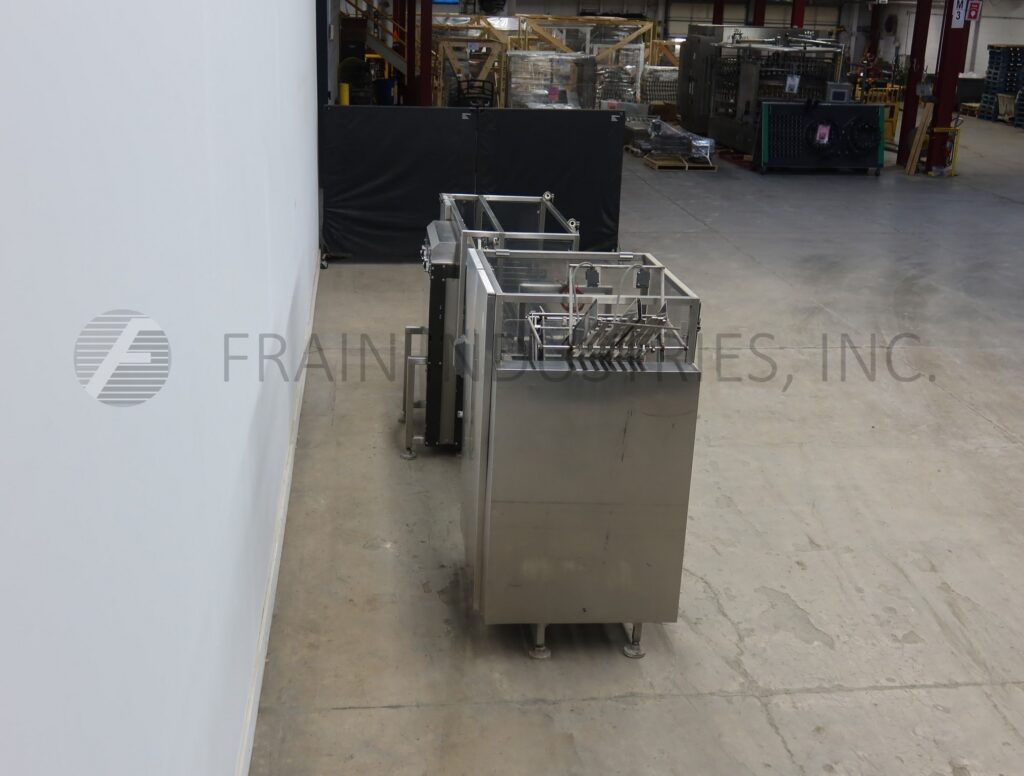

Thiele Feeder Coupon Inserter 33-300 ROTARY PLACER

• Manufacturer: Thiele
• Model Number: 33-300 ROTARY PLACER
• Frain Number: 5C7292

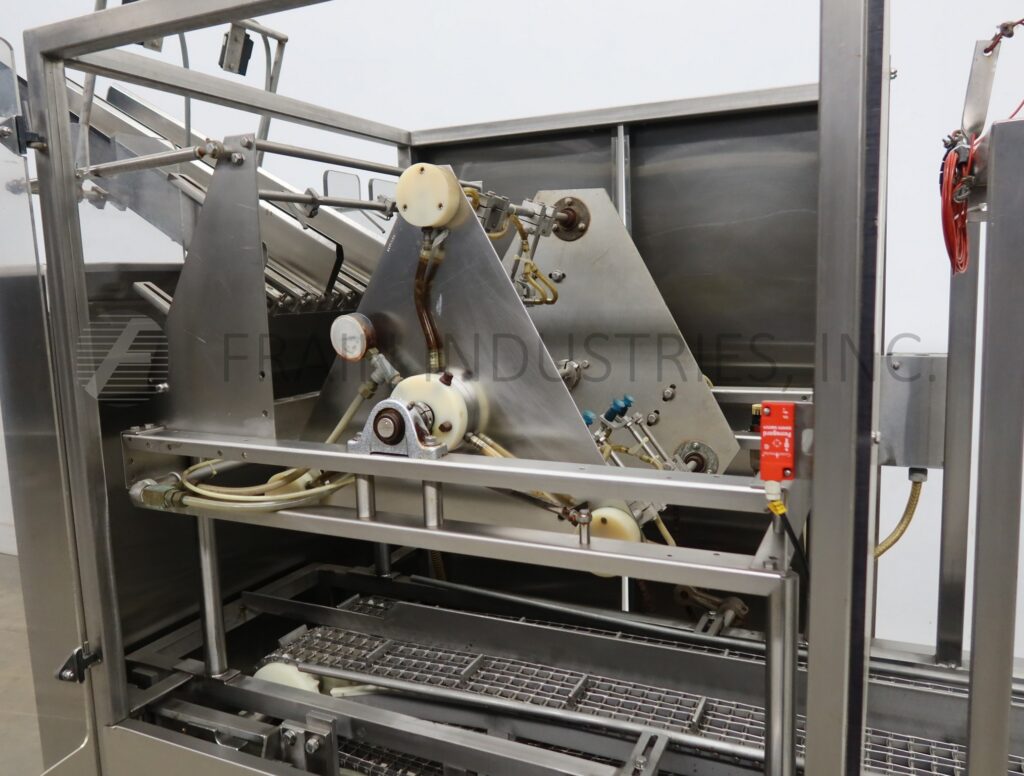

Thiele stainless steel in-line cup and tray filler. Equipped with a three head rotary pick and place, 36" long magazines, (2) 6" wide x 200" long stainless steel belts with ¾" high cleats set on 7(5/8)" centers and two up orbital filling head.

OAD: 245"L x 48"W x 72"H

*Optional overhead sweeping transfer conveyor available for an additional cost.

Pneu-Con Feeder Vacuum SC2000

• Manufacturer: Pneu-Con
• Model Number: SC2000
• Frain Number: 5J4555

Pneu-Con, model SC-2000 Whisper Loader, vacuum conveying system with aluminum contact parts and stainless steel mezzanine and lift column. Rated up to 2000 lbs per hour depending on materials, application and machine configuration. Supply hopper equipped with a 24" diameter x 28" deep cone bottom bin with a 9" straight wall and 2" diameter hose connection. Receiving hopper equipped with a 12" diameter x 24" deep bin with a 18" straight wall, 2" diameter hose connection, Vibra-pulse filter cleaner, weighted dump valve and 7" diameter discharge. Mezzanine equipped with a 38" x 32" standing platform set 42" off the ground with 43" rails and a 4-step staircase. Lifting column equipped with a screw jack powered by a ¾ hp drive and 135" max lifting height.

OAD: 84"L x 52"W x 149"H

MGS Feeder Outserter TOPSERTER II

• Manufacturer: MGS
• Model Number: TOPSERTER II
• Frain Number: 5J5620

MGS, model Topserter ll, 304 stainless steel, high speed, 2 head rotary, pick and place coupon feeder rated up to 120 cycles per minute in random mode – depending on materials and application. Product size range: 1.12" to 2" in Width; 1.12" to 2" in Height and 0.06" to 1" thick with 2 heads. Equipped with 98" long x 1½" wide x 1" high single coupon magazine, 2-head rotary vacuum suction cup pick n place, Nordson H/M, vacuum pump, siko guages and is hand crank adjustable. Control panel with on/off and e-stop push button controls. Mounted on "H" style base frame with safety guarding, casters and leveling legs.

OAD: 129" L x 45" W x 76" H

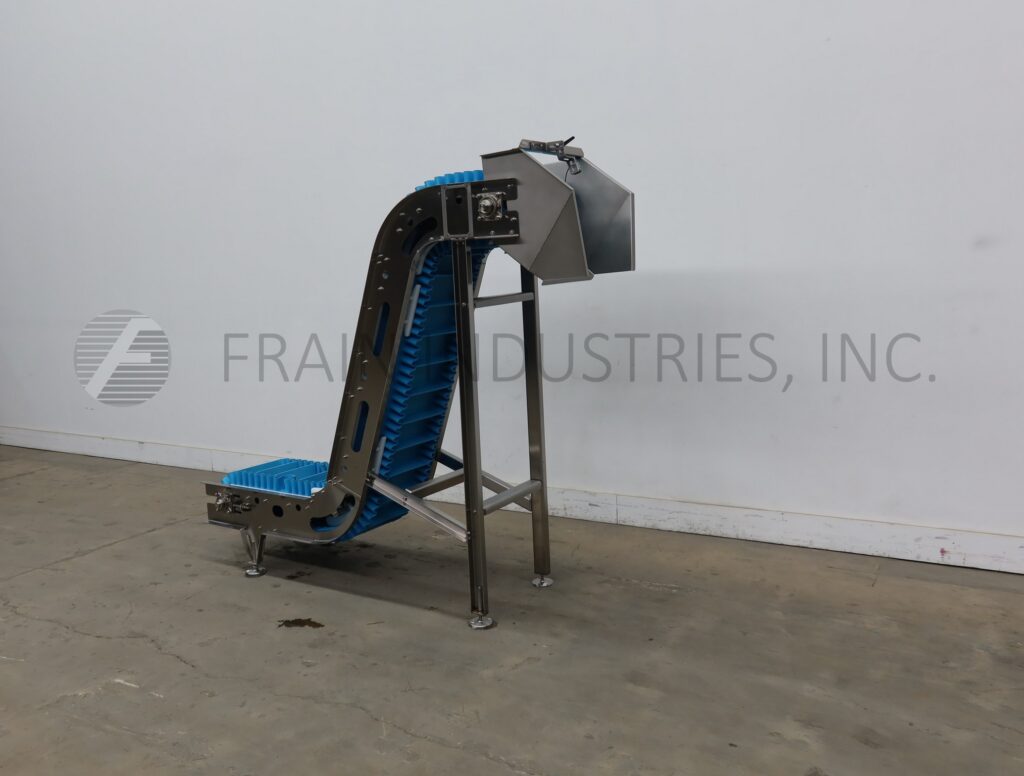

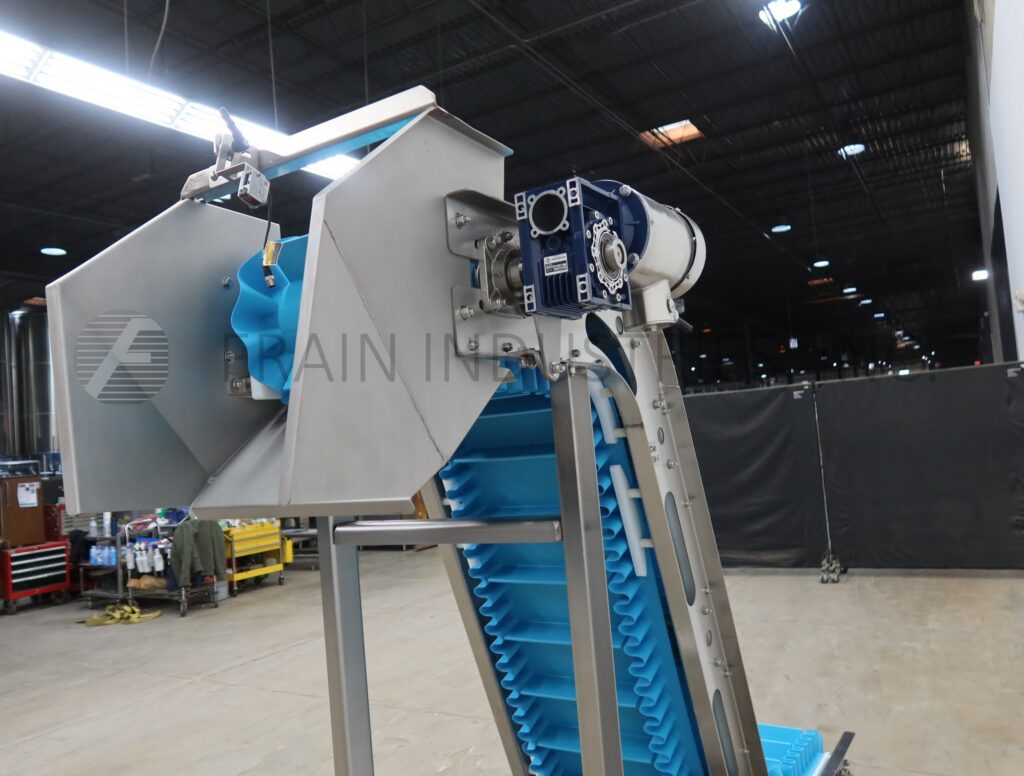

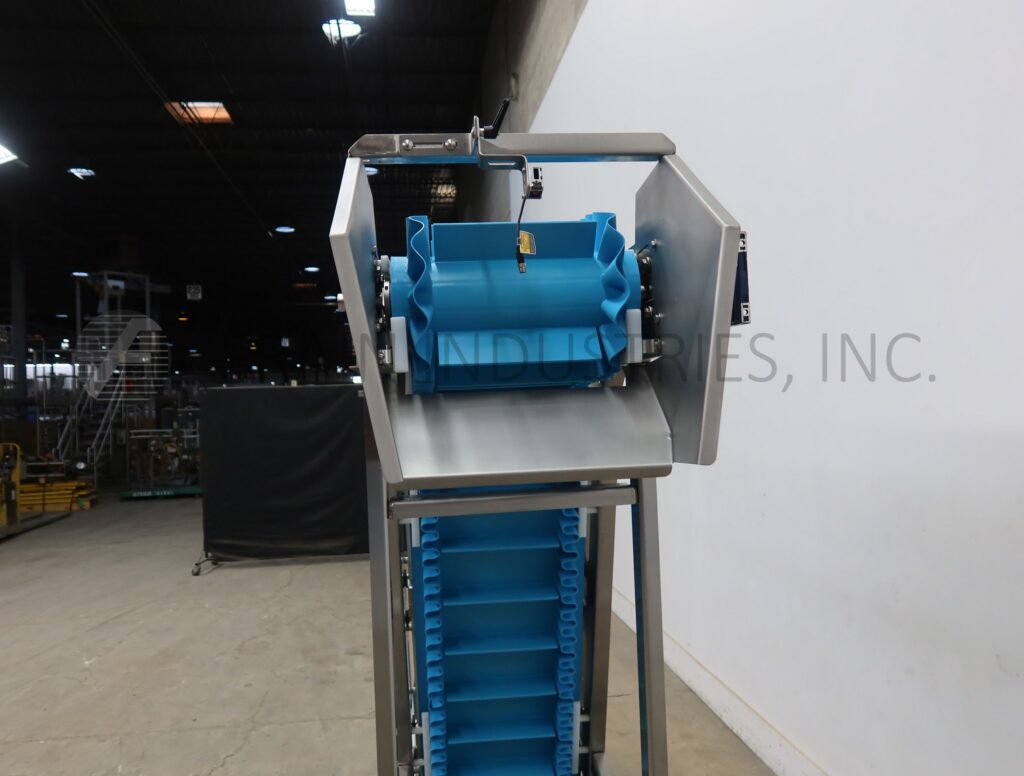

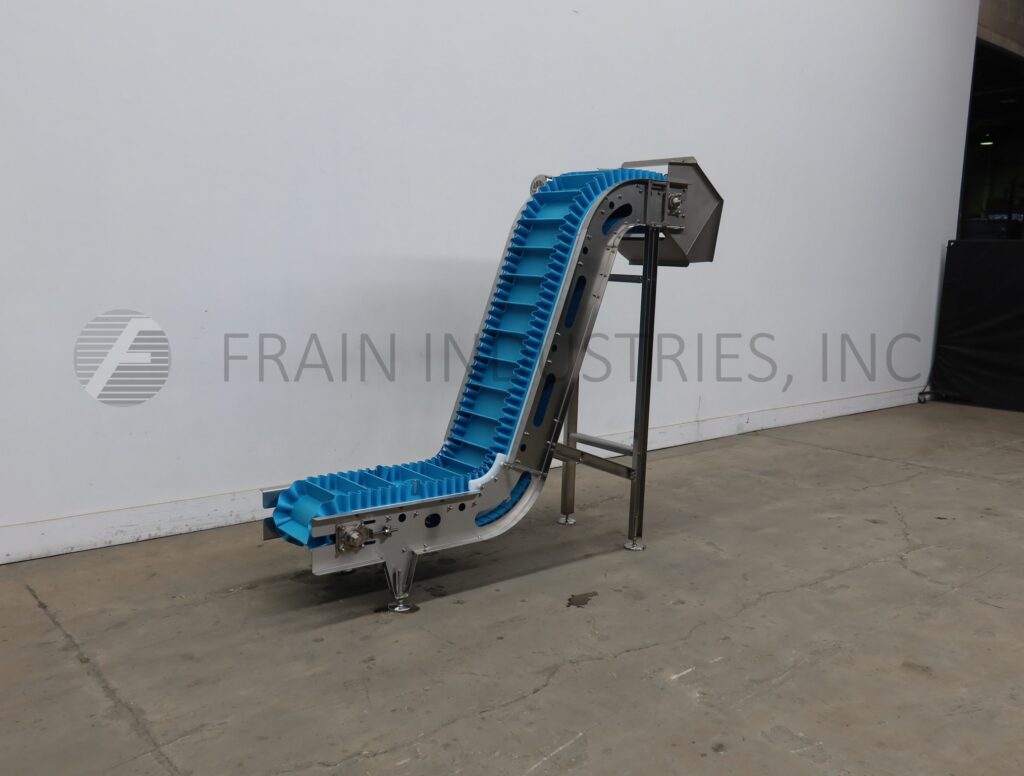

GWI – Ghazarian Welding Inc Feeder Incline/Cleated 77" DISCH

• Manufacturer: GWI - Ghazarian Welding Inc
• Model Number: 77" DISCH
• Frain Number: R40259

GWI, stainless steel, z type incline cleated belt feeder with number of product per hour – depending on materials, application and machine configuration. Equipped with 18" wide x 110" long food grade conveyor belt with 3" high cleats set on 5¾" centers powered by a top mounted drive. 30" bottom horizontal run with 24" infeed height, 60" incline, 20" top horizontal run with 77" discharge height to a 18" wide discharge chute with a 61" discharge height. Mounted on tubular stainless steel frame.

OAD: 82" L x 31" W x 84" H

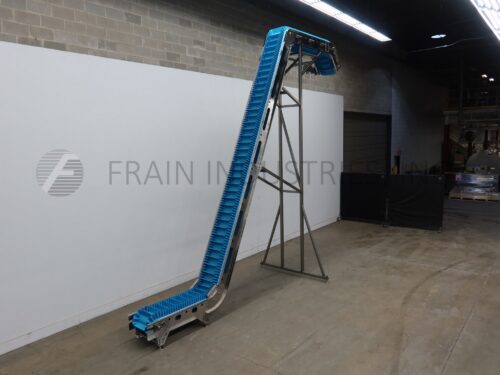

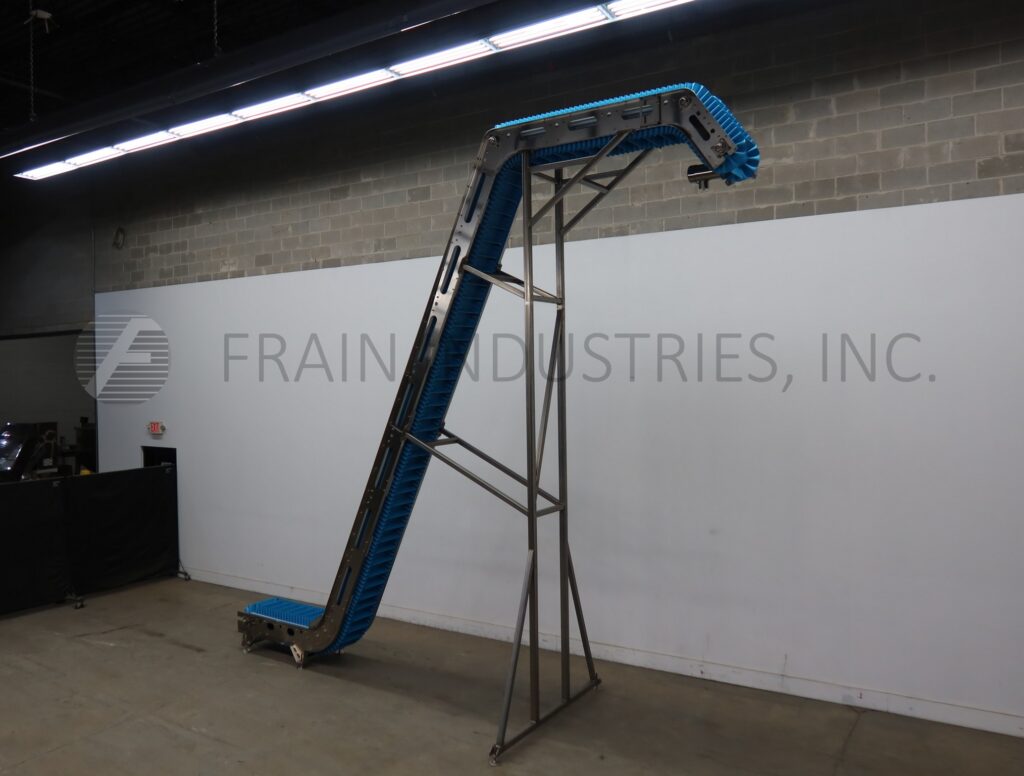

GWI – Ghazarian Welding Inc Feeder Incline/Cleated 200" DISCH

• Manufacturer: GWI - Ghazarian Welding Inc
• Model Number: 200" DISCH
• Frain Number: R40255

GWI, stainless steel, z type incline cleated belt feeder with number of product per hour – depending on materials, application and machine configuration. Equipped with 18" wide x 366" long food grade conveyor belt with 3" high cleats set on 5¾" centers powered by a top mounted 2 hp drive. 48" bottom horizontal run with 19½" infeed height, 220" incline, 77" top horizontal run, 26" downward angled run with 200" discharge height. Mounted on tubular stainless steel frame.

OAD: 180" L x 38" W x 226" H

GWI – Ghazarian Welding Inc Feeder Incline/Cleated 131" DISCH

• Manufacturer: GWI - Ghazarian Welding Inc
• Model Number: 131" DISCH
• Frain Number: R40250

GWI, stainless steel, incline cleated belt feeder with number of product per hour – depending on materials, application and machine configuration. Equipped with 19" wide x 22½" long x 17" deep (1.5 ft³) stainless steel hopper with 54" infeed height, 18½" wide x 130 long food grade conveyor belt with 3" high cleats set on 5¾" centers with a 131" discharge height powered by a top mounted 1 hp drive. Mounted on steel frame with castors.

OAD: 86" L x 35" W x 146" H

Powell Systems Feeder Incline/Cleated PSI-BI10

• Manufacturer: Powell Systems
• Model Number: PSI-BI10
• Frain Number: R40154

Powell Systems, Model PSI-BI10, stainless steel inclined cleated conveyor with amount of product per hour – depending on materials and application. Equipped with 9¾" wide x 69" long belt with 1¼" high cleats set on 12" centers. 12" long horizontal run has 7½" in feed height. 85" long incline section with 36" discharge height and variable speed controller. Mounted on stainless steel frame with casters.

OAD: 69"L x 20"W x 39"H

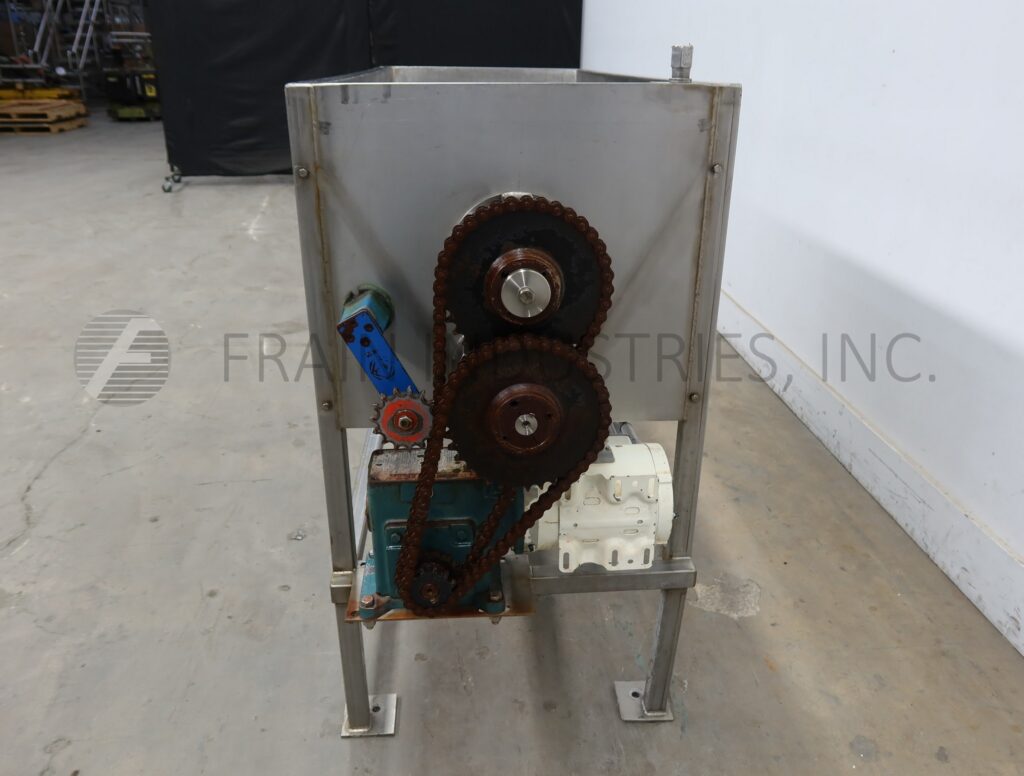

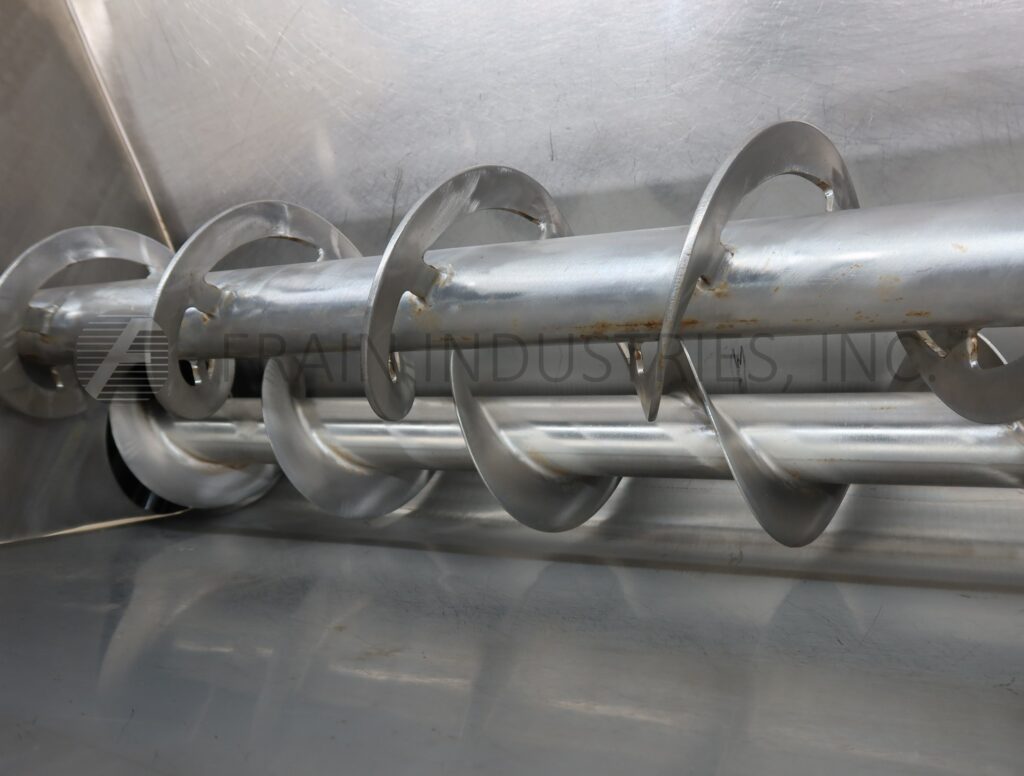

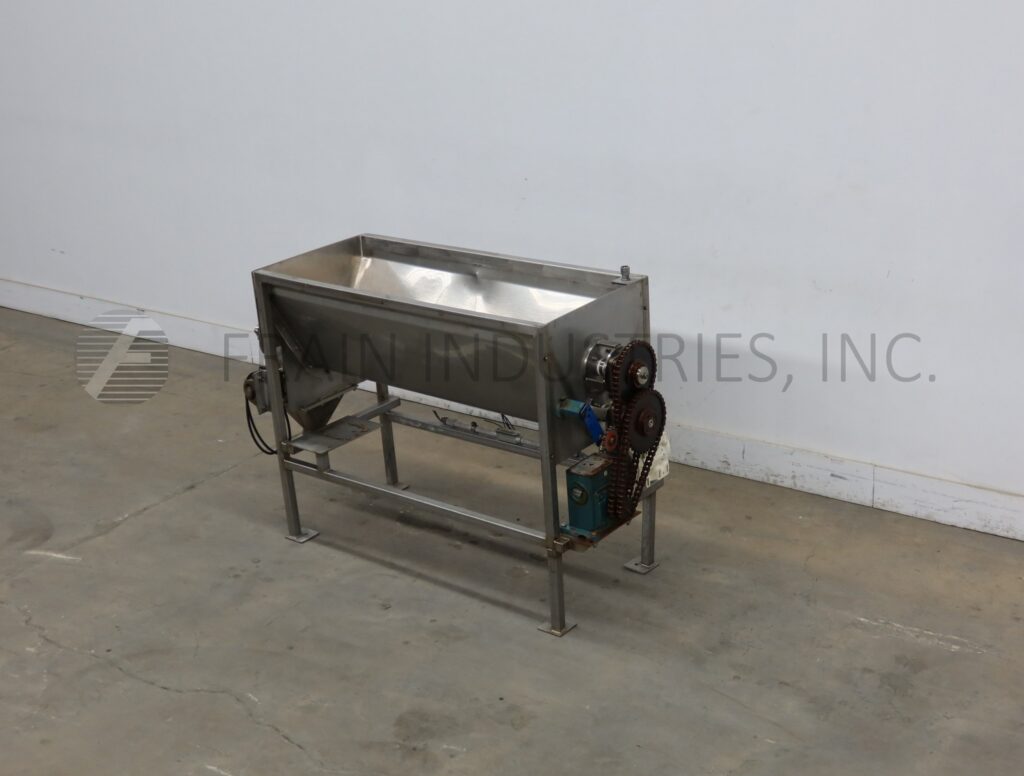

Feeder Auger 10 CU FT

• Model Number: 10 CU FT
• Frain Number: 5E2220

10 cu ft, S/S, pre feeder with product trough, and dual feed screws. Has 4 1/2" flanged end bottom discharge with a 14" floor clearance, and a Reliance Electric 3/4 Hp AC motor drive, and mounted on (4) leg base frame.

OAD : 80"L x 26" W 48" H
