Commercial and industrial powder mixer equipment and machines encompass a broad range of equipment designed to mix and blend dry:
Powder Mixer equipment and machines are designed to fit their specific mixing and blending application whether it be powder with powder, or liquid with powder, though different types of mixing and mixing processes can be used to mix the same two components together.
The proper powder mixer for an application requires knowledge of the different substances that are to be mixed together as well as their mixing properties. To determine the proper mixer for the application, the desired outcome or end product for the mixing application needs to be known.
Commercial and industrial mixers are mostly batch but some mixing applications, such as powder to liquid, can be continuous. Batch mixers take a certain amount (batch) of product and process it for a certain amount of time.
Once the product is processed, the batch is removed from the mixer and another batch can be placed in the mixer. Continuous mixers move the product through the mixer so that a continuous stream of mixed product is being discharged.
See also: Liquid Mixers
Blentech Corp, Model DM-34072-RVS, 304 stainless steel dual trough ribbon blender with pounds of product per hour – depending on materials and application. Total Capacity: 120 ft³. Working Capacity: 100 ft³. Dual trough dimensions: 72" in Length; 69" in Width; 45" in Depth. Equipped with (12) steam injection ports, 3" wide x ½" thick stainless steel ribbons and has dual pneumatic discharge gates with 40" ground clearance. Powered by (2) 20 Hp chain to sprocket motor drives with safety guarding. Mounted on (4) leg base frame.
OAD: 114"L x 92"W x 87"H

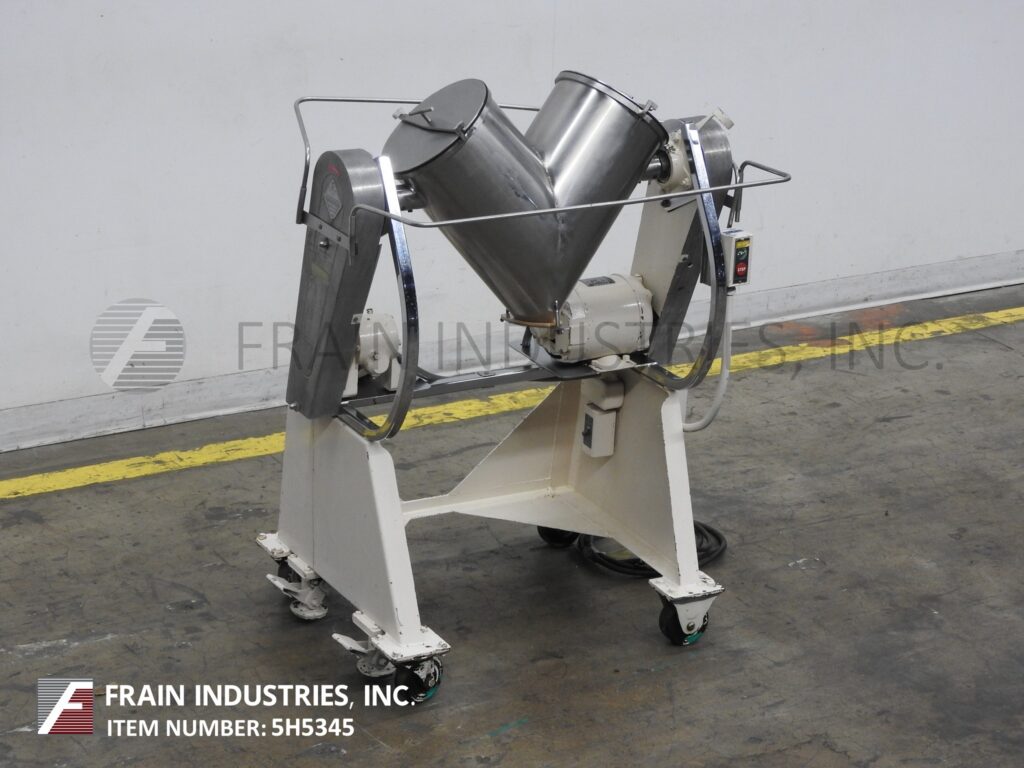

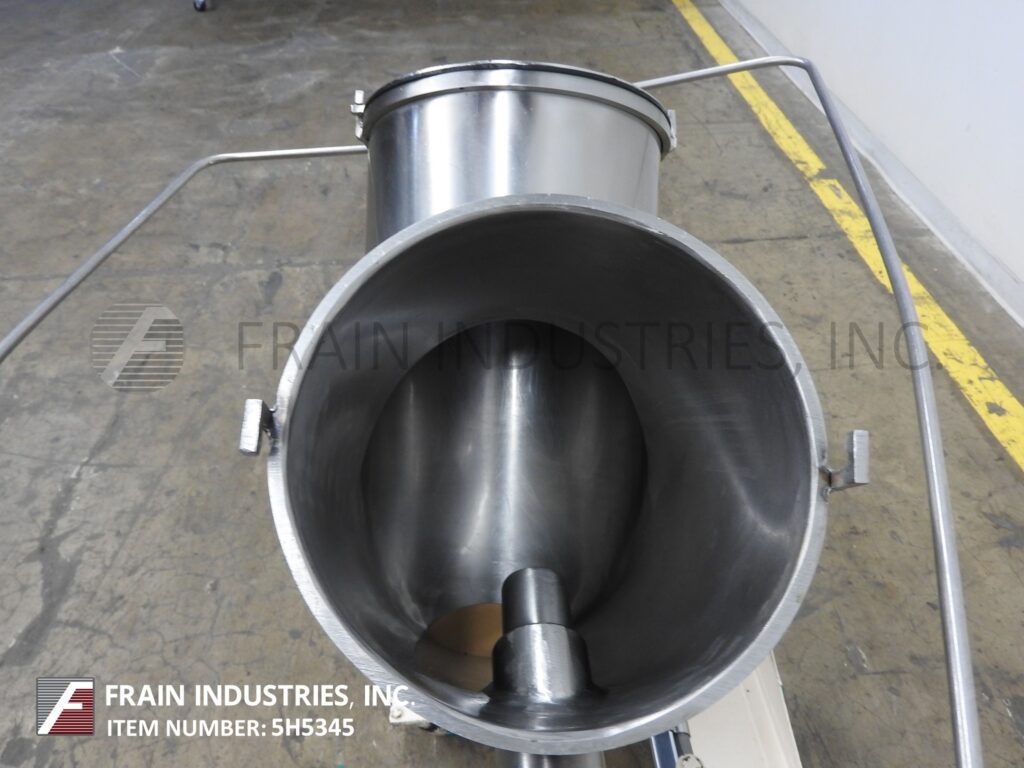

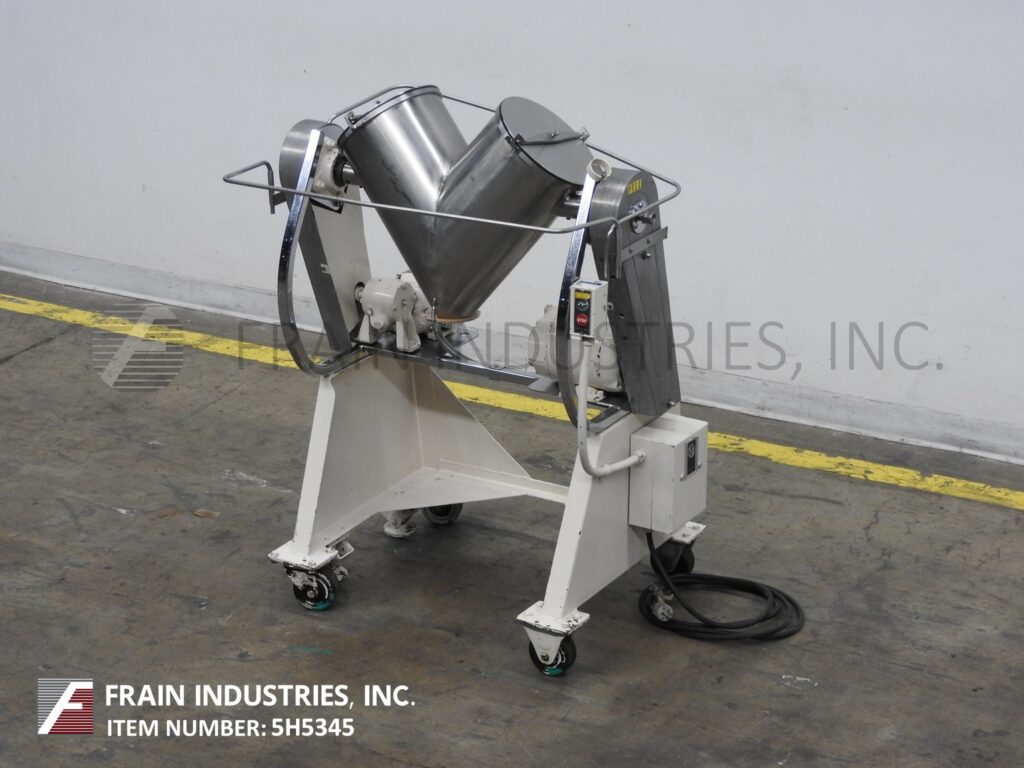

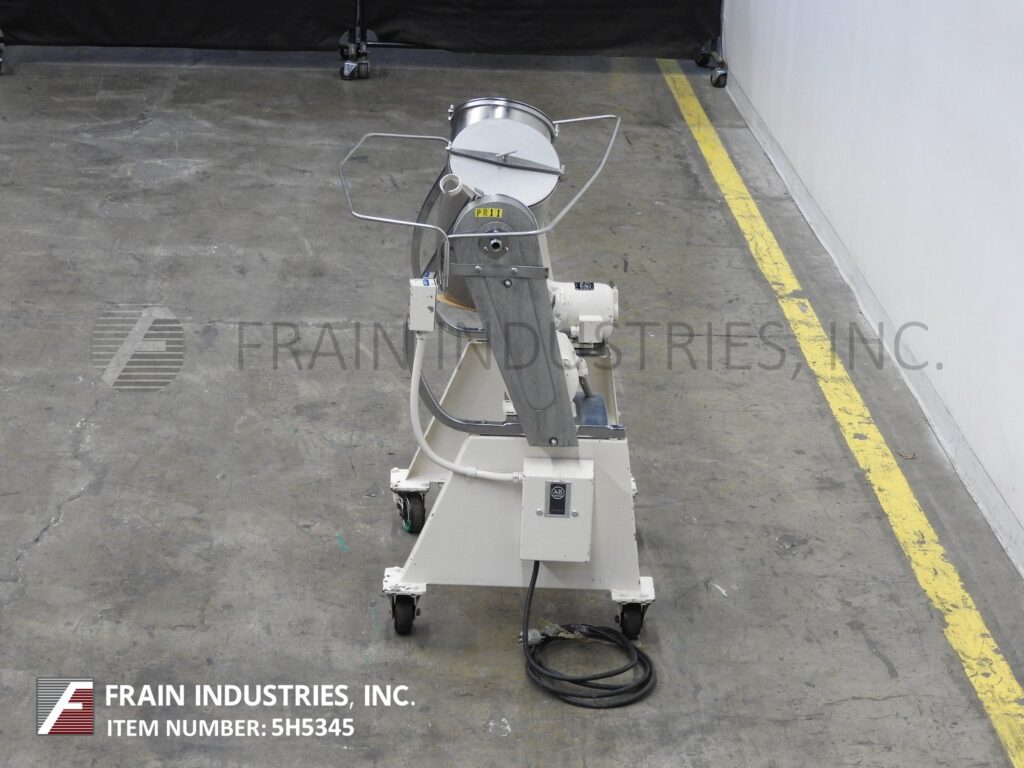

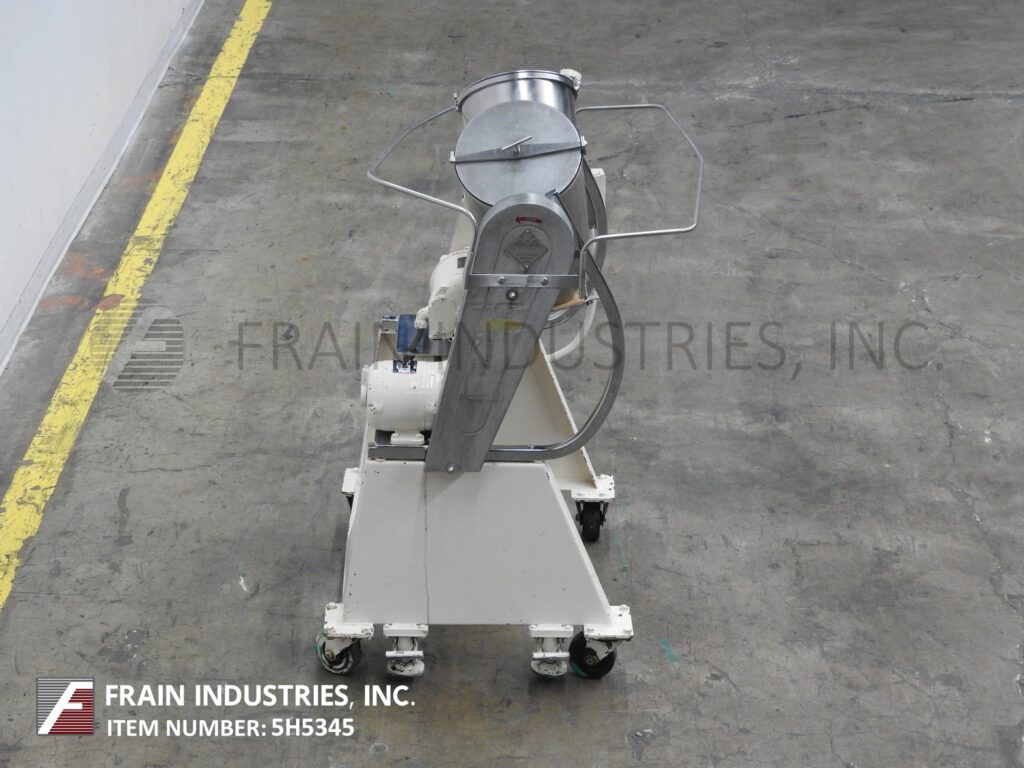

Patterson Kelly,1 ft³, 304 stainless steel, twin shell mixer. Rated to 115 lbs per ft³ and Ibs per hour – depending on materials and application. Equipped with (2) 11½" ID product ports with bolt down covers, (2) 20" long side V-Walls and (2) 7" long inner V-Walls, 2½" x 4½" discharge with 25" ground clearance and powered by ¼ Hp drive. Requires 55" ceiling clearance with 16" swing radius / 32" swing diameter.
OAD: 52"L x 20"W x 49"H

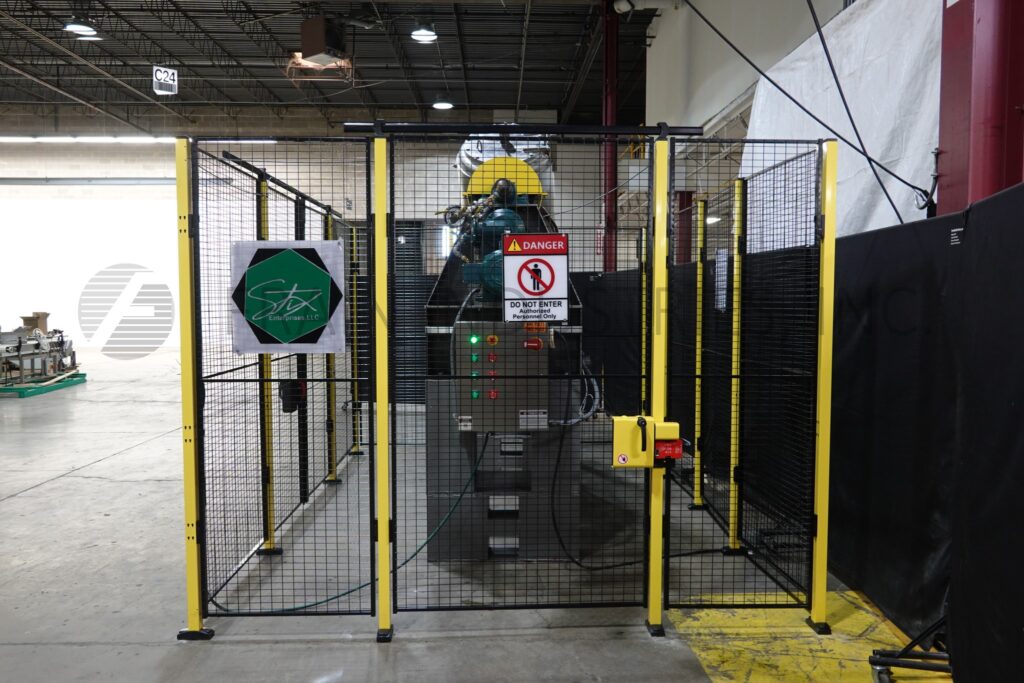

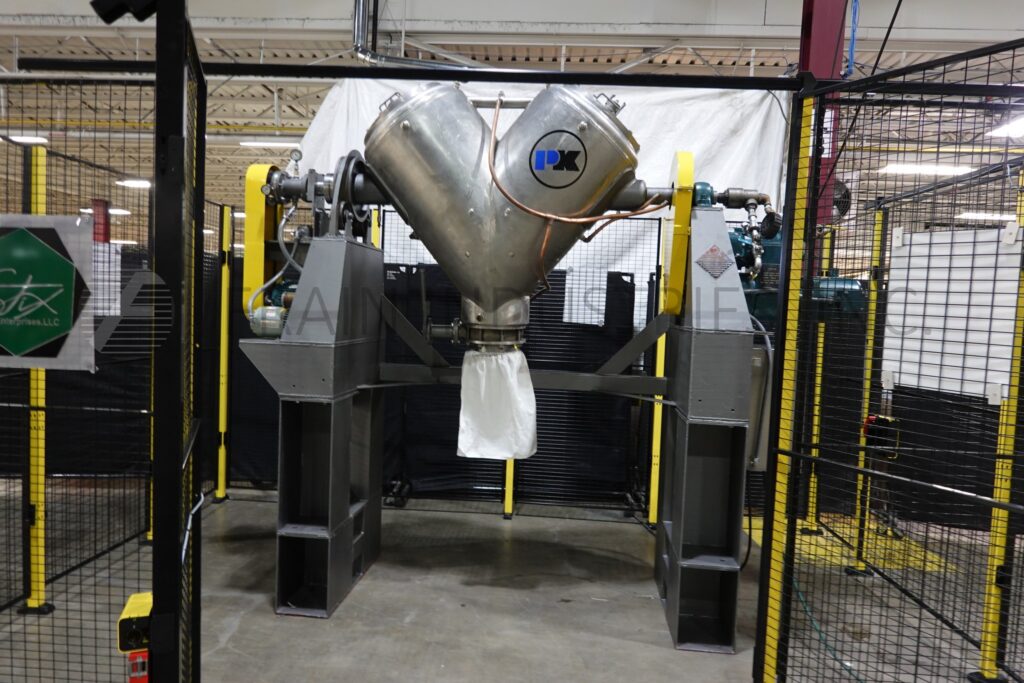

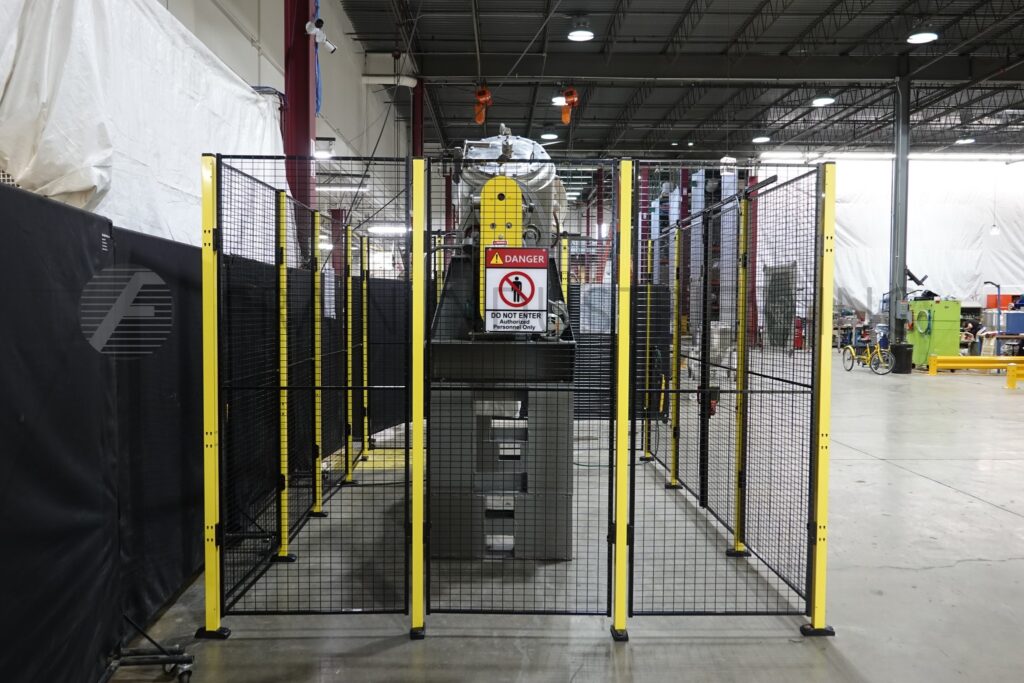

Patterson Kelly, 20 ft³, stainless steel, twin shell powder mixer has liquids solids bar with amount of pounds of product per hour – depending on materials, application and product density. Mixer dimensions: 40" long outer side walls, 19 long top inner side walls, 65" across top center and (2) 19" OD product ports with bolt down covers and bulk density rating of 70 lbs per ft³. and has liquids solids bar with 2Hp motor drive and 8" OD center bottom discharge mounted on pedistal style frame with 40" floor clearence.
OAD: 96" L x 40" W x 65" H Without Platform 105" H With Platform
Mepaco, 304 stainless steel, dual trough ribbon blender. Capacity: 130 ft³ total (100 ft³ working). with pounds of product per hour – depending on materials and application. Dual trough with mixer dimensions of: 92" in Length; 32" in Width; 43" in Depth each trough. Equipped with lift up safety grate, 3½" wide x ½" thick ribbons, dual 22" x 10" pneumatic gate discharges with 59" ground clearance and powered by (2) motor drives. Mounted on heavy duty frame.
OAD: 157"L x 75"W x 105"H
Mepaco, 304 stainless steel, dual trough ribbon blender. Capacity: 140 ft³ total (110 ft³ working). with pounds of product per hour – depending on materials and application. Dual trough with mixer dimensions of: 102" in Length; 32" in Width; 43" in Depth each trough. Equipped with lift up safety grate, 3½" wide x ½" thick ribbons, dual 22" x 10" pneumatic gate discharges with 53" ground clearance and powered by (2) motor drives. Mounted on heavy duty frame.
OAD: 163"L x 72"W x 105"H
Rietz, Model RS-28-K5606, Dual trough paddle blender with working capacity of 60 ft³ pounds of product per hour – depending on materials and application. 304 stainless steel construction. Dual trough dimensions: 72" in Length; 56" in Width; 36" in Depth. Equipped with (2) 25" diameter paddles with 10" x 9" blades on 7" diameter shafts and has dual 22" x 8" pneumatic discharge gates with 32" ground clearance. Powered by (2) 30 Hp chain to sprocket motor drives. Mounted on (4) leg frame.
OAD: 106"L x 72"W x 86"H
10 ft³, double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts with Inner mixing chamber dimensions of: 43" in Length; 22" in Width; 25" in Depth. Equipped with lift up cover, lift out safety grate, (4) nozzle spray bar, 2¼" OD mixing shaft with 1½" wide x ¼" thick (outer) and 1½" wide x (1/8)" thick (inner) stainless steel ribbons. 4" center bottom discharge with pneumatic slide gate and 8" x 8" discharge chute with 36" ground clearance. Mounted on (4) leg frame with casters.
OAD: 64"L x 26"W x 75"H
Morcos, Model RM1200, 40 ft³, (35 ft³ working capacity), double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions of 76" in Length; 30" in Width; 33" in Depth. Equipped with flip up cover, lift out safety screen, 2¾" OD motor shaft, 6" OD mixing shaft with 2½" wide x ¼" thick (outer) and 2½" wide x ¼" thick (inner) stainless steel ribbons. 11" OD center bottom discharge with 23" floor clearence and 14.75 Hp motor. Mounted on stainless steel (4) leg frame.
OAD: 106"L x 40"W x 78"H
Morcos, Model RM200, 65 ft³, (60 ft³ working capacity), double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions of 90" in Length; 36" in Width; 40" in Depth. Equipped with flip up cover, lift out safety screens, 3½" OD motor shaft, 7" OD mixing shaft with 2¾" wide x (5/16)" thick (outer) and 2¾" wide x (5/16)" thick (inner) stainless steel ribbons. 11" OD center bottom discharge with 23" floor clearence and 20 Hp motor. Mounted on stainless steel (4) leg frame.
OAD: 124"L x 46"W x 89"H
S Howes Co Inc, 10 ft³, 316 Stainless steel, double ribbon mixer with pounds of product per hour – depending on materials and application. Finish: #180 grit polish. Internal dimensions: 48" in Length; 24" in Width; 24" in Depth. Equipped with flip up clamp down cover and has 14" OD center inlet with safety interlocks, 2" outer and 1" inner wide double interrupted ribbons mounted on a 3-1/2" OD shaft. 7" OD, 4-1/2" ID sanitary center bottom discharge with butterfly valve. Control panel with touch pad variable speed frequency controls, air purge seals. Mounted on (4) legs.
OAD: 84" L x 44" W x 80" H
Paul O Abbe, Model RB-10, 10 ft³, 304 stainless steel, double ribbon mixer. Inner mixing chamber dimensions of: 39" in Length; 22" in Width; 25" in Depth. Equipped with top mounted product feed hopper with safety grate and flip up / clamp down interlock safety cover and 5 Hp drive. Bottom pneumatic flap valve discharge has 16" x 12" flanged bottom and 10" x 3" ID of chute discharge with 35" ground clearence. Variable speed and e-stop. Rate dependent on materials, machine configuration and application.
OAD: 73"L x 38"W x 82"H
