Chocolate Melter Machines

OrangeWorks Candy Chocolate Melter 20,000 LBS

• Manufacturer: OrangeWorks
• Model Number: 20,000 LBS
• Frain Number: 5J5190

OrangeWorks, 20,000 lbs, 292 ft³, 304 stainless, horizontal, jacketed, chocolate melting and mixing tank, with pounds of product per hour – depending on materials and application. Inner chamber dimensions: 68" diameter x 139" long. Equipped with 24" boltdown manway, 4" diameter center shaft powered by a 10 hp drive, (4) 33" long x 6" wide paddles, front mounted 4" Tri-clamp discharge with butterfly valve and 14" ground clearance, rear mounted 4" Tri-clamp discharge with butterfly valve and 12" ground clearance, 1" ID / 4¼" OD flange with sample valve and drip tray, flush mounted sensor.

Top Ports:
(4) 4½" ID / 9" OD Flange
(1) 4" Tri-clamp
(5) 2" Tri-clamp

Jacket Ports:
(1) 1" ID / 4¼" OD Flange
(3) ¾" ID 4" OD Flange

MAWP: 149 PSI

OAD: 175" L x 75" W x 90" H

OrangeWorks Candy Chocolate Melter 20,000 LBS

• Manufacturer: OrangeWorks
• Model Number: 20,000 LBS
• Frain Number: 5J5191

OrangeWorks, 20,000 lbs, 292 ft³, 304 stainless, horizontal, jacketed, chocolate melting and mixing tank, with pounds of product per hour – depending on materials and application. Inner chamber dimensions: 68" diameter x 139" long. Equipped with 24" boltdown manway, 4" diameter center shaft powered by a 10 hp drive, (4) 33" long x 6" wide paddles, front mounted 4" Tri-clamp discharge with butterfly valve and 12" ground clearance, rear mounted 4" Tri-clamp discharge with butterfly valve and 14" ground clearance, 1" ID / 4¼" OD flange with sample valve and drip tray, flush mounted sensor.

Top Ports:
(4) 4½" ID / 9" OD Flange
(1) 4" Tri-clamp
(5) 2" Tri-clamp

Jacket Ports:
(1) 1" ID 4¼" / OD Flange
(3) ¾" ID / 4" OD Flange

MAWP: 149 PSI

OAD: 175" L x 75" W x 90" H

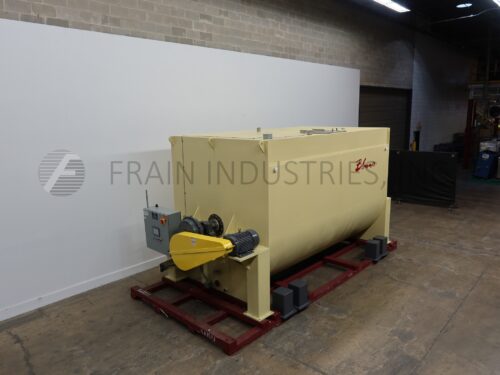

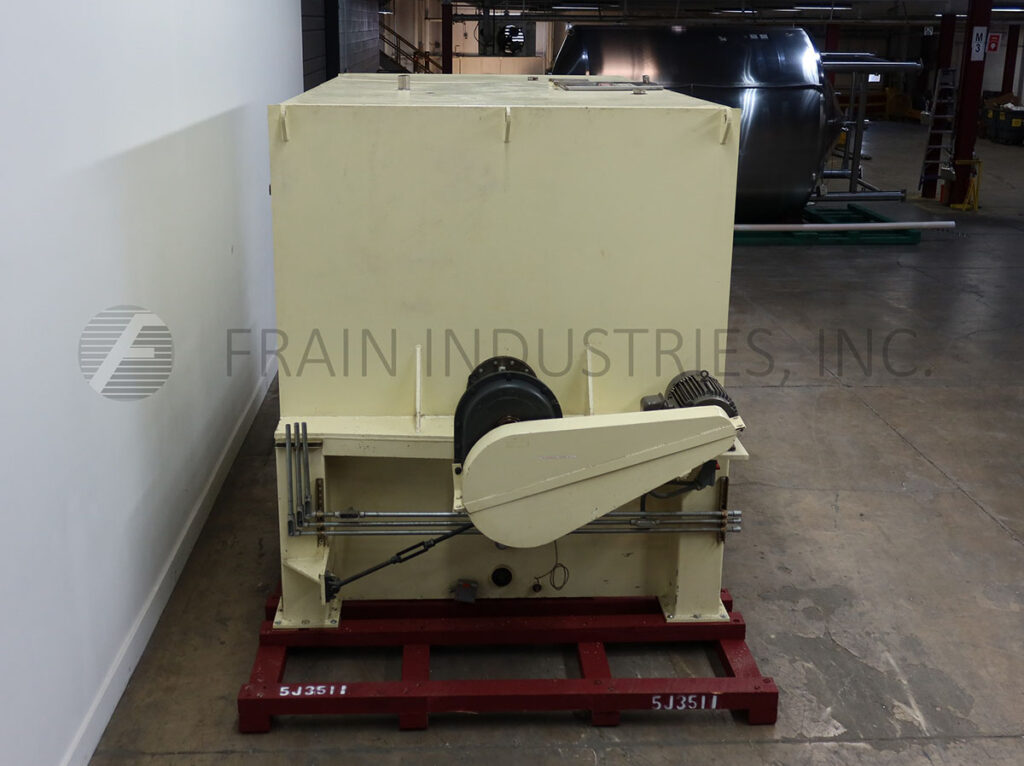

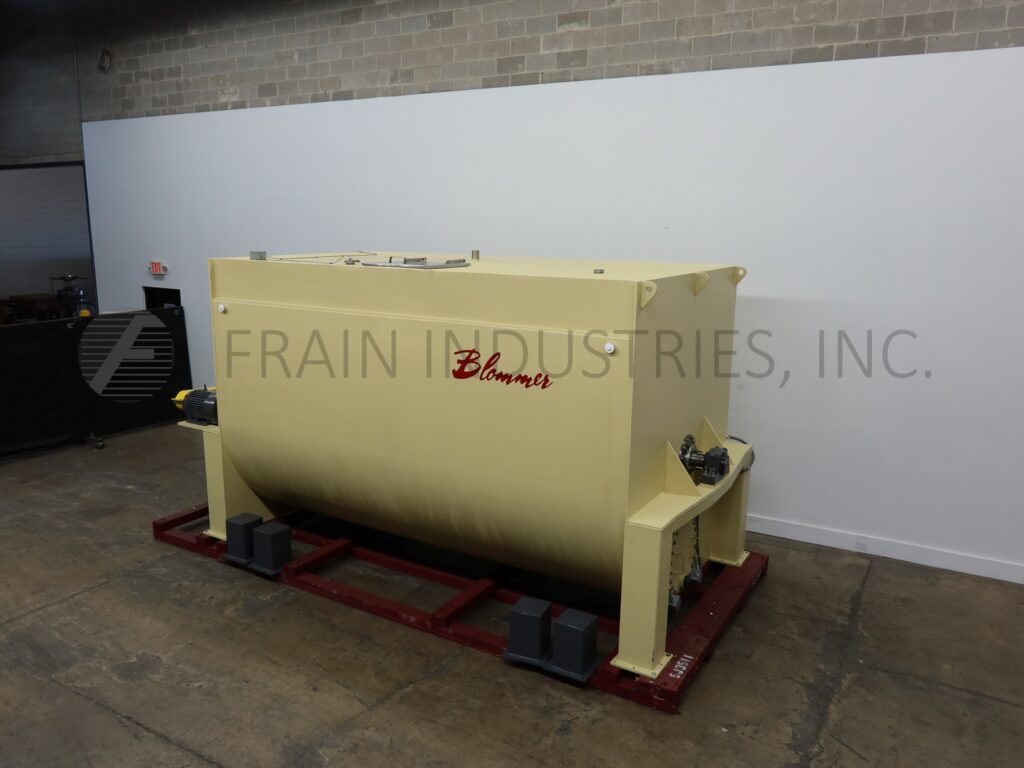

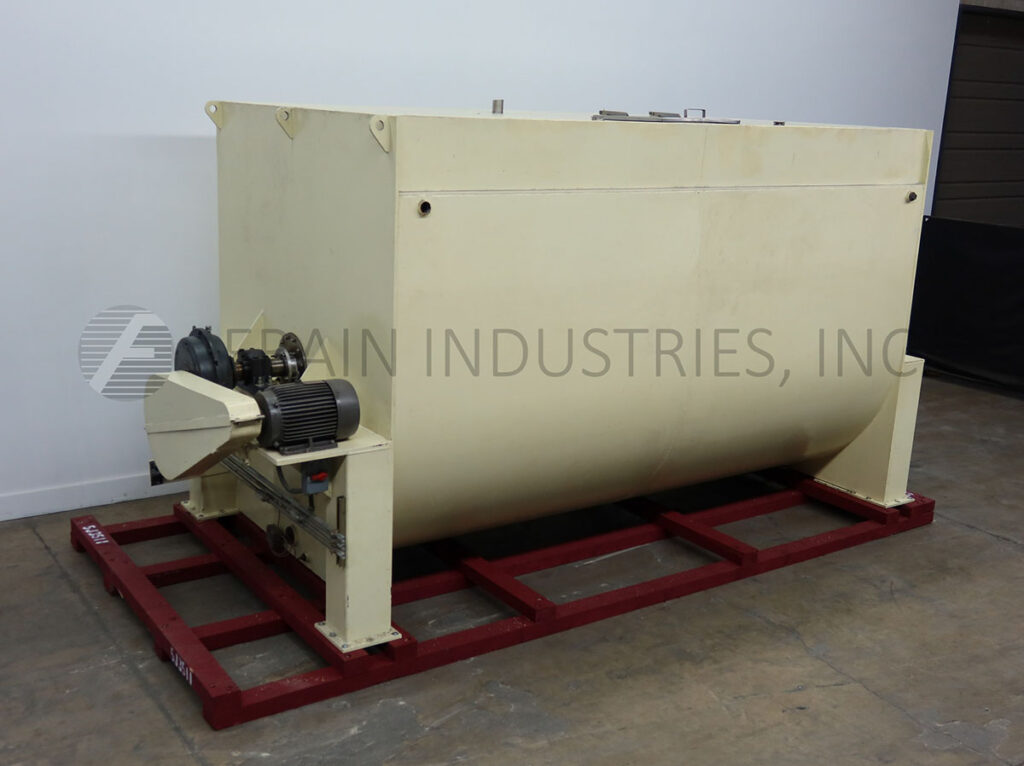

Blommer Candy Chocolate Melter 45,000LB

• Manufacturer: Blommer
• Model Number: 45,000LB
• Frain Number: 5J3511

Blommer, 45,000 lbs, carbon steel, horizontal, low pressure, jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on materails and application. Inner chamber dimension: 168″ in Length; 91″ in Width; 100″ in Depth. Equipped with covered top with a 24″ x 24″ manway, self contained heating and center bottom 2½”OD / 2″ID tri-clamp discharge with 15″ ground clearance.

Jacket:
(10) 2″ NPT

OAD: 216″L x 96″W x 130″H

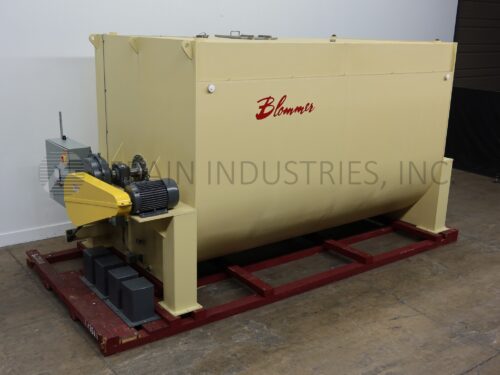

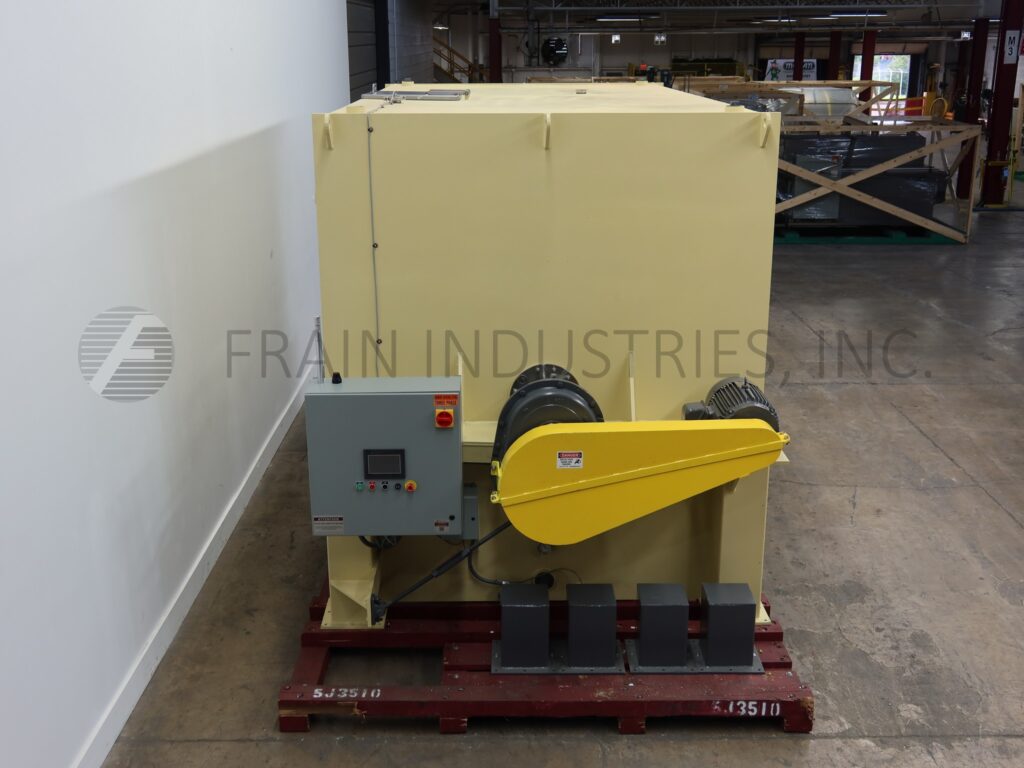

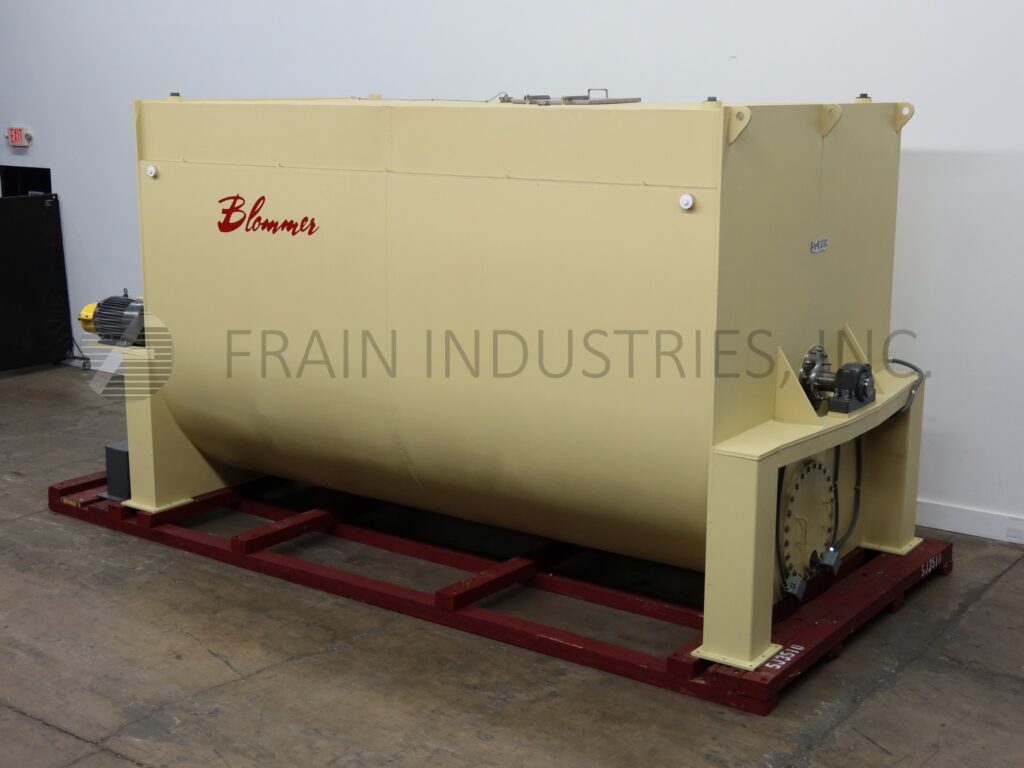

Blommer Candy Chocolate Melter 45,000LB

• Manufacturer: Blommer
• Model Number: 45,000LB
• Frain Number: 5J3510

Blommer, 45,000 lbs, carbon steel, horizontal, low pressure, jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on materails and application. Inner chamber dimension: 168″ in Length; 91″ in Width; 100″ in Depth. Equipped with covered top with a 24″ x 24″ manway, self contained heating and center bottom 2½”OD / 2″ID tri-clamp discharge with 15″ ground clearance.

Jacket:
(10) 2″ NPT

OAD: 216″L x 96″W x 130″H

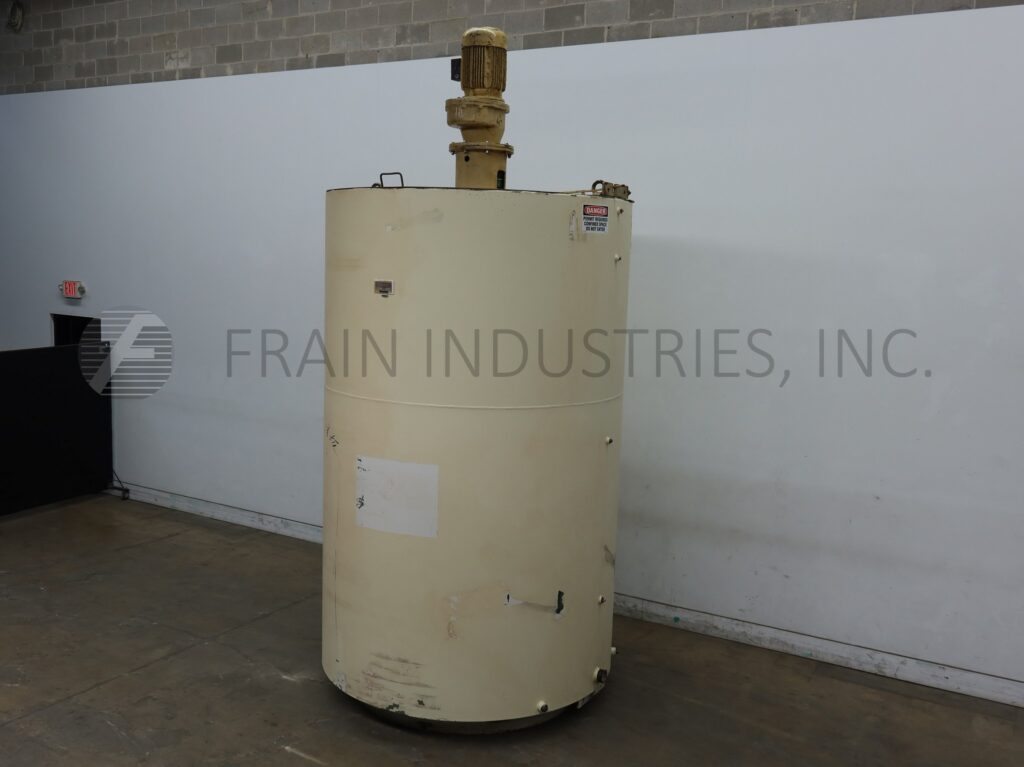

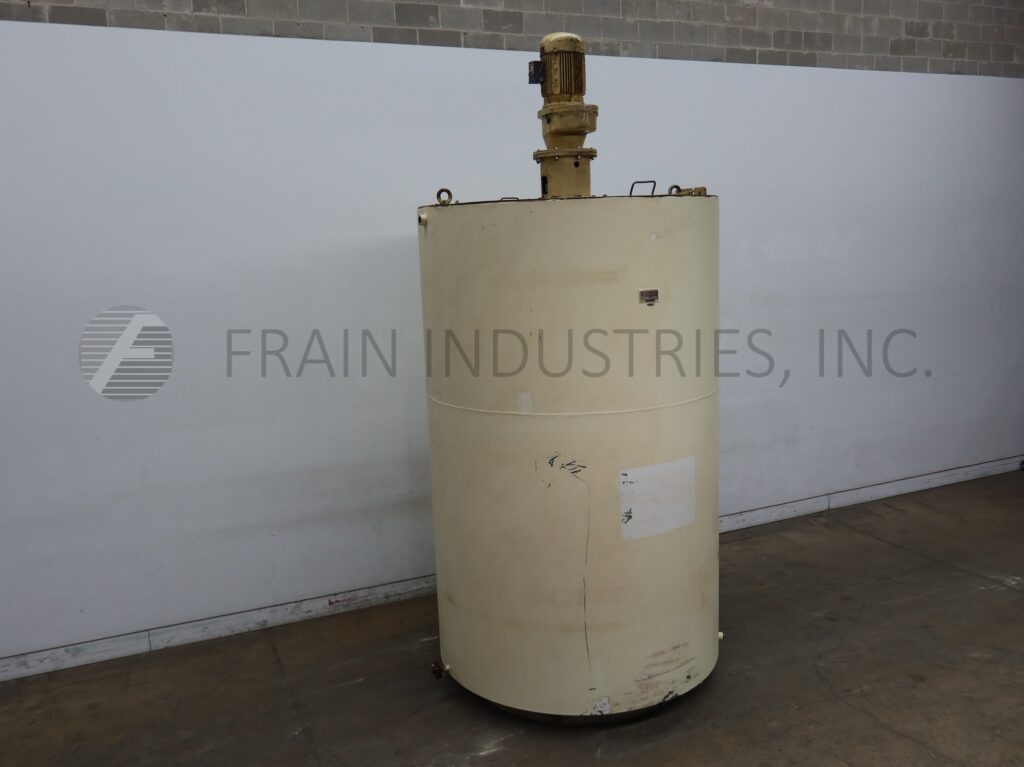

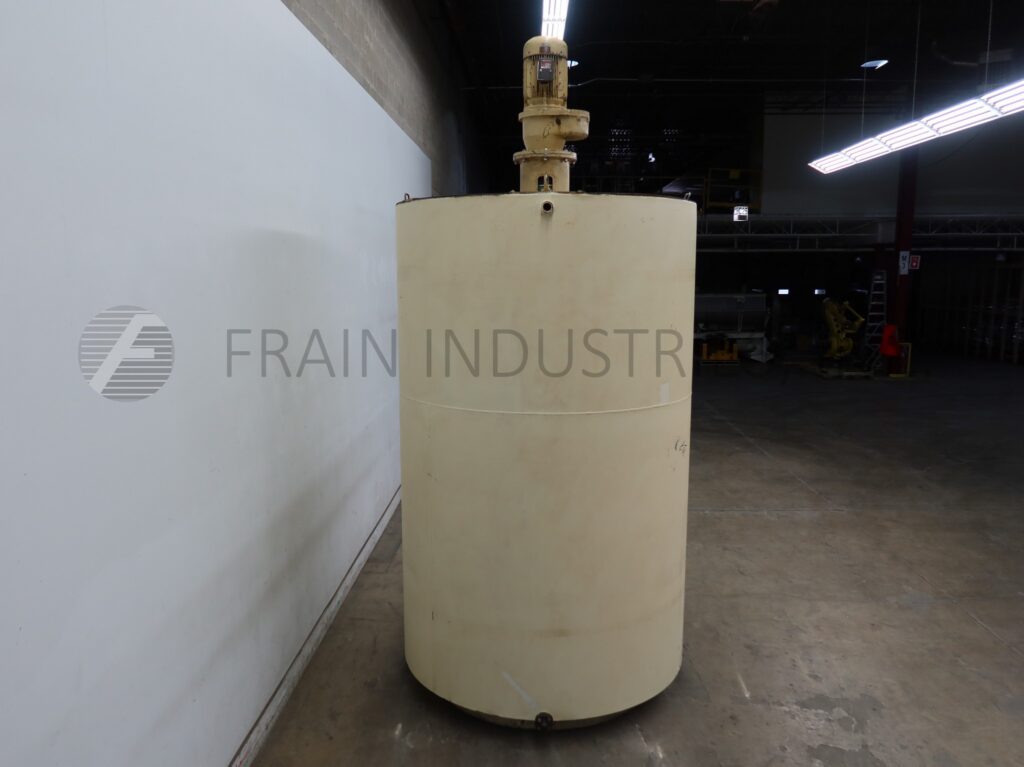

Bauermeister Candy Chocolate Melter WB10000

• Manufacturer: Bauermeister
• Model Number: WB10000
• Frain Number: 5J2590

Gebruder Bauermeister, model WB10000, 23,000 lb, vertical, low pressure water jacketed chocolate melt tank. Vessel dimensions: 79" in Diameter; 118" straight wall. Equipped with flip top cover, sweep agitation powered by a 7½ Hp drive, thermowell and 3" diameter side bottom discharge.

Jacket Access: (3) 1¼" NPT
(4) ¾" NPT

OAD: 88"L x 84"W x 182"H

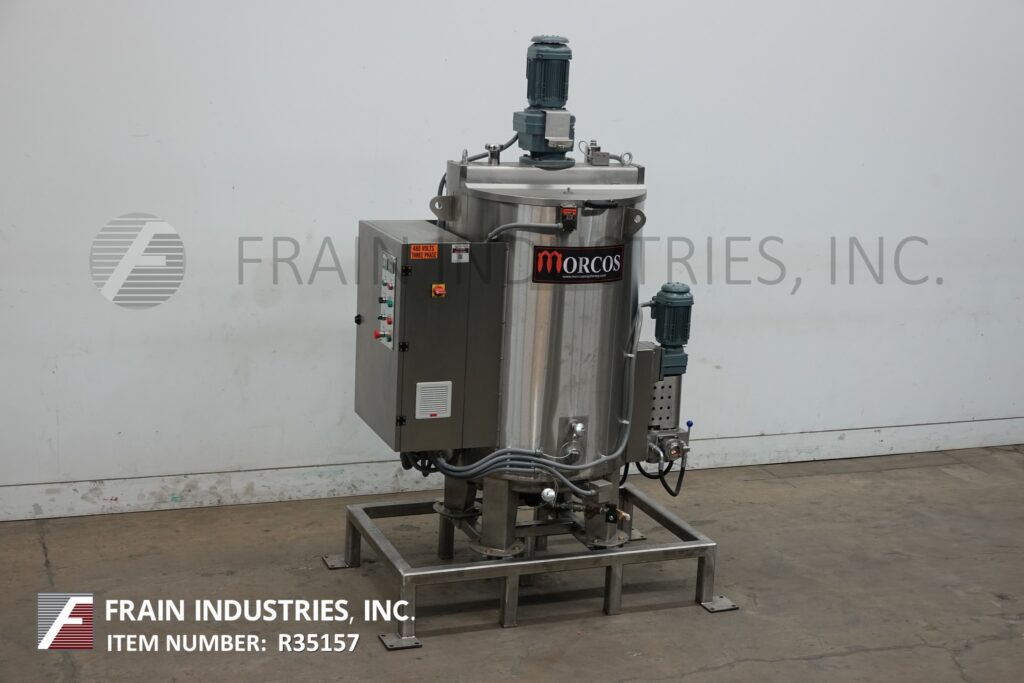

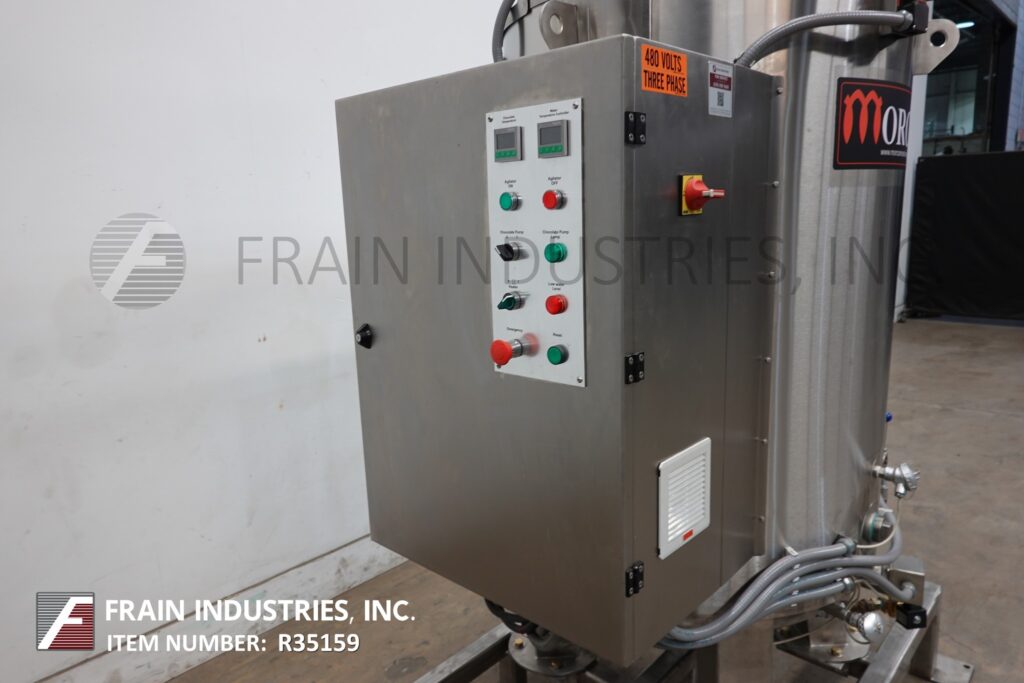

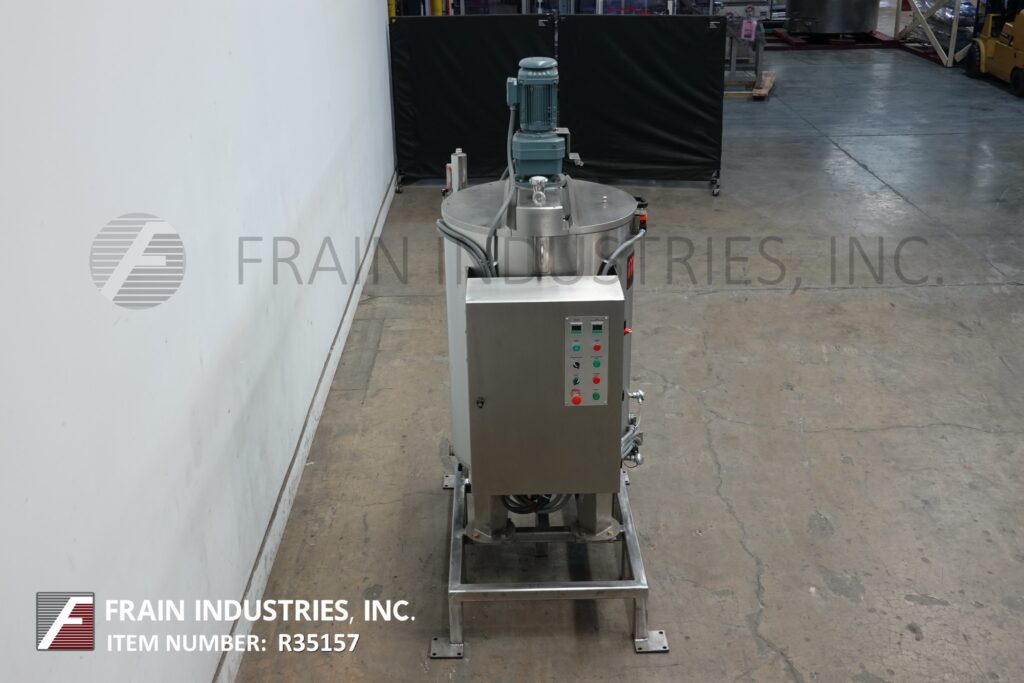

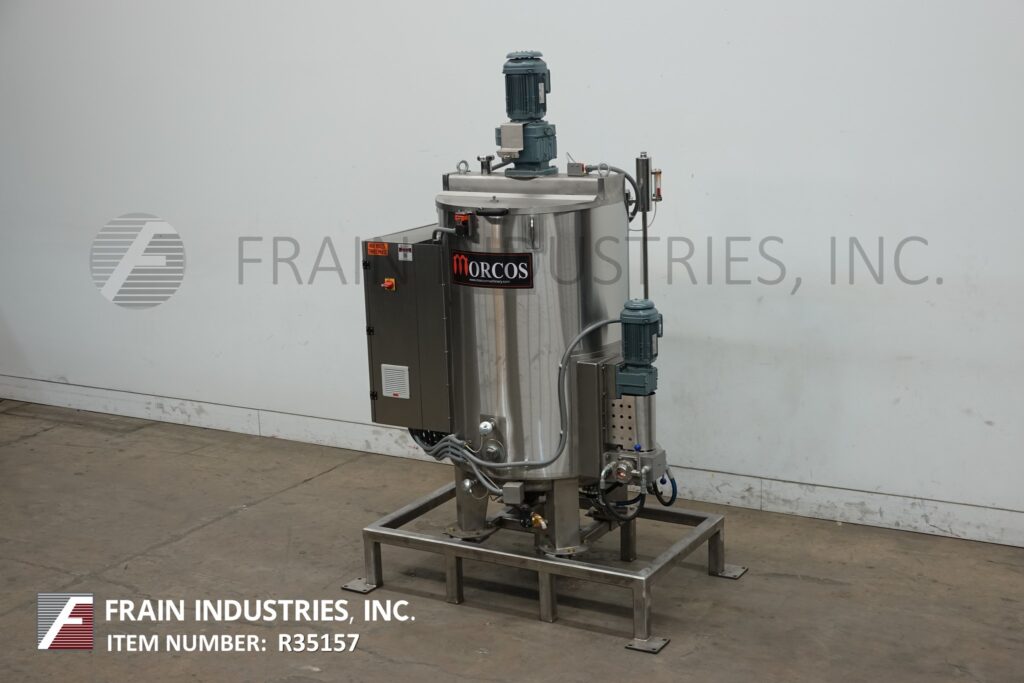

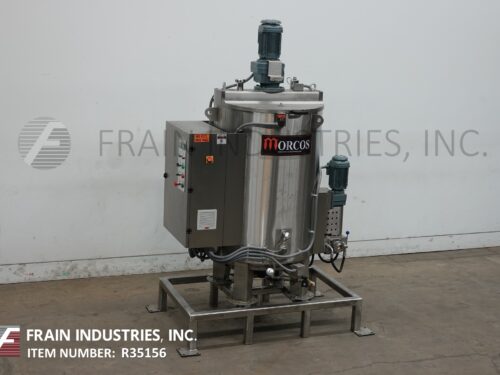

Morcos Candy Chocolate Melter AWK500

• Manufacturer: Morcos
• Model Number: AWK500
• Frain Number: R35155

Morcos, Model AWK 500, 1100 lb, stainless steel , jacketed, self contained chocolate melt tank, with pounds of product per hour – depending on materails and application. Vessel dimensions: 26" diameter x 48" deep. Equipped with sweep agitation powered by a 2 hp drive, 4.5 kw self containted heater and gear pump dischage powered by a 1 hp drive and 2" OD discharge with 15" ground clearance. Control panel with push button start / stop for agitation, on / off switches for heater and pump and digital temperature controls.

OAD: 60"L x 40"W x 90"H

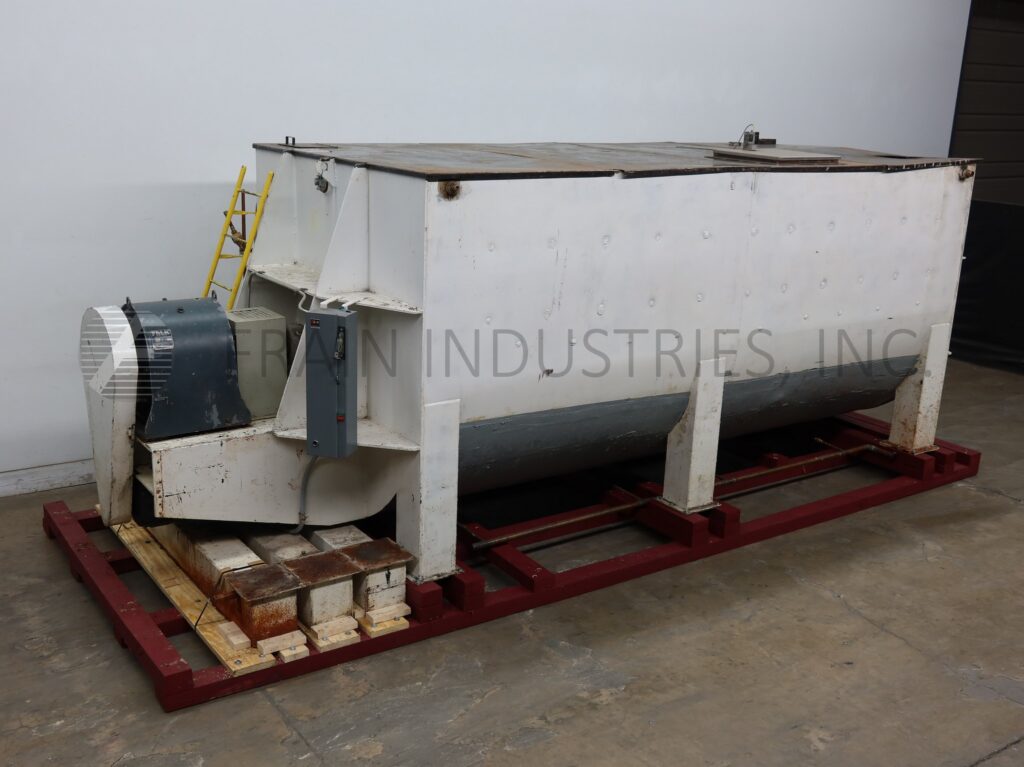

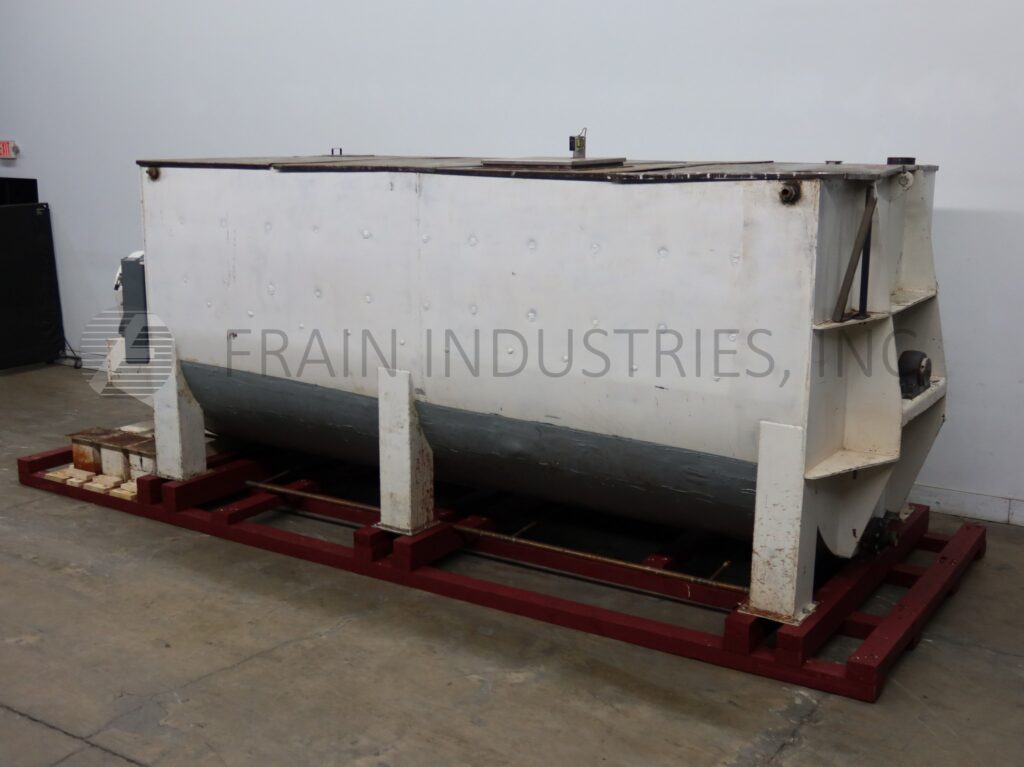

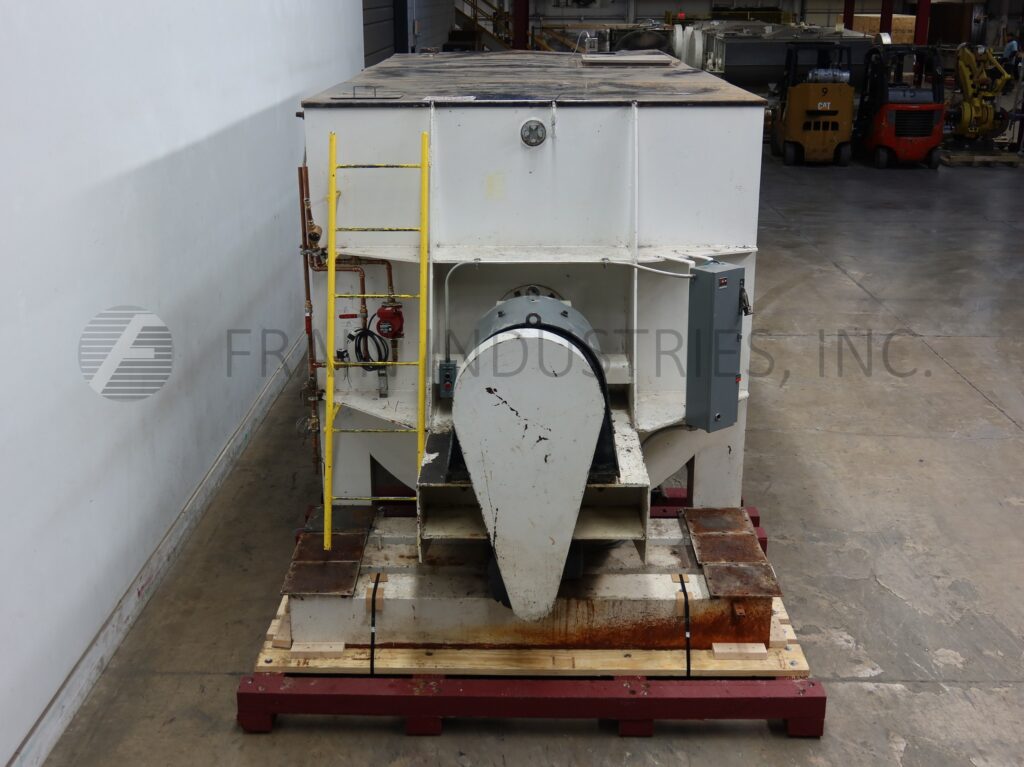

Blommer Candy Chocolate Melter 50,000 LBS

• Manufacturer: Blommer
• Model Number: 50,000 LBS
• Frain Number: 5J2552

Blommer, 50,000 lbs, carbon steel, horizontal, low pressure, jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on materails and application. Inner chamber dimension: 192" in Length; 85" in Width; 88" in Depth. Equipped with sweep agitator driven by 15 Hp motor drive and 3" diameter end discharge with 15" ground clearance.

Jacket:
(4) 1½" NPT
(4) ¾" NPT

OAD: 270"L x 90"W x 104"H

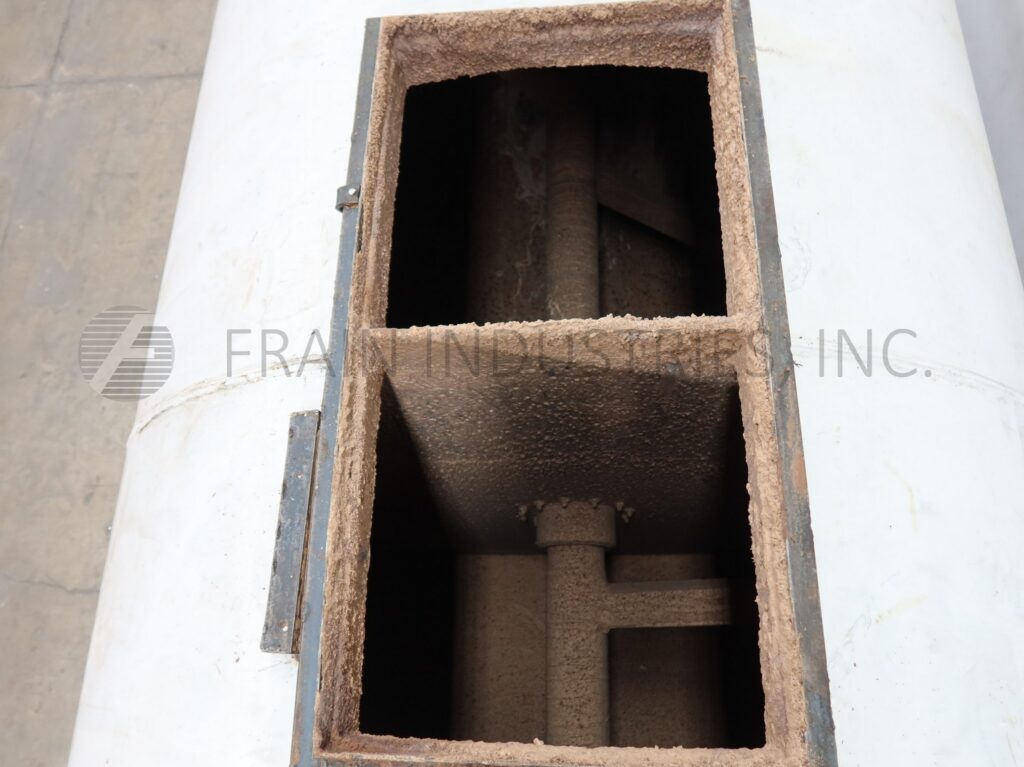

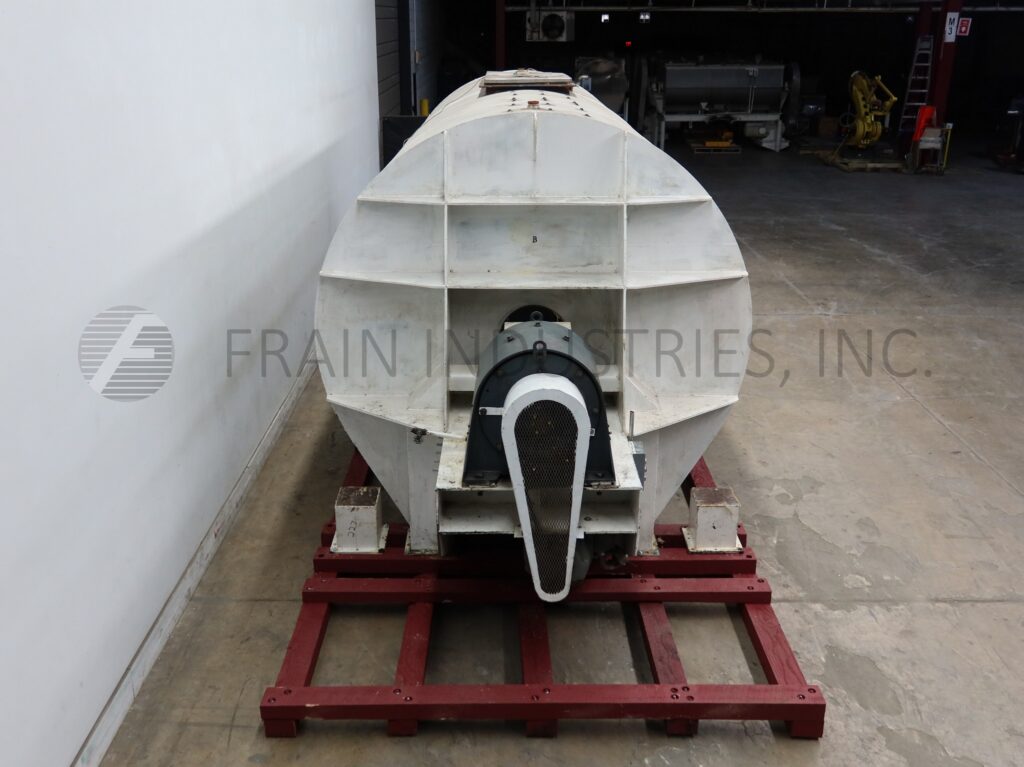

Blommer Candy Chocolate Melter 60,000 LBS

• Manufacturer: Blommer
• Model Number: 60,000 LBS
• Frain Number: 5J2551

Blommer, 60,000 lbs (30,000 lbs per side), carbon steel, horizontal, low pressure, jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on materials and application. Inner chamber dimension: 108" in Length; 96" diameter (each side). Equipped with sweep agitator driven by 15 Hp motor drive and (2) 3" diameter end discharges with 15" ground clearance.

Jacket:
(4) 1¼" NPT

OAD: 283"L x 101"W x 120"H

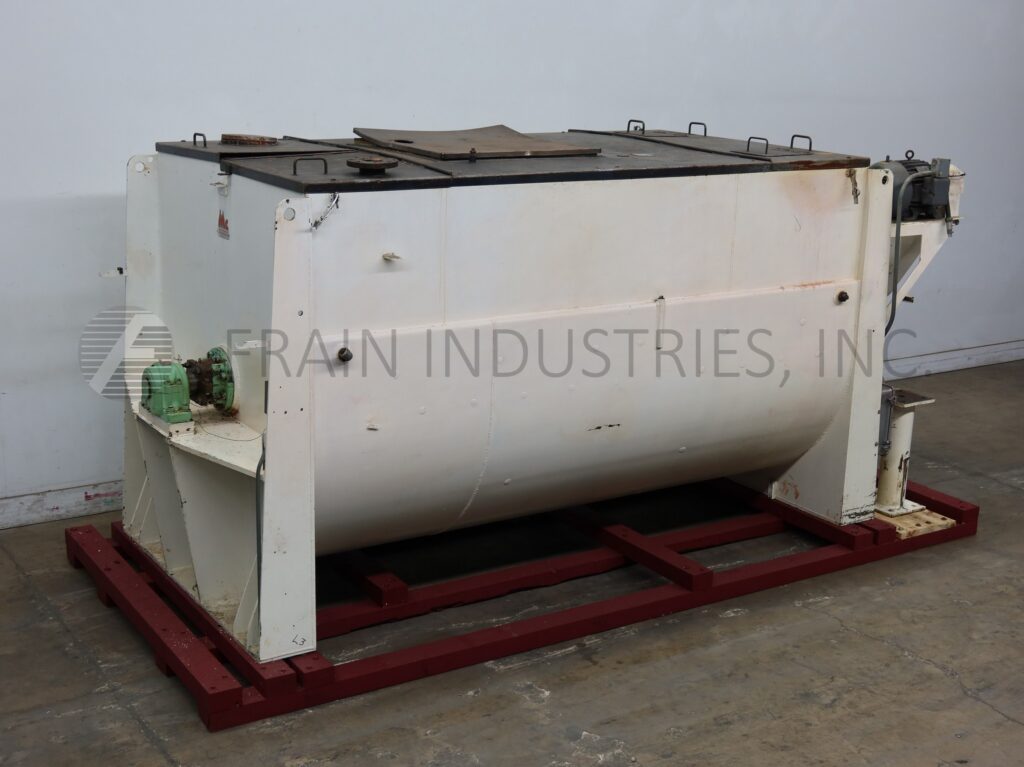

McCarter Candy Chocolate Melter 25,000 LBS

• Manufacturer: McCarter
• Model Number: 25,000 LBS
• Frain Number: 5J2550

McCarter, 25,000 lbs, carbon steel, horizontal, low pressure, ½ jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on materails and application. Inner chamber dimension: 132" in Length; 72" in Width; 75" in Depth. Equipped with sweep agitator driven by 10 Hp motor drive and 3" diameter center bottom discharge with 30" ground clearance.

Jacket:
(5) 1" NPT

OAD: 185"L x 77"W x 116"H

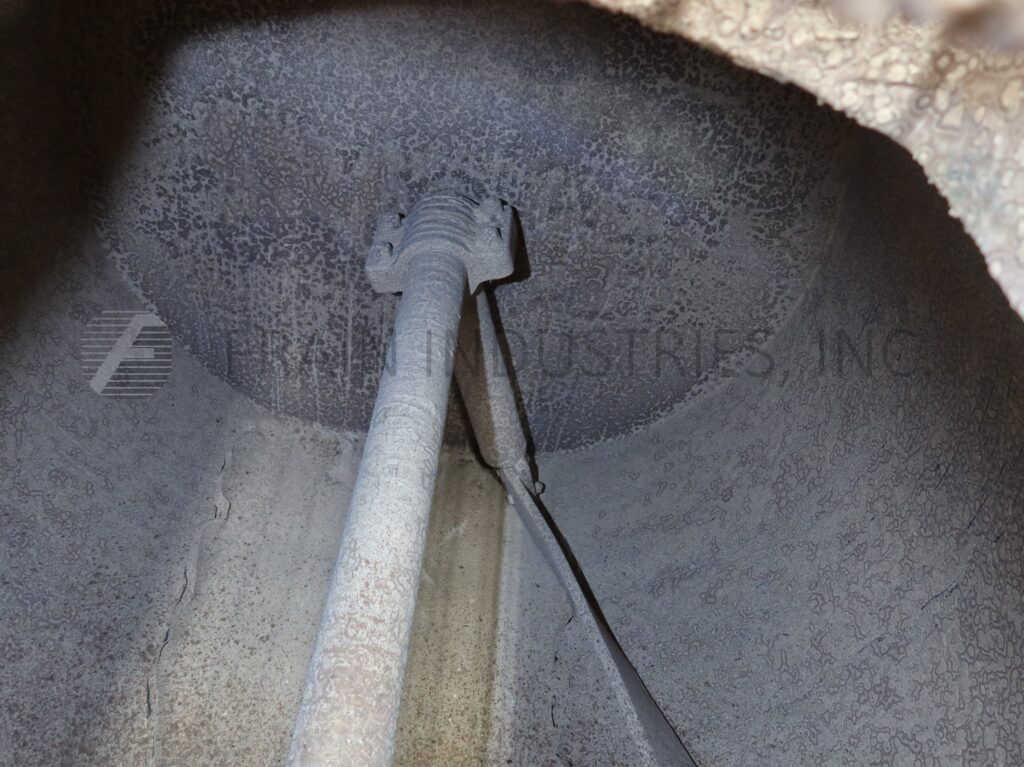

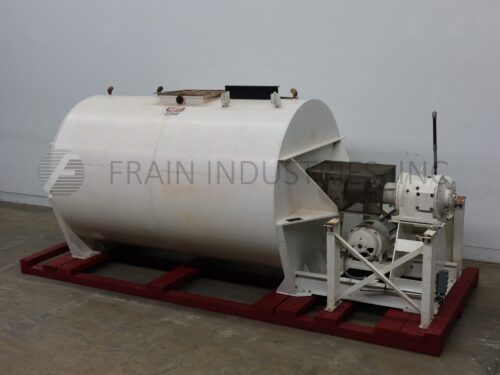

Sterling Process Equipment Candy Chocolate Melter 18,000 LBS

• Manufacturer: Sterling Process Equipment
• Model Number: 18,000 LBS
• Frain Number: 5J2554

Sterling, 18,000 lbs, carbon steel, horizontal, low pressure, jacketed, chocolate melting and mixing vessel, with pounds of product per hour – depending on materails and application. Inner chamber dimension: 120" in Length; 72" diameter. Equipped with 24" x 24" manway, sweep agitator driven by 15 Hp motor drive and 3" diameter bottom center discharge with 40" ground clearance.

Jacket:
(8) 1¼" NPT

OAD: 200"L x 75"W x 123"H

Morcos Candy Chocolate Melter AWK500

• Manufacturer: Morcos
• Model Number: AWK500
• Frain Number: R35154

Morcos, Model AWK 500, 1100 lb, stainless steel , jacketed, self contained chocolate melt tank, with pounds of product per hour – depending on materails and application. Vessel dimensions: 26" diameter x 48" deep. Equipped with sweep agitation powered by a 2 hp drive, 4.5 kw self containted heater and gear pump dischage powered by a 1 hp drive and 2" OD discharge with 15" ground clearance. Control panel with push button start / stop for agitation, on / off switches for heater and pump and digital temperature controls.

OAD: 60"L x 40"W x 90"H

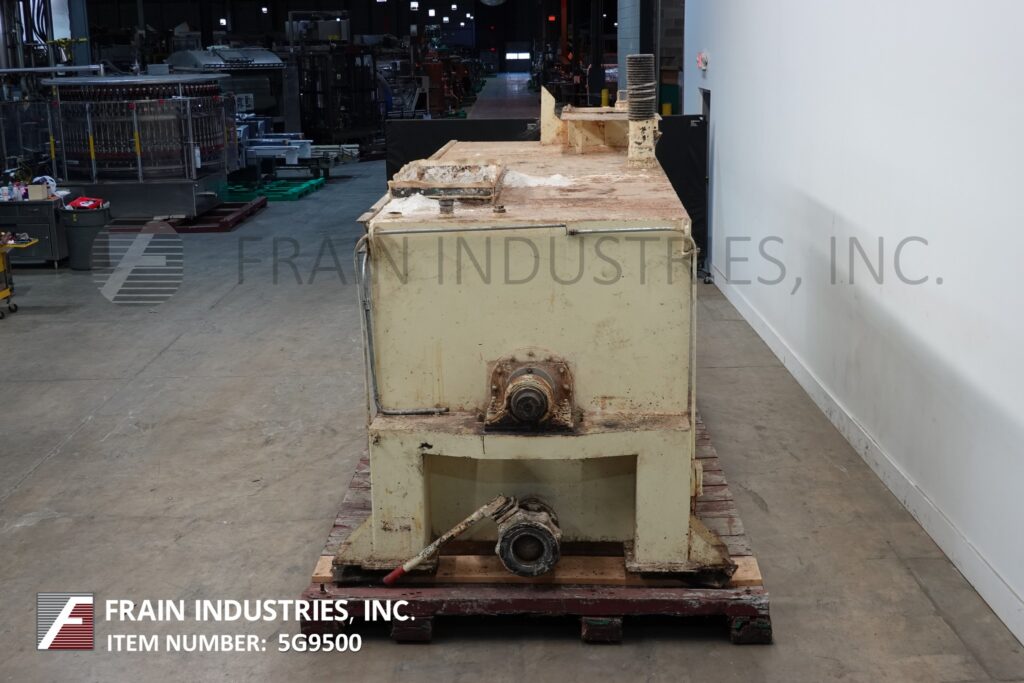

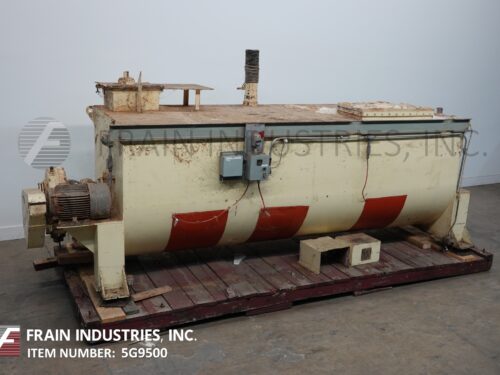

Blommer Candy Chocolate Melter 20,000LB

• Manufacturer: Blommer
• Model Number: 20,000LB
• Frain Number: 5G9500

Blommer, 20,000 lb, carbon steel, chocolate mixer, Pounds of product per hour – depending on materials and application. Vessel dimensions: 168" in Length; 60" in Width; 63" in Depth. Equipped with 19½" x 19½" port with lift off cover, 40" x 20" open port, sweep agitation powered by 15 Hp motor drive and 11"OD / 6"ID front discharge with ball valve and 2" ground clearance. Mounted on heavy duity frame.

Top Access:
(3) 2" NPT
(1) 6" diameter open vent
(1) 1¼" diameter open vent

OAD: 220" L x 78" W x 87" H
