Mixers - Paste Mixing Machines

Goodway Mixer Paste Vertical VBM-1000

• Manufacturer: Goodway
• Model Number: VBM-1000
• Frain Number: 5H1264

Goodway Model 1000 lb or 120 gallon capacity, stainless steel, slurry mixer and transfer system, with number of pound or gallons of product per hour – depending on materials and application. Equipped with 36" OD x 38 Deep, stainless steel, single wall, flat top mixing tank with 2 piece flip top, quick release clamps bolt down cover, with dry / liquid inlet ports. (8) 17" long x 3" wide x 1/2" thick rotating single motion mixing blades and (4) 17" long x 3" wide x 1/2" thick stationary fixed blades each side.. Flat bottom has bottom Flat bottom has bottom tank support assembly with heavy duty gear reducer and 4-1/2" OD pump out discharge port with a Waukeshaw Model 60 PD pump has 3" OD / 2-1/2" ID threaded in/outlet ports. Control panel has start, stop, e-stop push button controls with cycle counter. Mounted on 75" long x 48" wide platform plate base stand. Designed for cake or other batters or to prepare a uniform unaerated premix of ingredients for use with a continous mixer.

OAD: 75" L x 48" W x 66" H

Mixer Paste Vertical DEAERATOR

• Model Number: DEAERATOR
• Frain Number: 5G9653

Stainless steel, 50 gallon, bottom driven deaerator. Equipped with a bolt down cover with (2) 4" diameter sight glasses, 30" diameter x 24" deep vessel, 20" diameter spinning disc powered by a 7½ hp drive, 2½" OD / 2" ID product charge and 7½" OD / 5¾" ID bottom discharge.

OAD: 42"L x 33"W x 49"H

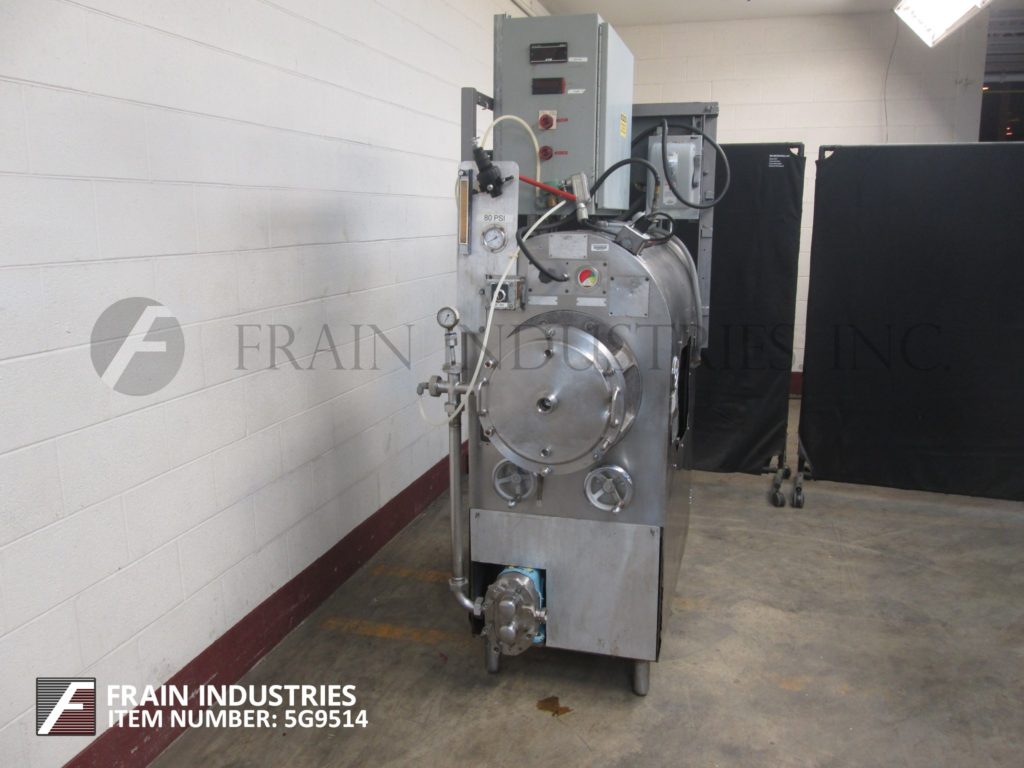

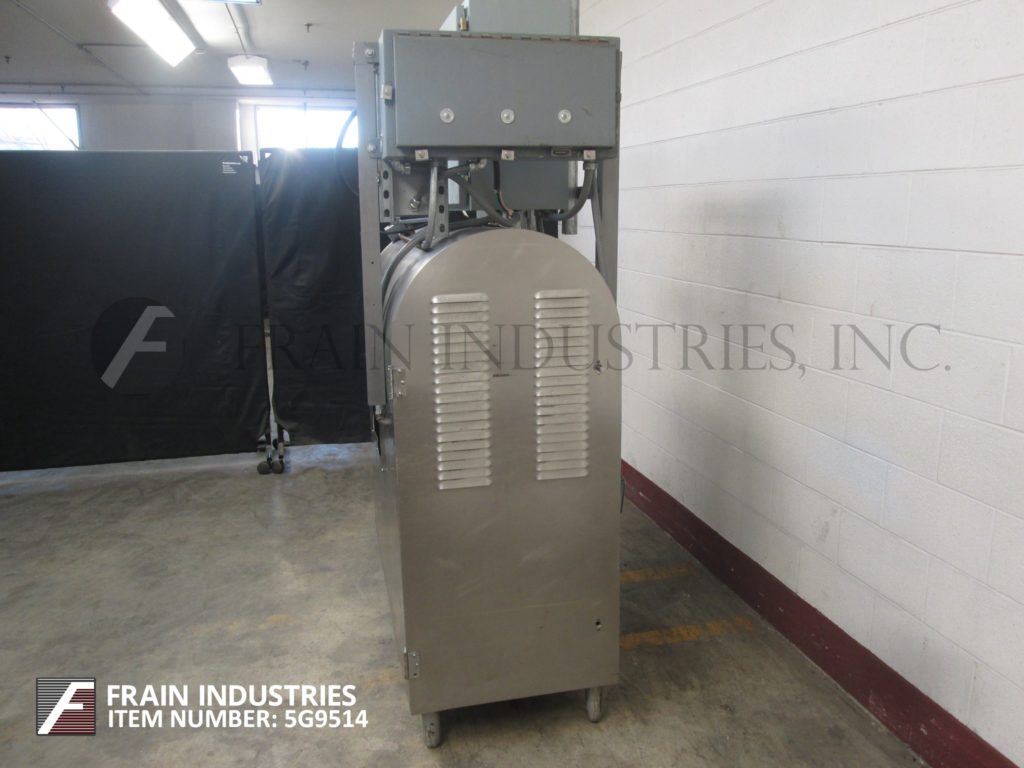

Oakes Mixer Paste Horizontal 14MC10

• Manufacturer: Oakes
• Model Number: 14MC10
• Frain Number: 5G9514

Oakes Model 14MC10, high shear, continuous, rotor and stator, pin mill rrated up to 4000 lb per hour – depending on materials and application. Equipped with 16" OD 14" ID mixing head, 2" OD center product port, radial flow disc, with high shear action consisting of front / rear stator and rotor with drive shaft, rated to ___ rpm. has __ Hp main motor, drive, with Waukeshaw PD pump with 2" OD / 1-1/2" ID pump inlet / outlets Control Panel with start, stop and e-stop controls. Mounted on (4) leg stainless steel base frame.

OAD: 56" L x 28" W x 82" H

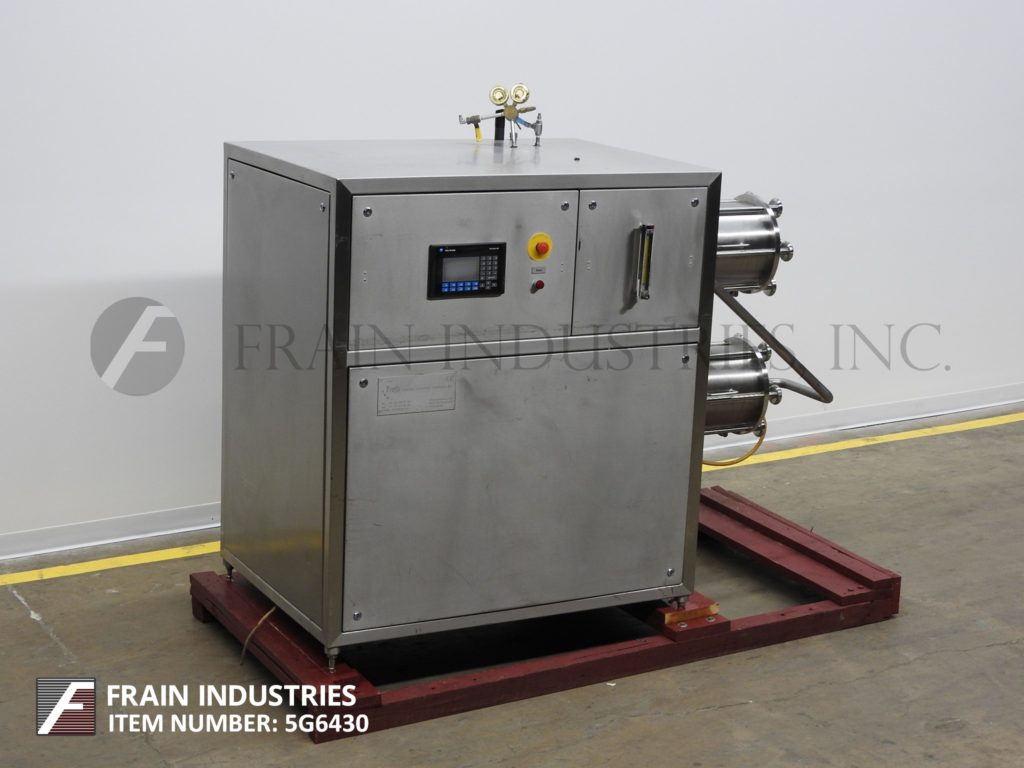

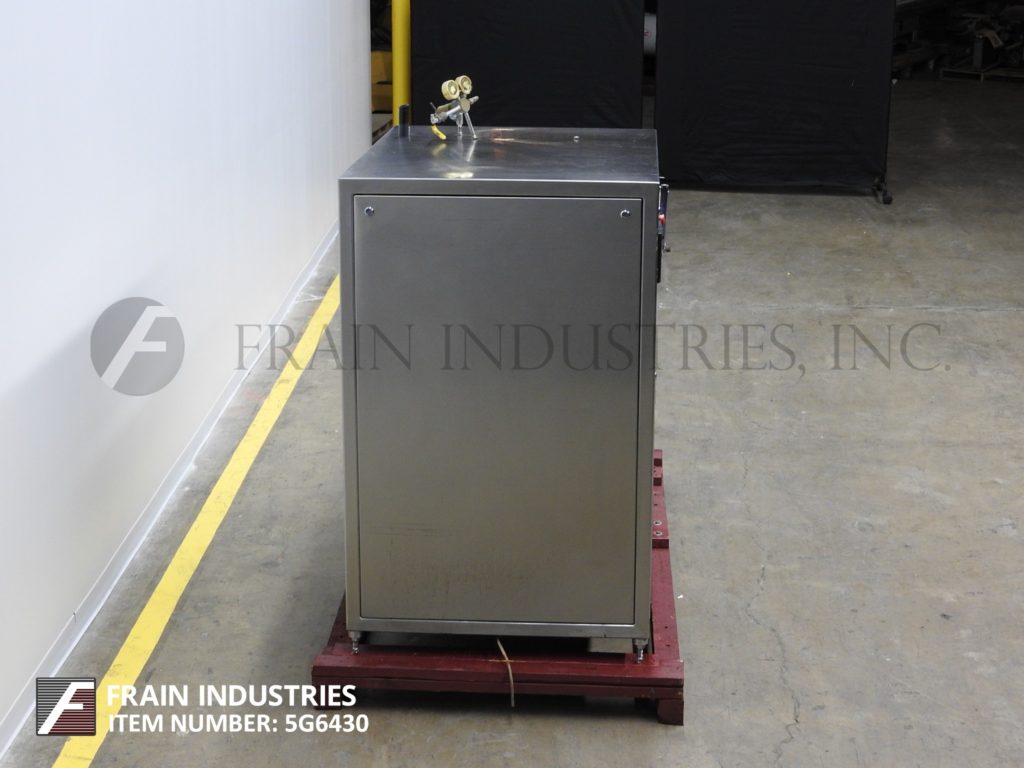

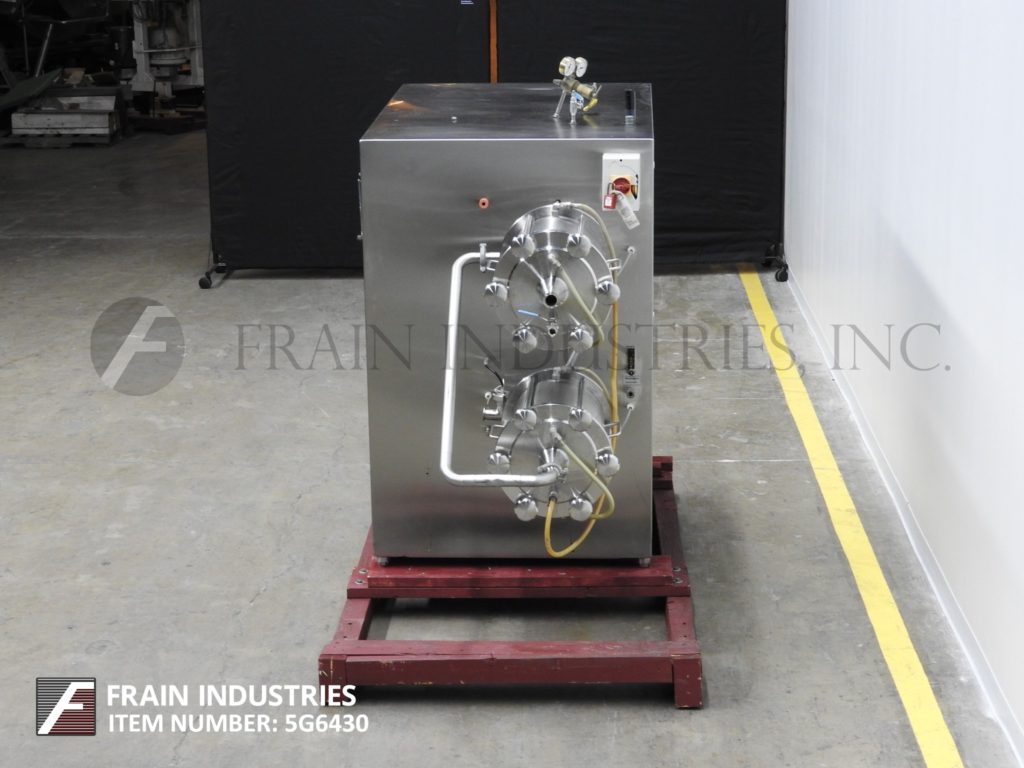

Trefa Mixer Paste Horizontal T2000

• Manufacturer: Trefa
• Model Number: T2000
• Frain Number: 5G6430

Trefa Model 2000, dual head, stainless steel, continuous, mixing / aerating system rated from 100 to 2000 kg per hour, per head – depending on materials and application. Equipped with 15-1/2" long x 10" ID dual, jacketed pin style rotor / stator closed production mixing heads used for higher degree of sanitation and has 1-1/2" OD inlet, 2-1/2" OD outlet with bolt down removable covers. A/B controller has touch pad controls with read out and vari speed controllers, with (2) pressure gauges and e-stop. Mounted on stainless steel frame with casters. Continuous mixers provide homogenous mixing resulting in consistent final densities and modular design is easy to integrate into existing lines.

OAD: 96" L x 42" W x 72" H

Readco Mixer Paste Double Arm 5 GAL

• Manufacturer: Readco
• Model Number: 5 GAL
• Frain Number: 5G7871

Read Co, 5 gallon, dual sigma jacketed mixer. Internal mixing chamber dimmesions of 12½" long x 13¼" wide x 12" deep for a working capacity of 5 gal. Equipped with 316 stainless steel contact parts, a 15½" x 17" lift up lid, 8" wide x 1½" thick dual sigma blades powered by a 5 Hp drive, manual crank wheel tilt discharge with a 28" discharge height and push button start / stop controls. Mounted on a painted base frame.

Jacket Fittings:
(2) ½" NPT
(2) (3/8)" NPT

MAWP: 150 psi @ 650°F
Nat’l Brd: 670

OAD: 63"L x 45"W x 45"H

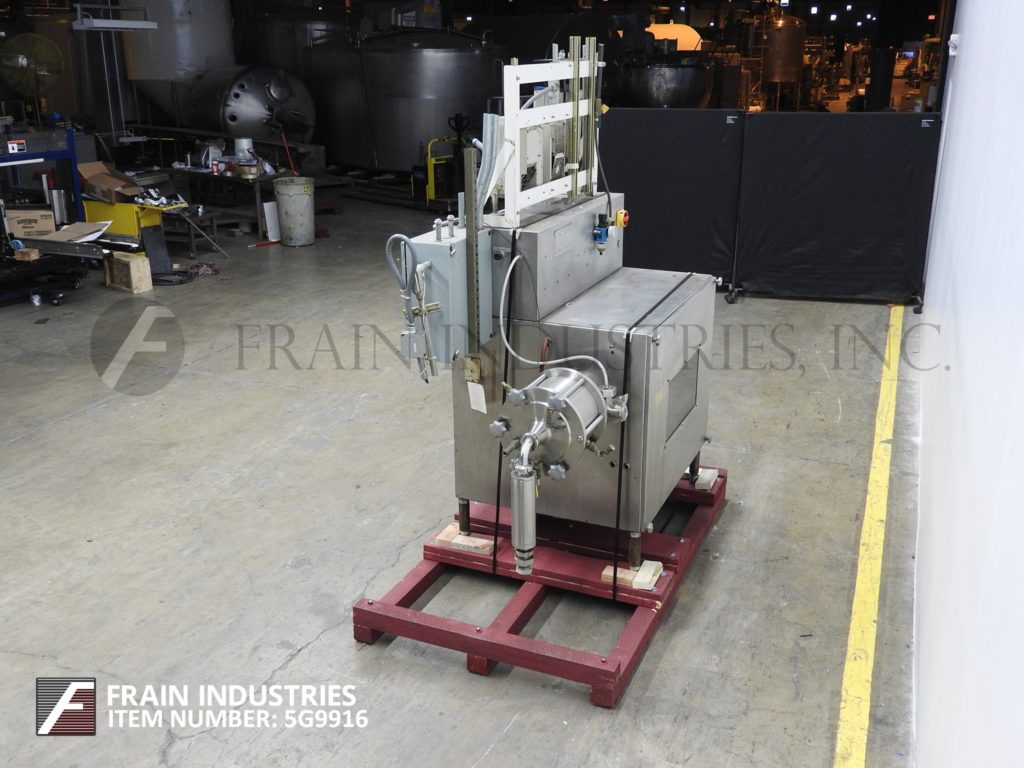

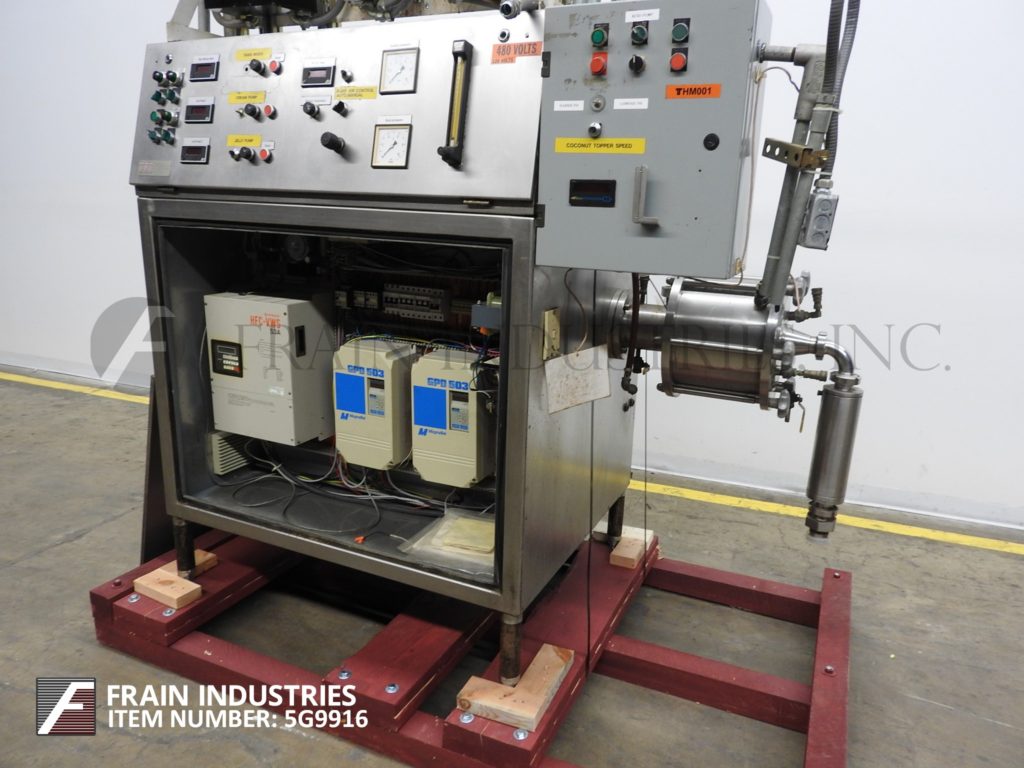

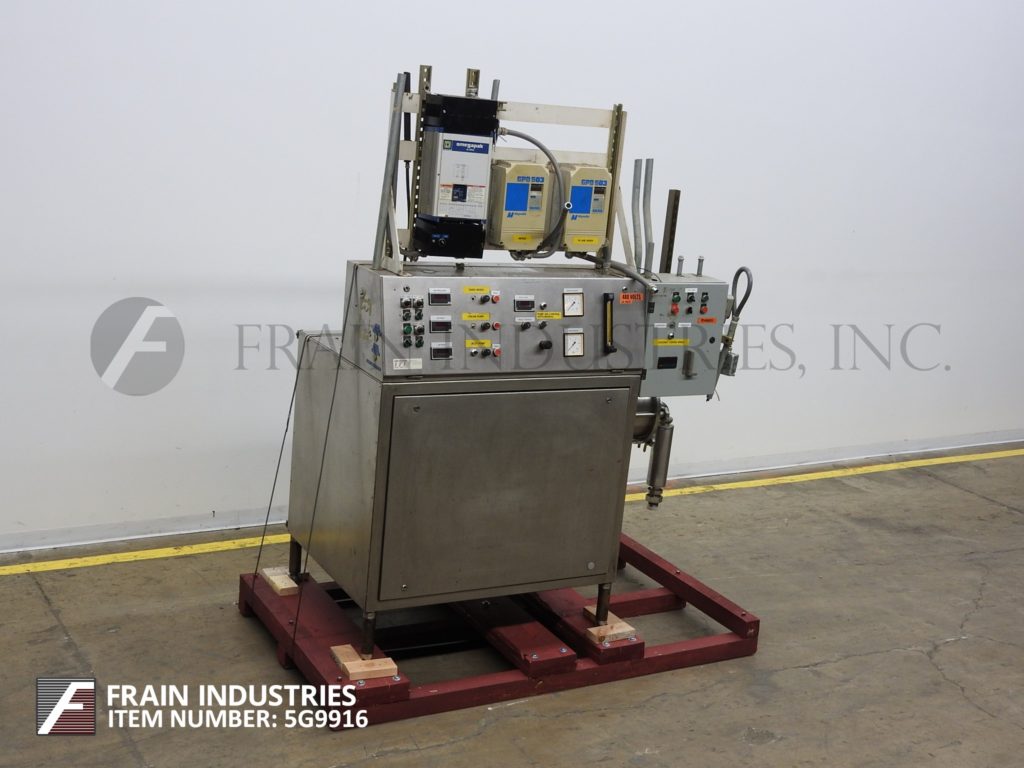

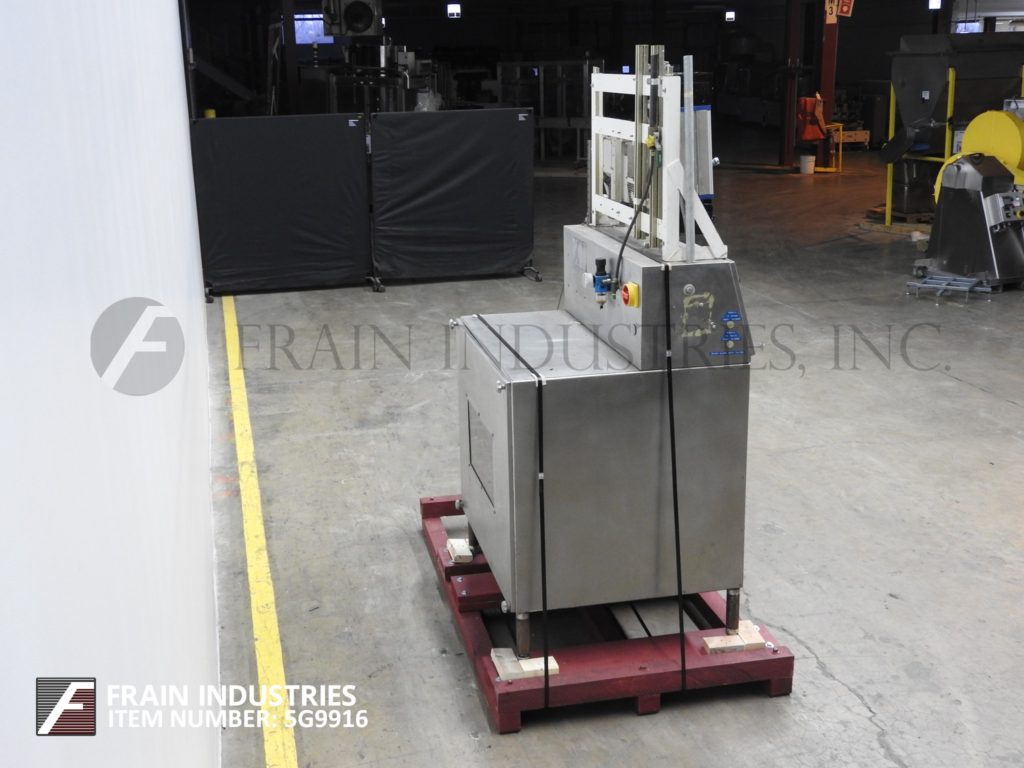

Tanis Food Tech BV Mixer Paste Horizontal ROTOPLUS

• Manufacturer: Tanis Food Tech BV
• Model Number: ROTOPLUS
• Frain Number: 5G9916

Tanis Food Tec, stainless steel, high shear, continuous motion, rotor / stator, mixer. Rated from 600 to 4,000 lb of product per hour – depending on materials, application and machine configuration. Equipped with 12" OD mixing head, bolt down cover, 2½"OD / 2"ID Tri-clamp style charge port and 2½"OD / 1½"ID seated bevel style discharge with 33" ground clearance. Rotor powered by a 14¾ hp drive. Control panel with on / off switch, variable speed dial, air flow control dial and mixing head rpm display.

OAD: 70"L x 38"W x 94"H

Automated Food Systems Mixer Paste Horizontal 5 FT³

• Manufacturer: Automated Food Systems
• Model Number: 5 FT³
• Frain Number: 5H0440

Automated Food Systems, 5 ft³, 304 stainless steel, paddle mixer with number of product per hour – depending on materials, application and machine configuration. Inner mixing chamber dimensions: 24" in Length; 24" in Width; 28" in Depth. Equipped with flip up cover, 1½" OD mixing shaft with (4) wire beater paddles, (2) 1½" OD charge ports, 3½"OD / 3" ID Tri-clamp style center bottom discharge with butterfly valve and 11" floor clearence. Powered by a 5 Hp. Control panel with an AB controller, push button start / stop and timer indicator. Mounted on a stainless steel frame base with leveling legs.

OAD: 55"L x 35"W x 71"H

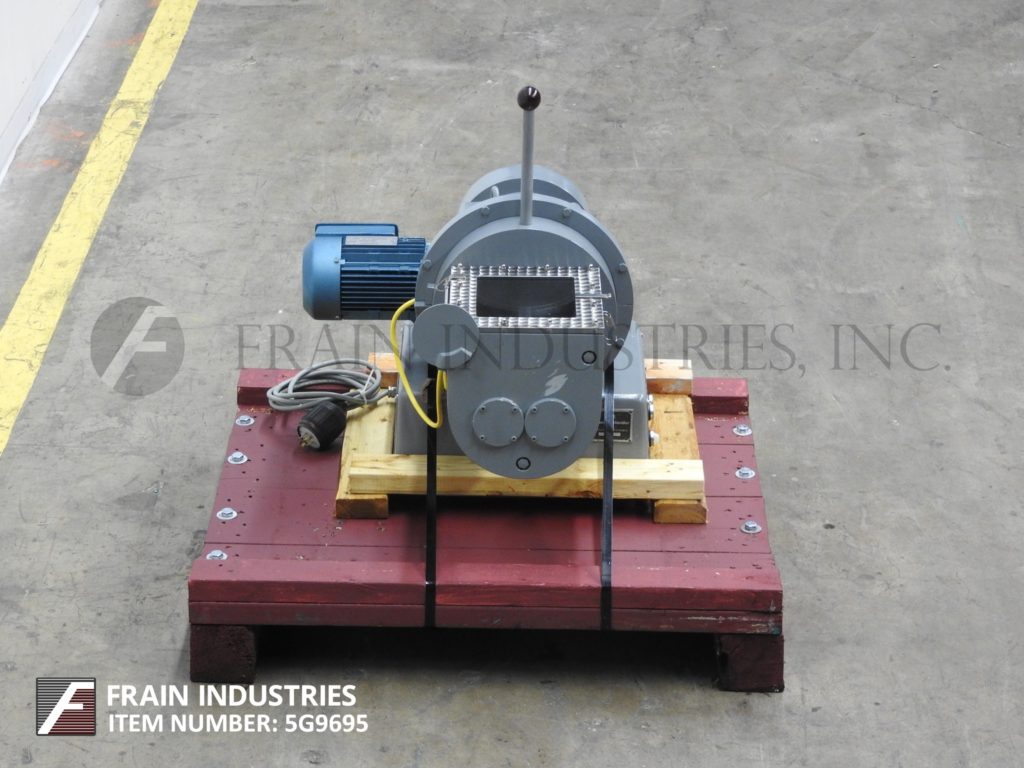

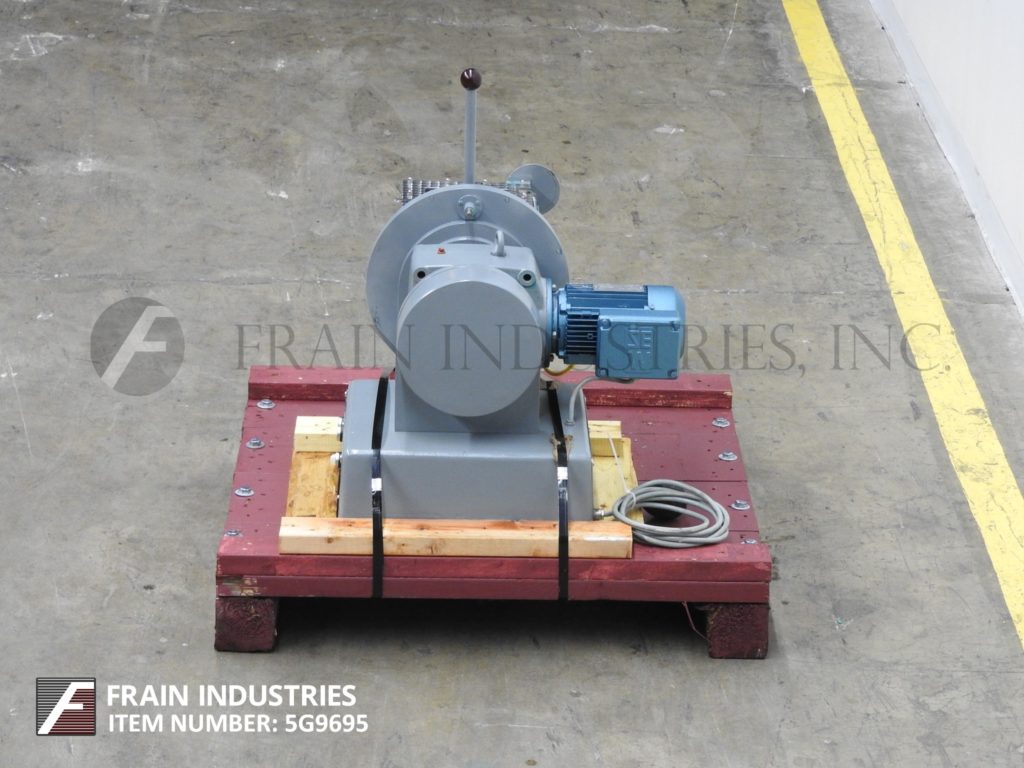

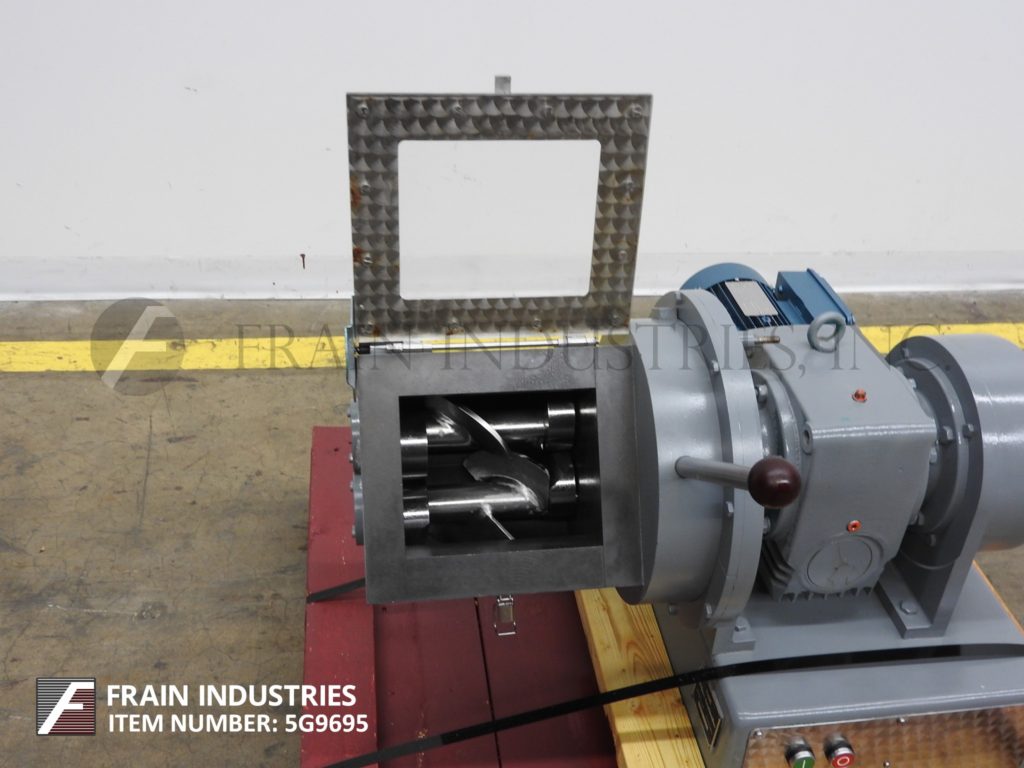

SELA Maschinen Gmbh Mixer Paste Double Arm 1 GAL

• Manufacturer: SELA Maschinen Gmbh
• Model Number: 1 GAL
• Frain Number: 5G9695

Sela, Weber & Seelander, 1 gallon, double arm naben mixer. Internal mixing chamber dimensions of 8" long x 7" wide x 8" deep for a working capacity of 1 gal. Equipped with 304 stainless steel mixer arms, a 11" x 9¾" lift up lid, 5" long x 1½" high x ¼" thick naben blades powered by a 1 Hp drive, manual tilt discharge with a 10" discharge height and push button start / stop controls. Mounted on a painted base frame.

OAD: 30"L x 24"W x 31"H

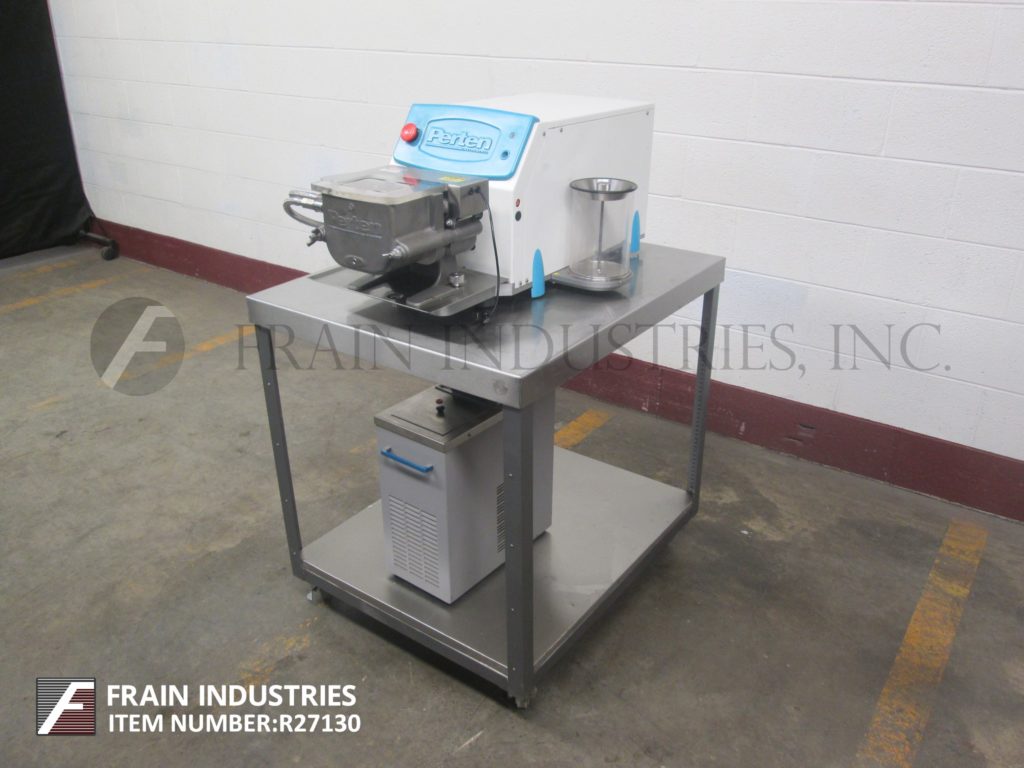

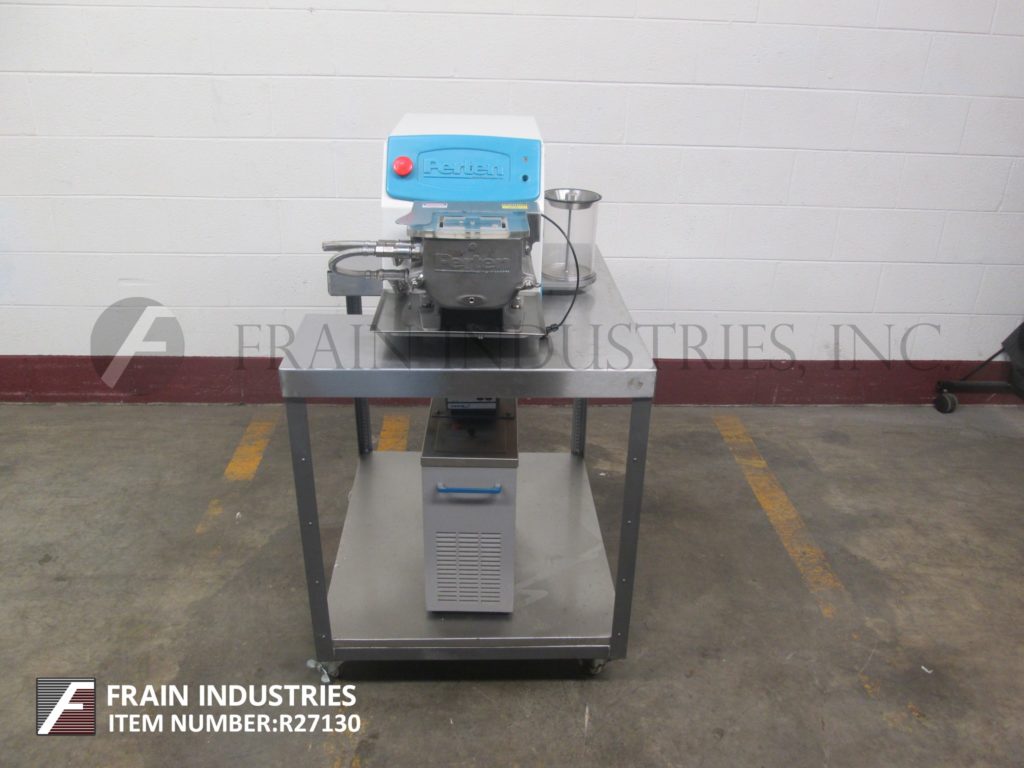

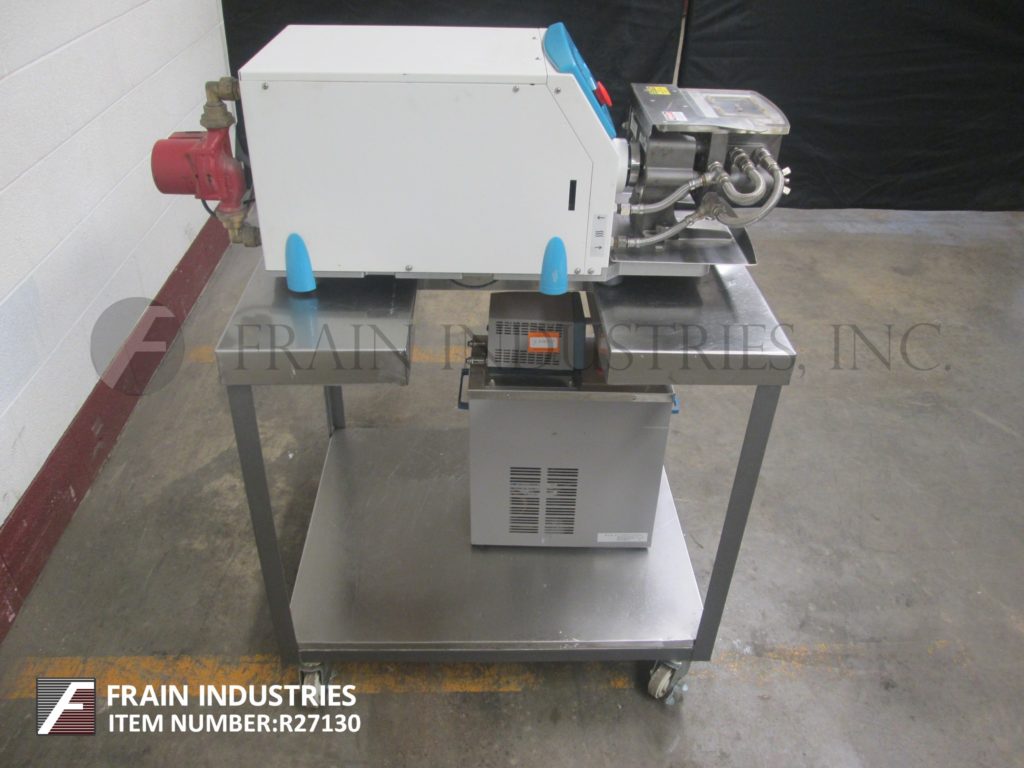

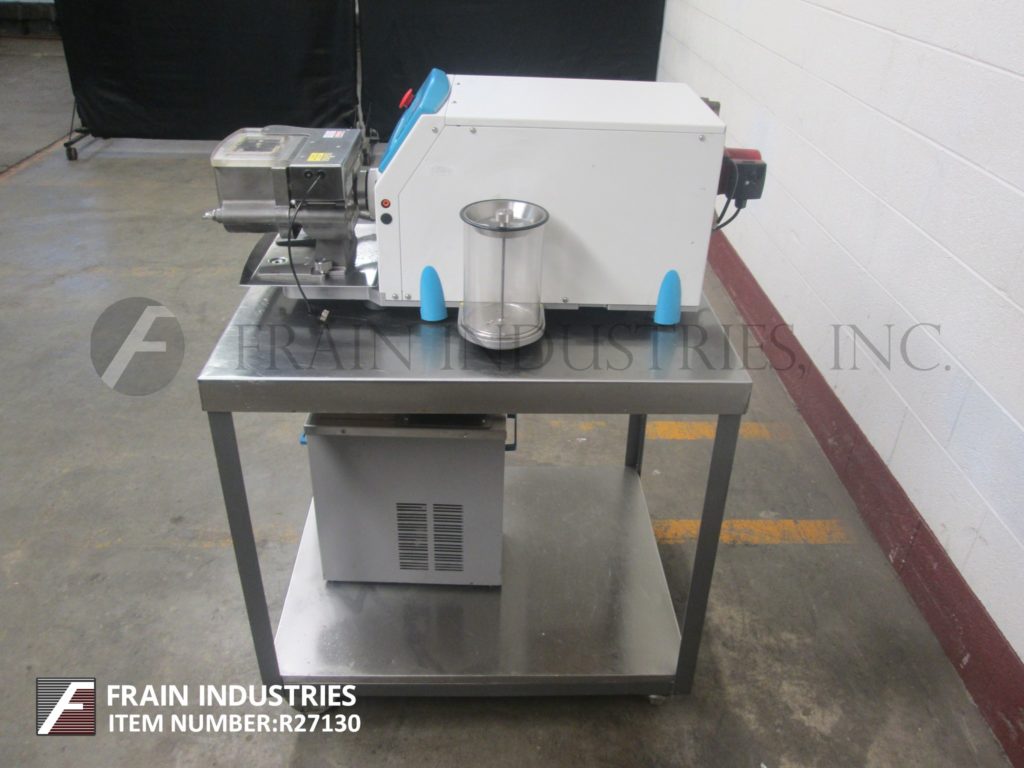

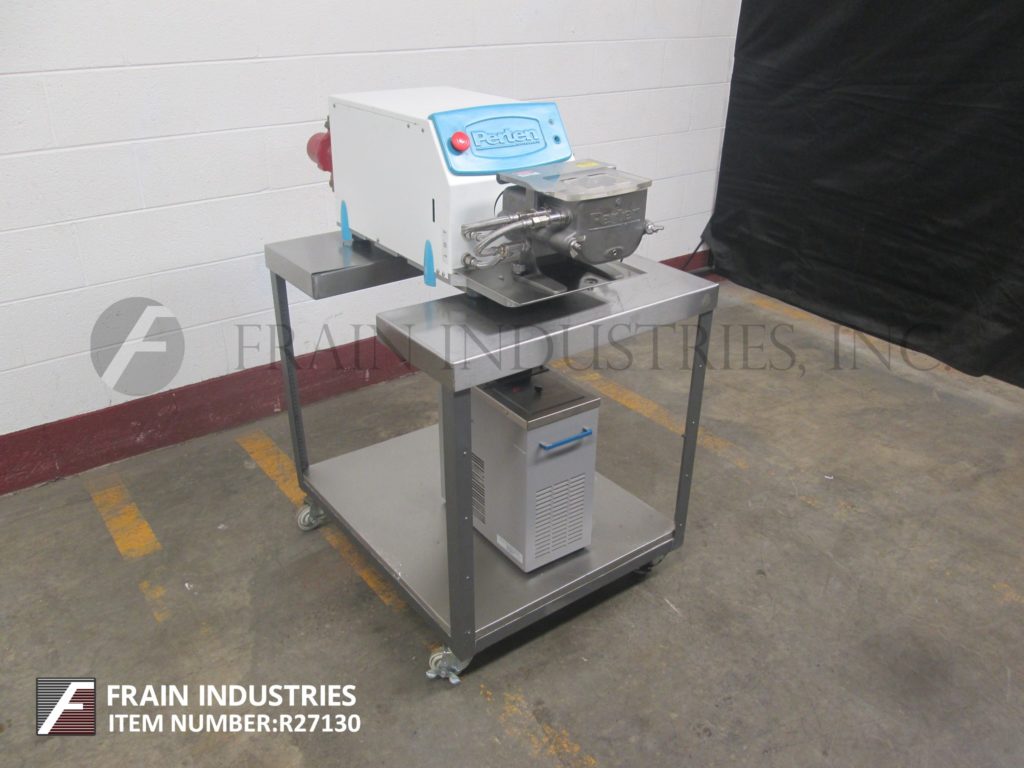

Perten North America Mixer Paste Double Arm DOUGHLAB

• Manufacturer: Perten North America
• Model Number: DOUGHLAB
• Frain Number: R27130

Newport Scientific, Model DOUGHLAB, stainless steel, jacketed, dual sigma table top lab dough analyser. Equipped with 3¼" long x 4¾" wide x 4½" deep mixing chamber with dual 3¼" long x 2½" wide x (1/8)" Thick sigma style mixing blades and VWR 6 liter reservoir cooling / heating circulating bath system. Determines water absorption of flour and dough development time and other dough mixing parameters. Uses the traditional 20 minute test and the new 10 minute high speed mixing test that increases lab through put and efficiency and improves analysis results by making it easier to interpret samples with long development times.

OAD: 40"L x 24"W x 14"H

Colton Mixer Paste Horizontal 6 FT³

• Manufacturer: Colton
• Model Number: 6 FT³
• Frain Number: 5G7635

7 ft³ ( 5.7 ft³ workable), paddle mixer with stainless steel contact parts. Inner mixing chamber dimensions: 26" in Length; 19" in Width; 23" in Depth. Equipped with a 1½" diameter motor shaft, 1½" diameter mixing shaft with 1½" x 8" stainless steel paddles powered by a 2 Hp drive with variable speed control, Waukesha model 60 positive displacement pump powered by a 2 hp drive with a variable speed gearbox and 3" OD / 2½" ID Tri-clamp style discharge with 9" ground clearance. Mounted on stainless steel base frame with casters.

OAD: 48" L x 28" W x 55" H

Oakes Mixer Paste Horizontal 14MF20I

• Manufacturer: Oakes
• Model Number: 14MF20I
• Frain Number: R26850

Oakes Model 14MF, stainless steel, high shear, continuous rotor / stator, pin mill mixer rated up to 4,000 lbs per hour – depending on materials, application and machine configeration. Equipped with 14" diameter jacketed mixing head with 2-1/2" OD product inlet, radial flow disc with high shear action consisting of front / rear stator and 15 Hp motor. Waukesha Model 30 feed pump geared to 245 gallons per hour. Control panel with start / stop controls, counters and dual variable speed drives (mix head and pump). Mounted on heavy duty base frame.

OAD: 70" L x 36" W x 62" H

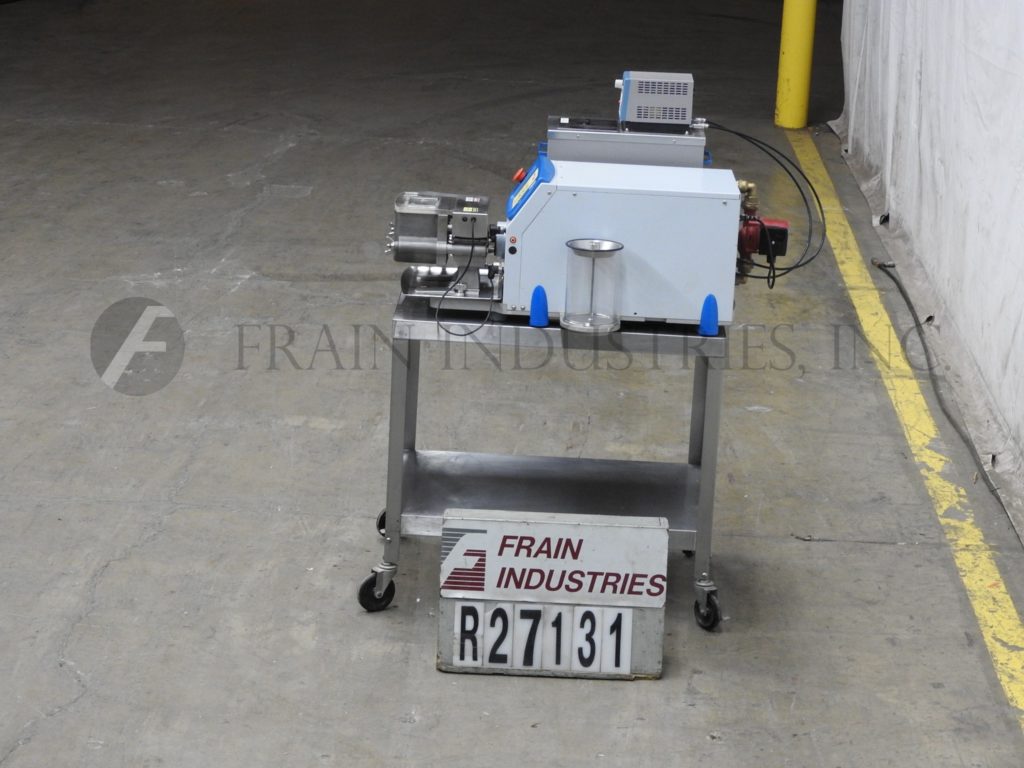

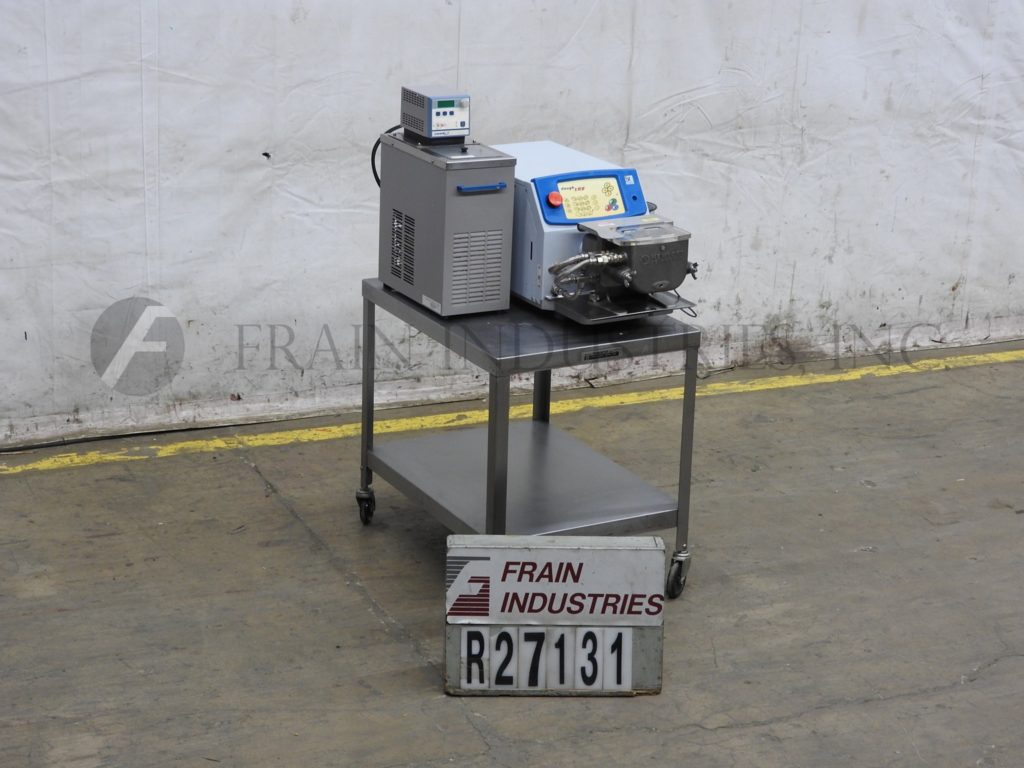

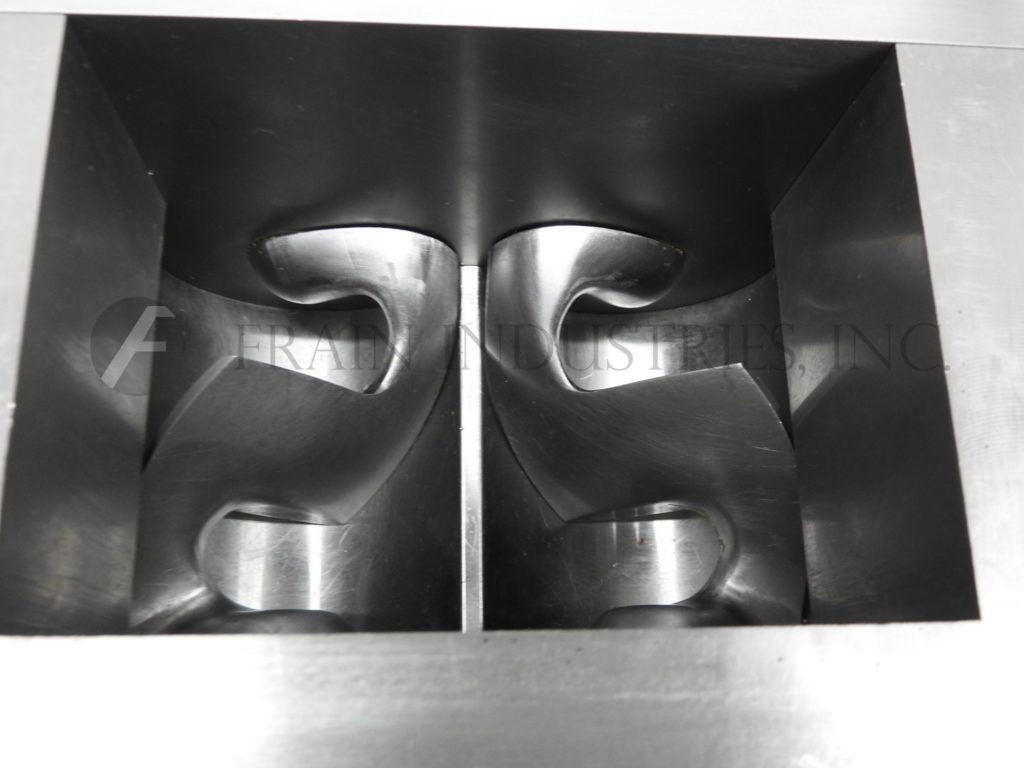

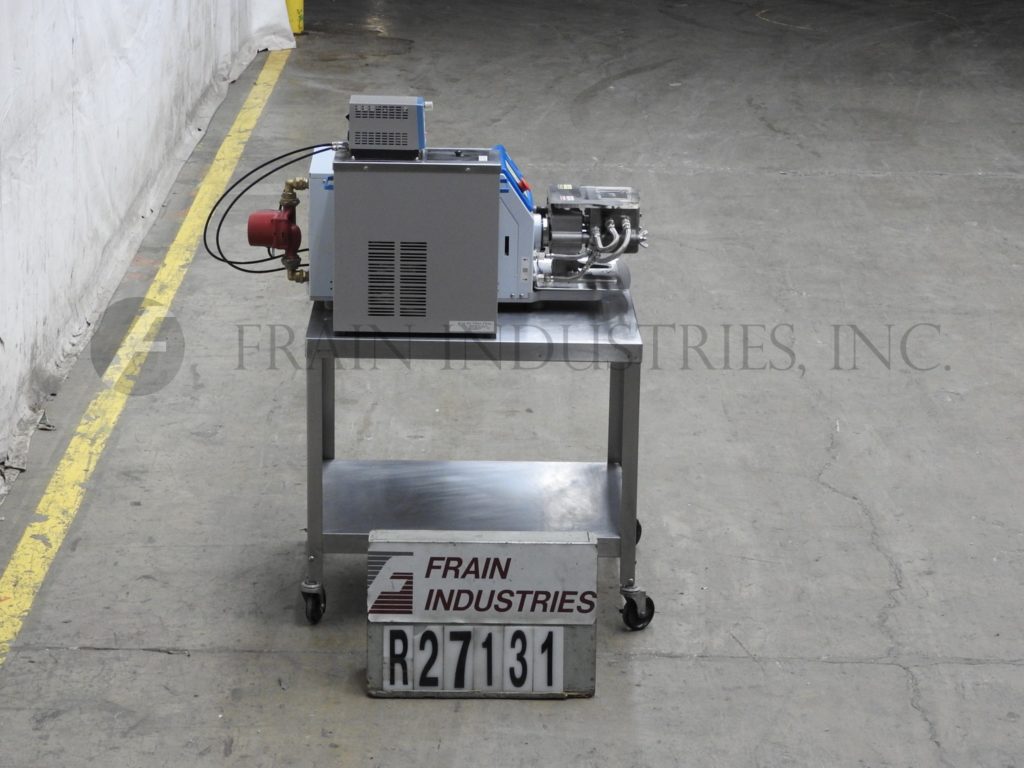

Newport / Perten Scientific No Mixer Paste Double Arm DOUGHLAB

• Manufacturer: Newport / Perten Scientific No
• Model Number: DOUGHLAB
• Frain Number: R27131

Newport Scientific, Model DOUGHLAB, stainless steel, jacketed, dual sigma table top lab dough analyzer. Equipped with 3¼" long x 4¾" wide x 4½" deep mixing chamber with dual 3¼" long x 2½" wide x (1/8)" Thick sigma style mixing blades and VWR 6 liter reservoir cooling / heating circulating bath system. Determines water absorption of flour and dough development time and other dough mixing parameters. Uses the traditional 20 minute test and the new 10 minute high speed mixing test that increases lab through put and efficiency and improves analysis results by making it easier to interpret samples with long development times.

OAD: 40"L x 24"W x 14"H
