Stainless Steel Single Wall Machines

Lee Tank SS Single Wall 40CB

• Manufacturer: Lee
• Model Number: 40CB
• Frain Number: R32920

Lee, 40 gallon total capacity, 316 stainless steel mixing tank. Vessel dimensions: 23" diameter x 27" deep with a 24" straight wall. Equipped with clamp down lid, side mounted prop mixer powered by a pneumatic drive. Dish bottom has 2"OD / 1½"ID Tri-Clamp style discharge with 25" ground clearance. Mounted on (4) stainless steel legs with casters.

OAD: 40"L x 40"W x 80"H

Lee Tank SS Single Wall 100DBT

• Manufacturer: Lee
• Model Number: 100DBT
• Frain Number: R33972

Lee, Model 100 DBT, 304 stainless steel tank. Vessel dimensions: 30" diameter x 38" deep with a 35" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge. Mounted on (4) stainless steel legs with casters.

OAD: 42"L x 40"W x 80"H

Lee Tank SS Single Wall 150DBT

• Manufacturer: Lee
• Model Number: 150DBT
• Frain Number: R33970

Lee, Model 150 DBT, 304 stainless steel tank. Vessel dimensions: 36" diameter x 48" deep with a 35" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge with butterfly valve and 10" ground clearance. Mounted on (4) stainless steel legs with casters.

OAD: 48"L x 42"W x 80"H

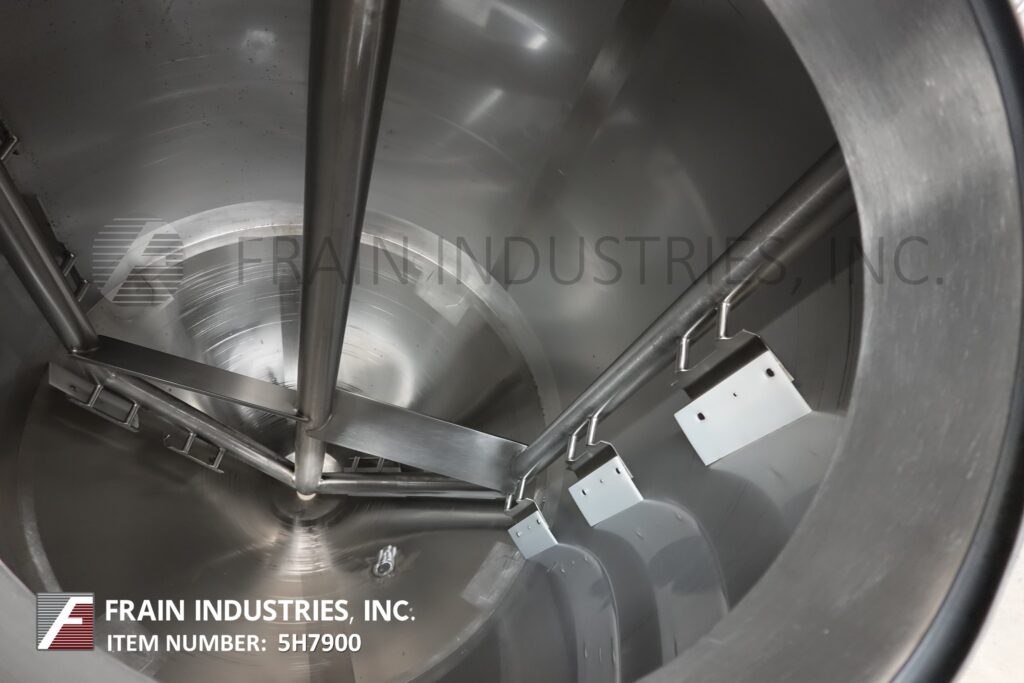

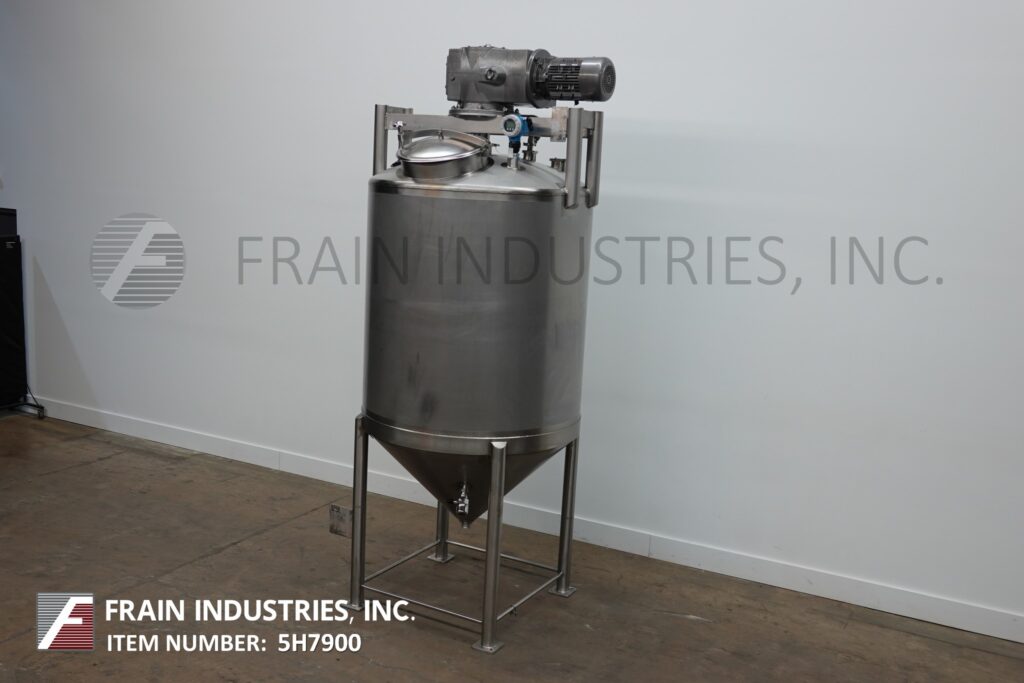

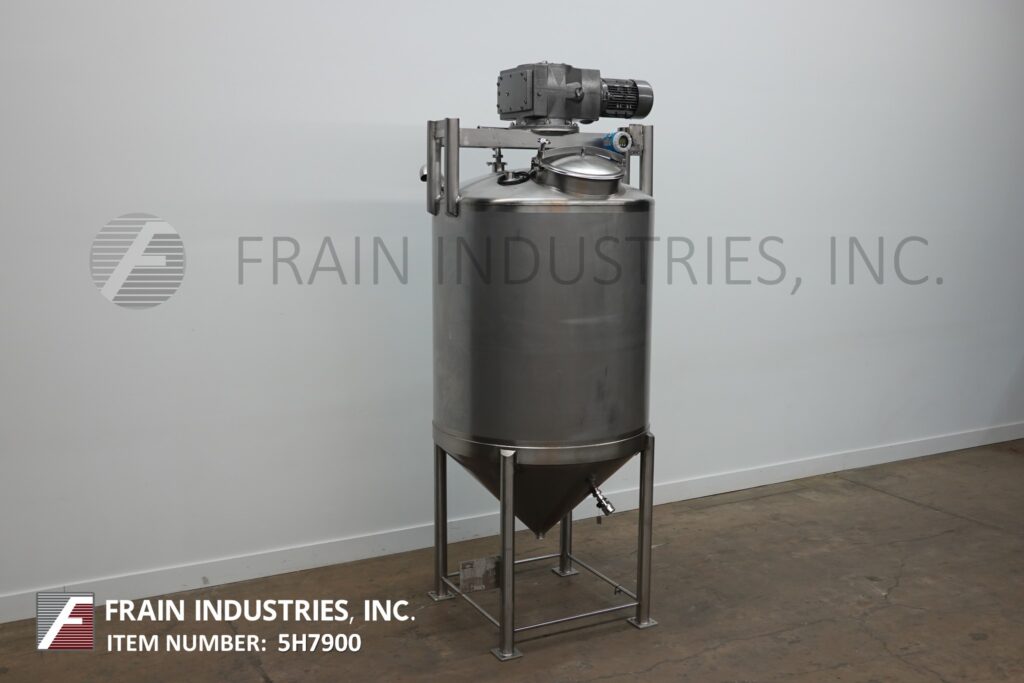

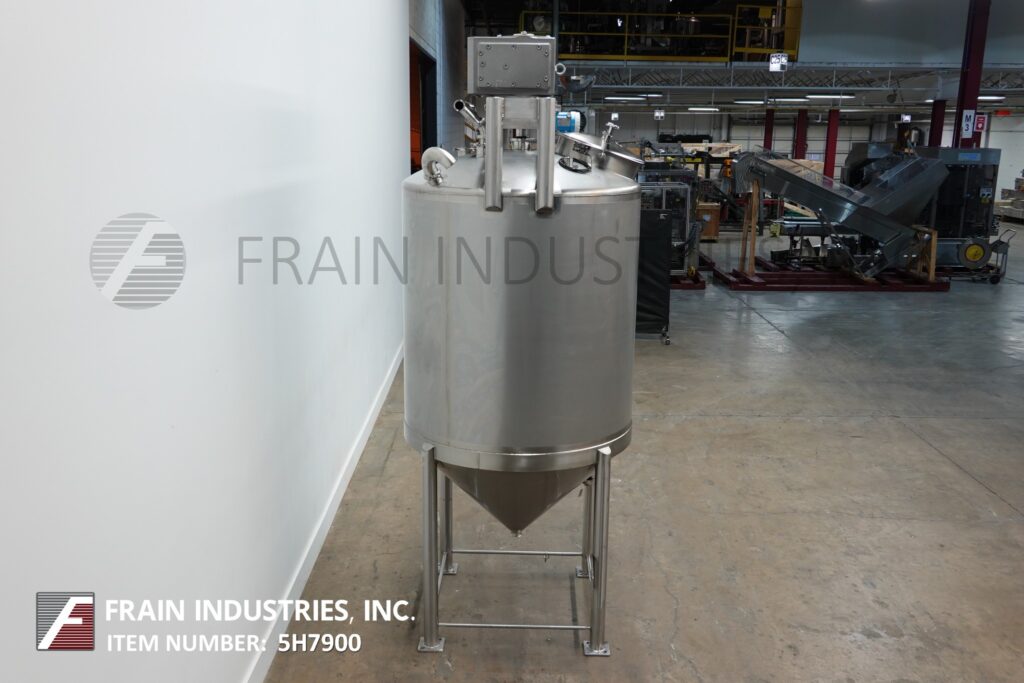

Tank SS Single Wall 500GAL

• Model Number: 500GAL
• Frain Number: 5H7900

500 gallon, 304 stainless steel, processing tank. Vessel dimensions: 55" ID x 60" straight wall. Equipped with a 10 Hp top bridge mounted scrape agitator, 19" diameter manway, (1) flush mount sensor port and CIP spray balls supplied by a 2½"OD / 2"ID tri-clamp fitting. Cone bottom has 3"OD / 2½"ID Tri-Clamp center discharge with 20" ground clearance. Mounted on (4) leg frame.

Top Access:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp

OAD: 62"L x 55"W x 142"H

Lee Tank SS Single Wall 150DBT

• Manufacturer: Lee
• Model Number: 150DBT
• Frain Number: R33975

Lee, Model 150 DBT, 304 stainless steel tank. Vessel dimensions: 36" diameter x 48" deep with a 35" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge with butterfly valve and 10" ground clearance. Mounted on (4) stainless steel legs with casters.

OAD: 48"L x 42"W x 80"H

Lee Tank SS Single Wall 100DBT

• Manufacturer: Lee
• Model Number: 100DBT
• Frain Number: R33971

Lee, Model 100 DBT, 304 stainless steel tank. Vessel dimensions: 30" diameter x 38" deep with a 35" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge with butterfly valve and 10" ground clearance. Mounted on (4) stainless steel legs with casters.

OAD: 42"L x 40"W x 80"H

Lee Tank SS Single Wall 200DBT

• Manufacturer: Lee
• Model Number: 200DBT
• Frain Number: R33973

Lee, Model 200 DBT, 304 stainless steel tank. Vessel dimensions: 36" diameter x 51" deep with a 46" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge with butterfly valve and 10" ground clearance. Mounted on (4) stainless steel legs with casters.

OAD: 46"L x 43"W x 92"H

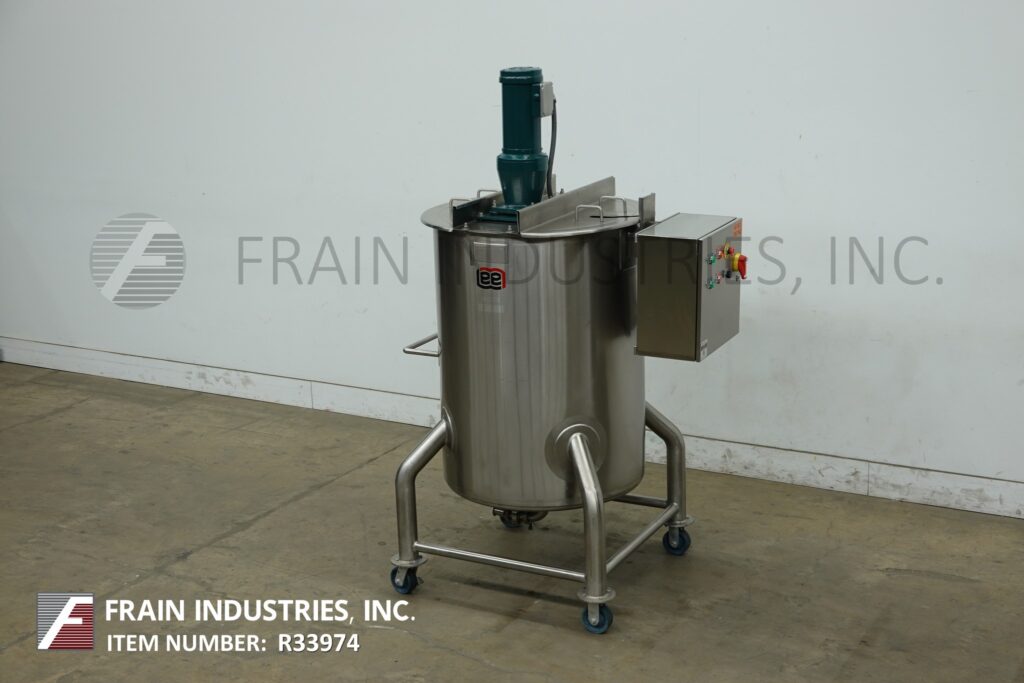

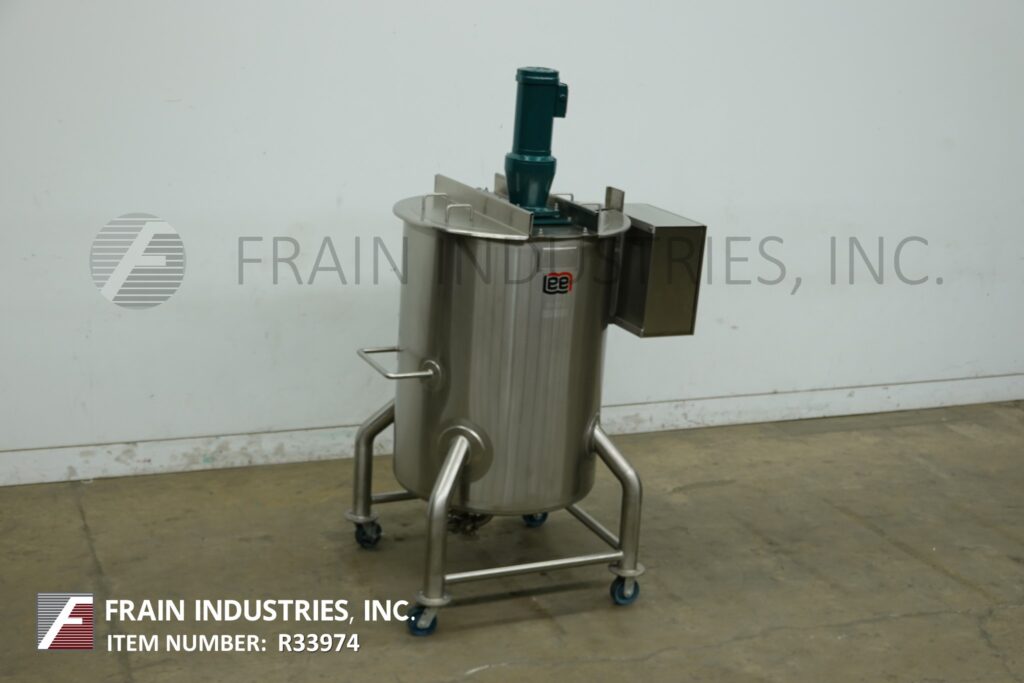

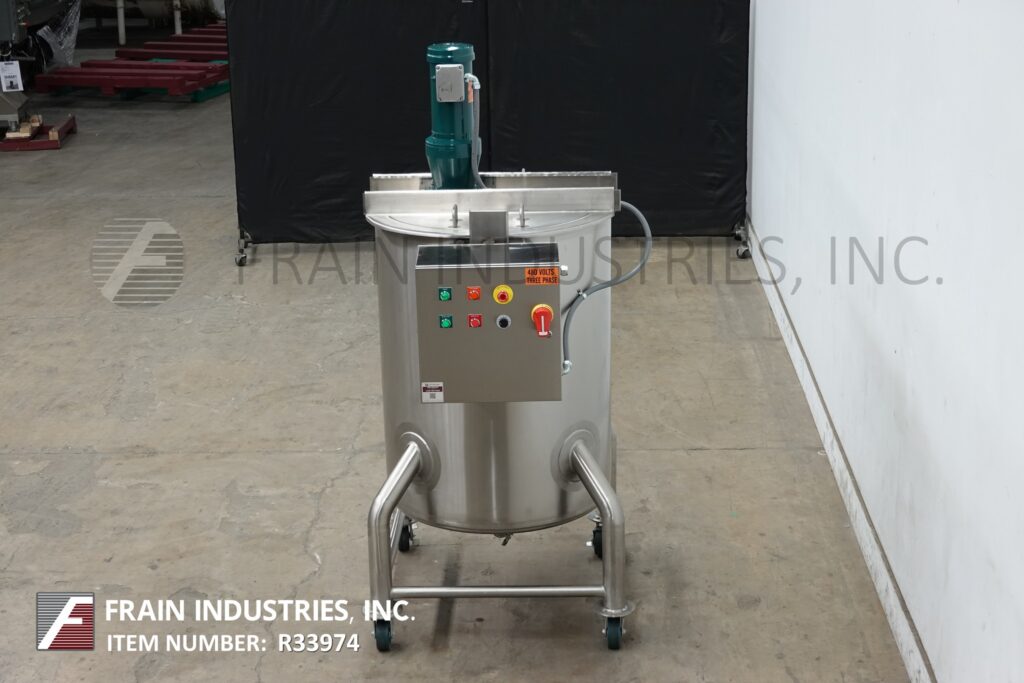

Lee Tank SS Single Wall 200DBT

• Manufacturer: Lee
• Model Number: 200DBT
• Frain Number: R33974

Lee, Model 200 DBT, 304 stainless steel tank. Vessel dimensions: 36" diameter x 51" deep with a 46" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge with butterfly valve and 10" ground clearance. Mounted on (4) stainless steel legs with casters.

OAD: 46"L x 43"W x 92"H

Apache Tank SS Single Wall 1000 GAL

• Manufacturer: Apache
• Model Number: 1000 GAL
• Frain Number: 5H7140

Apache, 1000 Gallon, 316 stainless steel, insulated single wall storage tank. Vessel dimensions: 72" in diameter x 60" Straight wall. Dome top with 18" manway and various flanged ports. Dish bottom has 3½"OD / 3"ID Tri-clamp discharge with 9" floor clearance. Equipped with a thermowell. Mounted on (3) stainless steel legs.

Top Access:
(1) 4"ID Flange
(1) 3"ID Flange
(2) 2"ID Flange
(2) 1"ID Flange
(1) ¾"ID Flange

Side Access:
(1) 3"ID Flange
(1) 1"ID Flange

OAD: 80"L x 76"W x 100"H

Chem Tek Tank SS Single Wall 750 GALLON CVS

• Manufacturer: Chem Tek
• Model Number: 750 GALLON CVS
• Frain Number: 5H7102

Chem Tek, 750 gallon 304 stainless steel single wall holding tank with prop style agitator. Vessel dimensions: 60" in diameter, 60" straight wall. Equipped with 18" diameter manway, top mounted pneumatic prop agitator and slant bottom with 2½"OD / 2"ID Tri-clamp discharge with 18" of ground clearance. Mounted on (4) stainless steel hip socket legs and casters.

OAD: 63"L x 63"W x 103"H

Cherry Burrell Tank SS Single Wall 1000GAL

• Manufacturer: Cherry Burrell
• Model Number: 1000GAL
• Frain Number: R32113

Cherry Burrell 1000 gallon, 304 stainless steel, insulated processing tank. Vessel dimensions: 72" ID x 60" straight wall. Equipped with a two speed 5 / 2½ Hp top bridge mounted sweep agitator, 20" diameter manway, (2) thermowells and (1) flush mount sensor. Cone bottom has 4½"OD / 4"ID Tri-Clamp center discharge with 8" ground clearance. Mounted on (4) leg frame.

Top Access:
(3) 3½"OD / 3"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(1) 3" ID Open Vent

OAD: 91"L x 78"W x 132"H

Cherry Burrell Tank SS Single Wall 1000GAL

• Manufacturer: Cherry Burrell
• Model Number: 1000GAL
• Frain Number: R32117

Cherry Burrell 1000 gallon, 304 stainless steel, insulated processing tank. Vessel dimensions: 72" ID x 60" straight wall. Equipped with a two speed 5 / 2½ Hp top bridge mounted sweep agitator, 20" diameter manway, (2) thermowells and (1) flush mount sensor. Cone bottom has 4½"OD / 4"ID Tri-Clamp center discharge with 20" ground clearance. Mounted on (4) leg frame.

Top Access:
(3) 3½"OD / 3"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(1) 3" ID Open Vent

OAD: 91"L x 78"W x 144"H
