Tank SS Single Wall is a classification of tanks fabricated from stainless steel but lack no insulation or jackets for heat transfer. SS single wall tanks may have agitators and these can be from simple propellers to fully scraped or bottom swept agitators.

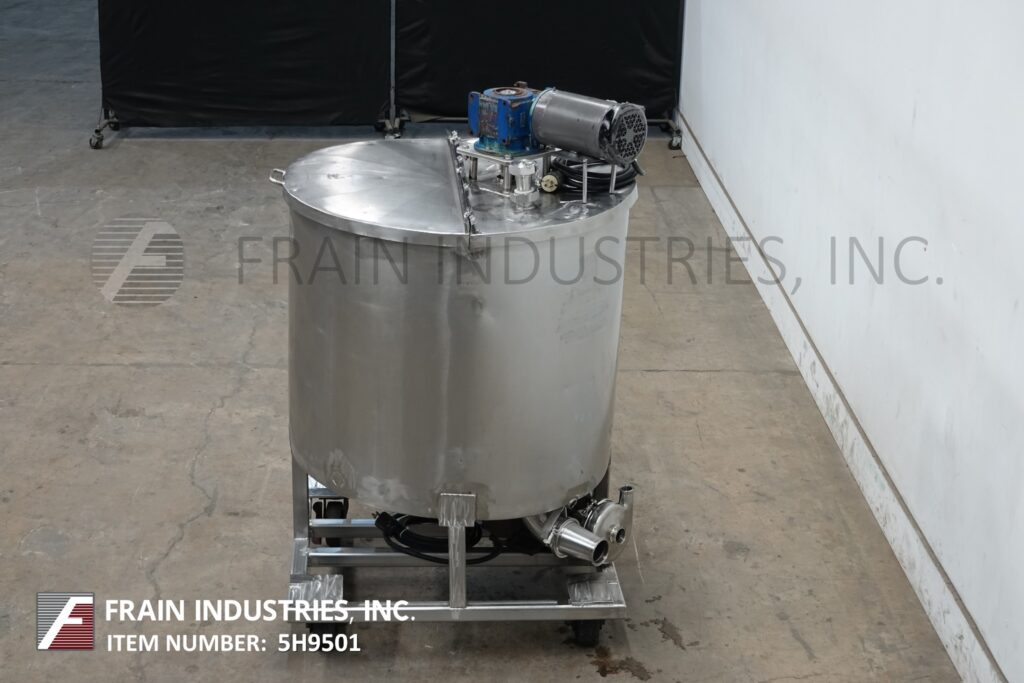

Lee, Model 200 DBT, 304 stainless steel tank. Vessel dimensions: 36" diameter x 51" deep with a 46" straight wall. Equipped with a lift off cover, bridge mounted prop agitation powered by a 3 hp drive and 2½"OD / 2"ID Tri-Clamp style discharge with butterfly valve and 10" ground clearance. Mounted on (4) stainless steel legs with casters.
OAD: 46"L x 43"W x 92"H
Apache, 1000 Gallon, 316 stainless steel, insulated single wall storage tank. Vessel dimensions: 72" in diameter x 60" Straight wall. Dome top with 18" manway and various flanged ports. Dish bottom has 3½"OD / 3"ID Tri-clamp discharge with 9" floor clearance. Equipped with a thermowell. Mounted on (3) stainless steel legs.
Top Access:(1) 4"ID Flange(1) 3"ID Flange(2) 2"ID Flange(2) 1"ID Flange(1) ¾"ID Flange
Side Access:(1) 3"ID Flange(1) 1"ID Flange
OAD: 80"L x 76"W x 100"H
Chem Tek, 750 gallon 304 stainless steel single wall holding tank with prop style agitator. Vessel dimensions: 60" in diameter, 60" straight wall. Equipped with 18" diameter manway, top mounted pneumatic prop agitator and slant bottom with 2½"OD / 2"ID Tri-clamp discharge with 18" of ground clearance. Mounted on (4) stainless steel hip socket legs and casters.
OAD: 63"L x 63"W x 103"H
Cherry Burrell 1000 gallon, 304 stainless steel, insulated processing tank. Vessel dimensions: 72" ID x 60" straight wall. Equipped with a two speed 5 / 2½ Hp top bridge mounted sweep agitator, 20" diameter manway, (2) thermowells and (1) flush mount sensor. Cone bottom has 4½"OD / 4"ID Tri-Clamp center discharge with 8" ground clearance. Mounted on (4) leg frame.
Top Access:(3) 3½"OD / 3"ID Tri-Clamp(1) 3"OD / 2½"ID Tri-Clamp(1) 3" ID Open Vent
OAD: 91"L x 78"W x 132"H
Cherry Burrell 1000 gallon, 304 stainless steel, insulated processing tank. Vessel dimensions: 72" ID x 60" straight wall. Equipped with a two speed 5 / 2½ Hp top bridge mounted sweep agitator, 20" diameter manway, (2) thermowells and (1) flush mount sensor. Cone bottom has 4½"OD / 4"ID Tri-Clamp center discharge with 20" ground clearance. Mounted on (4) leg frame.
OAD: 91"L x 78"W x 144"H
Cherry Burrell 1000 gallon, 316 stainless steel, single wall processing tank. Vessel dimensions: 72" ID x 60" straight wall. Equipped with a 7½ Hp top bridge mounted sweep agitator, 48" x 20" manway, 10" wide x 50" long adjustable baffle, (1) thermowell and (1) flush mount sensor port. Cone bottom has 5¾"OD / 4¾"ID Tri-Clamp center discharge with 22" ground clearance. Mounted on (3) leg frame with side access ladder.
Top Access:(2) 3"OD / 2¼"ID Seated Bevel(2) 3"OD / 2½"ID Tri-Clamp(1) 3" ID Open Vent
OAD: 102"L x 84"W x 140"H
Leader Iron Works Inc, 600 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 62" diameter x 57" deep with a 49" straight wall and cone bottom. Equipped with flip up covers, 7.5 Hp bridge mounted (2) 40" diameter four-paddle prop agitators and 3½" OD / 3" ID Tri-clamp style bottom discharge with 23" ground clearance.
OAD: 68"L x 66"W x 129"H
