Automatic Glue Machines

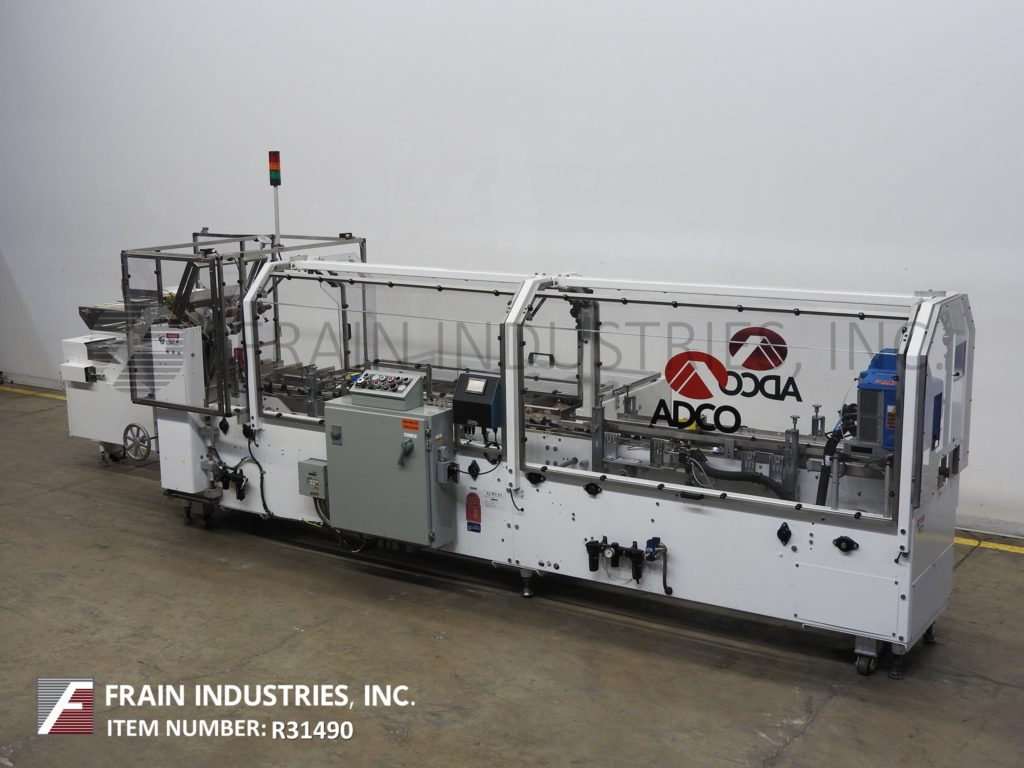

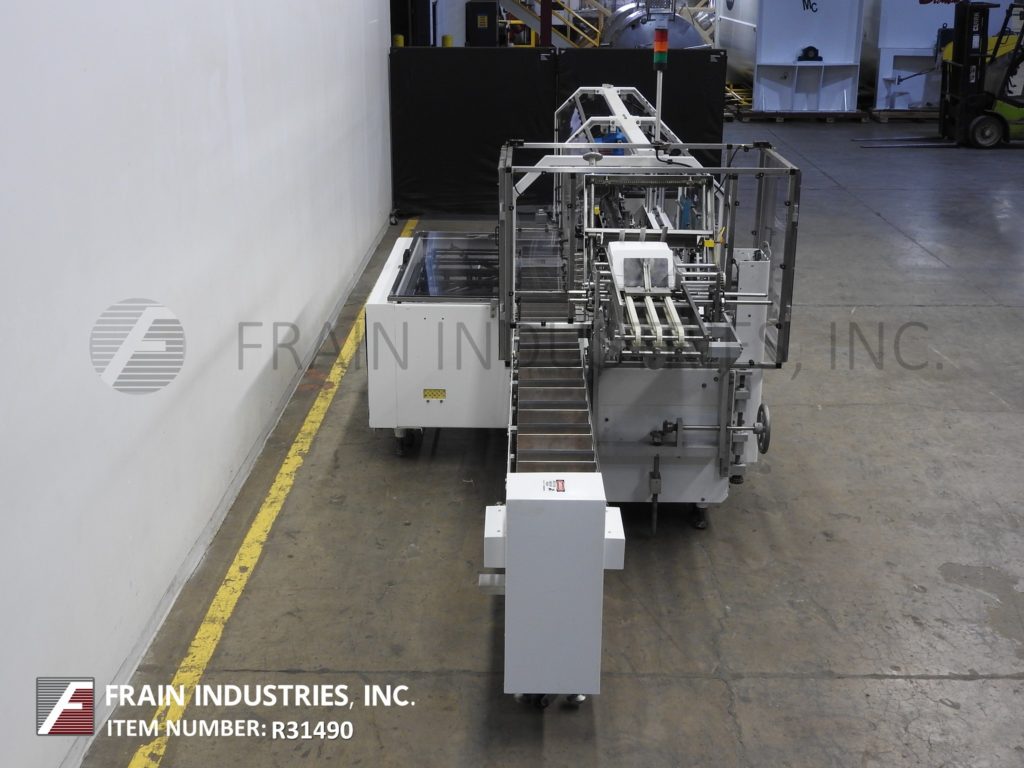

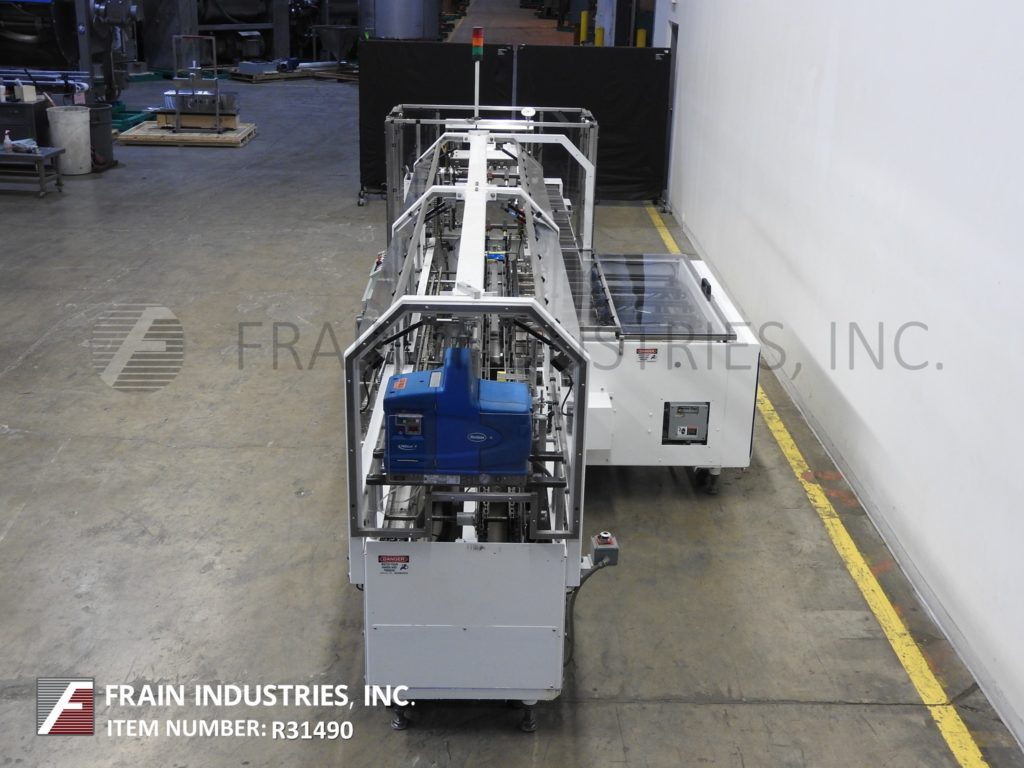

Adco Manufacturing Inc Cartoner Auto Horiz. Glue (Auto) 15DBC105EC

• Manufacturer: Adco
• Model Number: 15DBC105EC
• Frain Number: R31490

Adco Model 15DBC105EC, automatic, continuous motion, horizontal, hot melt glue cartoner rated from 25 to 125 cartons per minute – depending on materials and application. Carton size range: 1" to 9-1/2" in Length; 3/4" to 3" in Width 4 to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers and has 192" long x 12" wide fixed product pocket in feed conveyor with 12" long x 12" wide 1-1/2" high product pockets. Automatic (3) belt blank carton magazine, (2) head rotary pic-n-place, with pre-break, no-product / no-carton, top carton hold down, barrel cam loader, Nordson hot melt glue unit and built in vacuum system. Control Panel has relay logic controller with machine, vacuum, speed, pattern control with jog / run, on / off switches and start, stop, e-stop push button controls and statis lights. Mounted on heavy duty height adjustable frame with caster with leveling legs and interlock safety guarding.

Emboss Coder Available At Additional Cost

OAD: 285" L x 92" W x 76" H

Adco Manufacturing Inc Cartoner Auto Horiz. Glue (Auto) 9LBC150EC

• Manufacturer: Adco
• Model Number: 9LBC150EC
• Frain Number: 5H2660

PART OF 5H2660A Adco, Model 9LBC150EC, Automatic, horizontal, continuous motion, hot melt glue cartoner. Rated from 50 to 250 cartons per minute – depending on materials, application and machine configuration. Carton size range: 1" to 7" in Length; 3/4 to 4" in Width, 4-1/4" to 13-1/2" in Depth. Equipped with (4) chains adjustable set on 9" centers with 2" wide x 4" high lugs and has 264" long x 15" wide product in feed conveyor with 2-1/2" long x 2-1/2" wide x 15" deep product buckets, 108" long (4) belt powered blank carton magazine, (4) head rotary pic-n-place, with pre-break, no-product / no-carton, top carton hold down, barrel cam loader, Nordson ProBlue hot melt glue system, major and minor flap closers, 48" long compression discharge belt conveyor section, Seko gauges, vacuum pump, lube system and interlock safety guarding. Control Panel has A/B PLC, with A/B swing arm touch pad controller and panel view with reset / e-stop controls and (4) color stack light. Mounted on heavy duty base frame with caster and leveling legs.

OAD: 364" L x 96" W x 84" H

Thiele Cartoner Auto Horiz. Glue (Auto) 60S-SP

• Manufacturer: Thiele
• Model Number: 60S-SP
• Frain Number: 5H3615

Thiele, Model 60S-SP, automatic, continuous motion, stainless steel, horizontal, hot melt glue cartoner. Rated from 60 to 400 cartons per minute – depending on materials and application. Carton size range 1" to 3-1/2" in Length; 1/2" to 3-1/2 in Width; 2-3/4" to 4-1/2" in Depth Equipped with (2) chains and 246" long in feed conveyor with 3-1/2" long x 2" wide x 7-3/8" deep fixed product buckets, auto blank carton magazine, (4) head rotary pic and place, (2) chain carrier system set on 5" centers, with 1-1/2" high x 1/2" wide" lugs, no carton / no product / no product / no carton, barrel cam auto load section, Nordson hot melt glue system, major and minor flap closers, 48" long compression section, interlocking Lexan safety guarding and statis light bar. Control panel has CPU controller with start, stop, e-stop controls. Mounted on heavy duty base frame.

OAD: 310" L x 72" W x 78" H Without In Feed
546" L With In Feed

Tisma Cartoner Auto Horiz. Glue (Auto) TC600

• Manufacturer: Tisma
• Model Number: TC600
• Frain Number: 5H3616

Tisma, Model TC600, Automatic, horizontal, continous motion, hot melt glue cartoner. Rated from 30 to 240 cartons per minute – depending on materials, application and machine configuration. Carton size range per application. Equipped with 156" long in feed conveyor with 6" long x 1-1/2" wide x 12-1/2" deep fixed product buckets, 40" long automatic (2) chain auto carton magazine, (4) head rotary vacuum pick n place, 3 chains set on 10" centers with 2-1/2" high x 1" wide lugs, barrel cam loader with no carton / no product, no product / no carton and rotary top hold down, Nordson hot melt glue system, with major and minor flap closers and 24" compression section, interlock safety guarding and statis light bar. Control panel has A/B CPU controller and PLS touchpad controls with pusher run / jog, product on / off, carton pick-up auto / manual controls and start, stop, e-stop push buttons with A/B Dataliner unit. Mounted on heavy duty frame.

OAD: 216" L x 84" W x 63" H Without In Feed
372" L With In Feed

Klockner Cartoner Auto Horiz. Glue (Auto) CMC 6

• Manufacturer: Klockner
• Model Number: CMC 6
• Frain Number: 5H4451

Klockner Bartelt, Model CMC 6, automatic, horizontial, continous motion, hot melt glue cartoner rated 50 to 400 cartons per minute – depending on materials and application. Carton size range: 1-1/2" to 4-1/2" in Length; 3/4" to 3-1/2" in Width; 4-1/2" to 9" in Depth. Equipped with (3) chains adjustable set on 6" centers, with 1-1/2" wide x 2" high lugs, 216" long product in feed conveyor with 3-1/4" long x 1-1/2" high x 7" deep fixed product buckets, 36" long (3) chain powered blank carton magazine, (2) head rotary pic-n-place, no-product / no-carton, barrel cam loader, Nordson ProBlue hot melt glue and self contained vacuum pump systems. Control Panel has main, jog, run, vacuum on / off switches with vari speed controller and start, stop, e-stop push buttons. Mounted on heavy duty base frame with interlock safety door guarding and statis light.

OAD: 278" L x 90" W x 77" H

Triangle Cartoner Auto Horiz. Glue (Auto) HCS-E2-750

• Manufacturer: Triangle
• Model Number: HCS-E2-750
• Frain Number: 5H3790

Triangle Model HCS-E2-750, automatic, horizontal, continuous motion, hot melt glue cartoner with number of cartons per minute – depending on materials and application. Carton size range: Per application. Equipped with 190" long product in feed conveyor with 6" long x 3-1/2" wide x 11" deep fixed product buckets and 2 side rotary pouch feeders and placers. 72" long 2 belt automatic blank carton magazine, 3 head rotary pic n place, (4) chains adjustable system set on 7-1/2" centers with 5" high x 1" wide lugs, barrel cam loader, with rotary top hold down conveyor, no product / no carton detector, Nordson hot melt glue system, major and minor flap closers and 28" long dual side belt compression and discharge section. Control panel has A/B CPU controller with A/B swing arm touch pad controls and panel view with cartoner on / off, run / jog switches, start, stop and e-stop buttons. Mounted on heavy duty base frame with multi leveling legs and Lexan safety guarding.

OAD: 156" L x 80" W x 74" H Cartoner
190" L x 42" W x 50" H Lugged In Feed

Adco Manufacturing Inc Cartoner Auto Horiz. Glue (Auto) 15DBC105WD

• Manufacturer: Adco
• Model Number: 15DBC105WD
• Frain Number: R28670

Adco Model 15DBC105-WD, automatic, horizontal, continuous motion, stainless steel construction, hot melt glue cartoner. Carton size range: 1-1/2" to 9-1/2" in Length; 3/4" to 3" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers with 2-1/2" wide x 3-1/2" high lugs. 60" long (3) belt automatic blank carton magazine, (2) head rotary pic-n-place, top squaring device, barrel cam product loader, Nordson Problue hot melt glue system, major and minor flap closers, Seko adjustment gauges and 55" long lugged top carton assist conveyor set on 12" centers. Control panel has A/B PLC with A/B Panelview. Mounted on stainless steel base frame with interlock cage style safety guarding, casters and leveling legs. Speed dependent on materials, application and machine configuration.

OAD: 300" L x 94" W x 75" H

PMI Cartoner Auto Horiz. Glue (Auto)

• Manufacturer: PMI
• Model Number:
• Frain Number: 5H3793

PMI Model Automatic, horizontal, continuous motion, hot melt glue cartoner rated from 30 to 300 cartons per minute – depending on materials and application. Carton size range: Per application. Equipped with (3) chains adjustable, set on 7" centers with 2" wide x 2-1/2" high lugs. 384" long product in feed conveyor with 5" long x 3-1/2" wide x 11" deep fixed product buckets, 70" long, single belt, automatic blank carton magazine with (4) head rotary pick n place, barrel cam loader, overhead product confiner, no product / no carton detector, Nordson ProBlue hot melt glue system, with major and minor flap closers and 36" long side belt compression and discharge conveyor. Control panel has A/B PLC controller and A/B panelview controls with operator interface, start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty welded steel base frame with leveling legs and safety guarding.

OAD: 288" L x 120" W x 82" H Cartoner
384" L x 20" W x 38" H Infeed Conveyor

APV Anderson Cartoner Auto Horiz. Glue (Auto) 952

• Manufacturer: APV Anderson
• Model Number: 952
• Frain Number: R28810

APV Anderson, automatic, intermittent motion, stainless steel auto load cartoner rated from 10 to 50 cartons per minute – speeds depending on materials and application. Carton size range: 2" to 10" in Length; 2" to 4-1/2" in Width; 6-5/16" to 10" in Depth. Equipped with 72" long adjustable bucket in feed with 10" deep buckets, 42" carton magazine with low carton detector, 2 head rotary vacuum pick-in-place, four chain lug system set on 12" centers with 4" H lugs, dual top confiner carton rails, no product/no carton, Nordson glue system, compression discharge and interlocked guarding.

OAD: 176" L x 58" W x 72" H

Emboss coder available at added cost.

Adco Manufacturing Inc Cartoner Auto Horiz. Glue (Auto) 12IAL25SS

• Manufacturer: Adco
• Model Number: 12IAL25SS
• Frain Number: R28170

Adco Model 12IAL25SS, automatic, horizontal stainless steel, intermittent, motion, hot melt glue, cartoner with number of cartons per minute – depending on materials and application. Carton size range: 1" to 9-1/2" in Length x 3/4" to 6" in Width x 4" to 12" in Depth with proper change parts. Equipped with (4) chains ajustable set on 12" centers with 1-1/2" wide x 3-1/2" high lugs and 263" long fixed bucket in feed with 7" long x 3" wide x 11-3/4" deep product buckets, 48" long automatic (3) belt blank carton magazine, (2) head rotary pic n place with carton break, top squaring device, single pneumatic push arm product loader, Nordson Problue hot melt glue system, seko gauges, vacuum system and 24" long side belt compression and discharge belt. Control panel has A/B PLC controller and A/B panel view with start, stop, e-stop push button controls and statis light bar. Mounted on stainless steel frame with interlock safety guarding and height adjustable leveling legs.

OAD: 407" L x 80" W x 89" H

Kodiak / YWD Cartoners Cartoner Auto Horiz. Glue (Auto) 910-120

• Manufacturer: Kodiak / YWD Cartoners
• Model Number: 910-120
• Frain Number: 5H1490

Kodiak, Model 910-120, Automatic, continous motion, horizontal, hot melt glue cartoner, rated from 10 to 150 cartons per minute – depending on materials and application. Carton size range: Per application. Equipped with (4) chains adjustable set on 9" centers with 2-1/2" wide x 3" high lugs and right angled 48" long product compression belt to (4) belt servo timed in feed conveyor to (3) belt feed conveyor with overhead product sweep assembly into 7" long x 2" wide x 9-1/2" deep fixed product buckets. 72" long (3) chain automatic carton magazine with (3) head rotary pick and place, no product / no carton, top squaring device, rotary barrel cam loader, Nordson Problue hot melt glue system, minor and major flap closers, with 36" long compression and discharge belt section, Seko gauges and status light bar. Control panel has A/B controller with PLS touch pad and A/B Panel view controls. Mounted on heavy duty base frame with interlock safety guarding.

OAD: 378" L x 258" W x 96" H Assembled

Serpa Packaging Cartoner Auto Horiz. Glue (Auto) P100

• Manufacturer: Serpa Packaging
• Model Number: P100
• Frain Number: 5G8610

Serpa, Model P100, stainless steel, automatic, continuous motion, horizontal, hot melt glue cartoner. Rated from 50 to 250 cartons per minute – depending on materials, application and machine configuration. Carton size range: 1" to 6" in Length; ½" to 4" in Width, 4" to 7½" in Depth. Equipped with 4 chains adjustable in feed set on 6" centers with 3½" long x ½" wide x 8" deep fixed product pockets, 70" long 3 belt powered blank carton magazine, 6 head rotary carton pic-n-place with rotary pre-break, no-product / no-carton, top carton hold down, barrel cam loader, Nordson hot melt glue system, vacuum pump system, Seko guages, 24" long vacuum belt discharge with air blast reject and interlock safety guarding with statis light bar. Control Panel has AB PLC, with push button start / stop / reset / E-stop and swing arm AB PanelView 1200P touch screen display controls. Mounted on multi-leg, height adjustable frame.

OAD: 481" L x 75" W x 110" H
