Stainless Steel Processor Machines
Used Stainless Steel Processor Equipment
Tank Processors are tanks that are used for processing materials which usually are made of Stainless Steel and are fully jacketed and insulated with agitators and are designed for complete drainage of the products. Processing tanks are usually dished top and bottoms and may have Clean in Place capability. Processing tanks have a variety of agitation for simple mixers to triple motion agitators and full scrapping of the product from the walls and the bottom.
Related Categories
Stainless Steel Processor Equipment In Stock
Tank Processors 120 GAL
- Model Number: 120 GAL
- Frain Number: 5H0813
120 gallon capacity, 304 stainless steel, low pressure jacketed cooker cooler. Vessel dimensions: 48" diameter x 24" deep with a 12" straight wall and cone bottom. Equipped with ¾ Hp bridge mounted scrape agitator and 2½" OD / 1¾" ID seated bevel style bottom discharge with flow valve and 24" ground clearance. Control box with push button start / stop. Mounted on (3) legs.
Jacket Ports:
(2) 1½" NPT
OAD: 52"L x 52"W x 85"H
Get a Free Quote Call: 630-629-9900
Tank Processors 2500 GALLON
- Model Number: 2500 GALLON
- Frain Number: 5G9919
2,500 gallon capacity, 304 stainless steel insulated and low pressure jacketed process tank. Vessel dimensions: 84" diameter x 140" deep with 84" straight wall. Equipped with a dome top 20" x 20" hinged man way, 5 Hp top mounted sweep agitator. Cone bottom and 2½" OD / 2" ID tri-clamp style bottom discharge with jacketed elbow and 15" ground clearance. Mounted on (6) legs.
Top Ports:
(3) 2½"OD / 2"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
Jacket Ports:
(2) 2" NPT
OAD: 93"L x 88"W x 198"H
Get a Free Quote Call: 630-629-9900

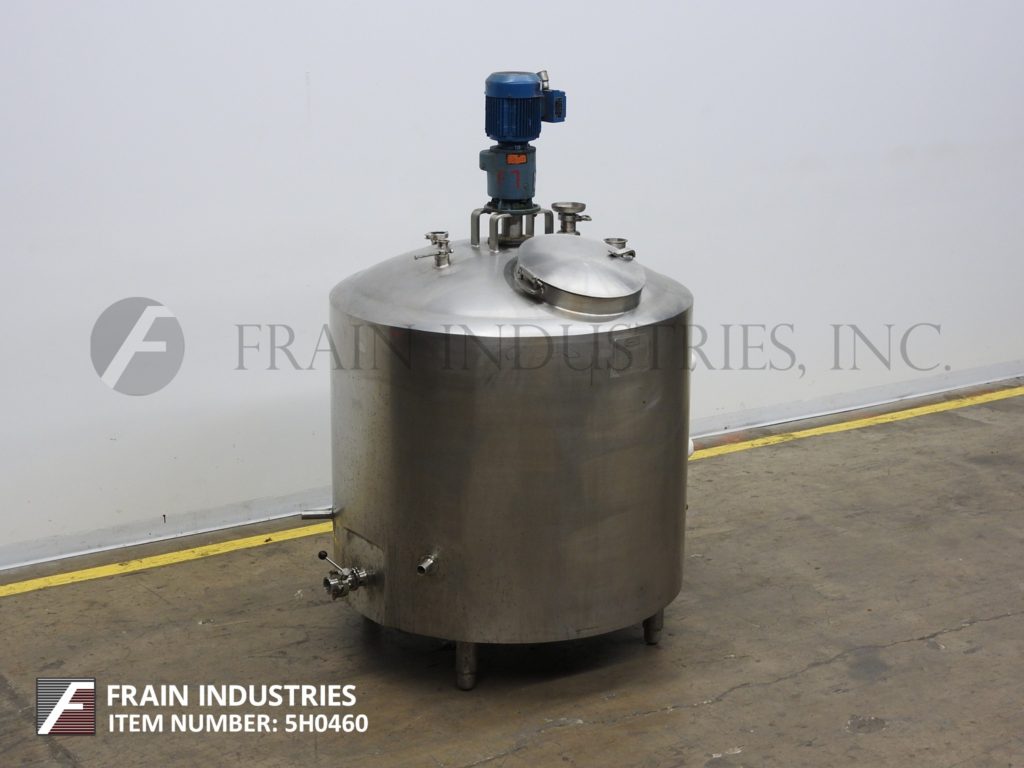

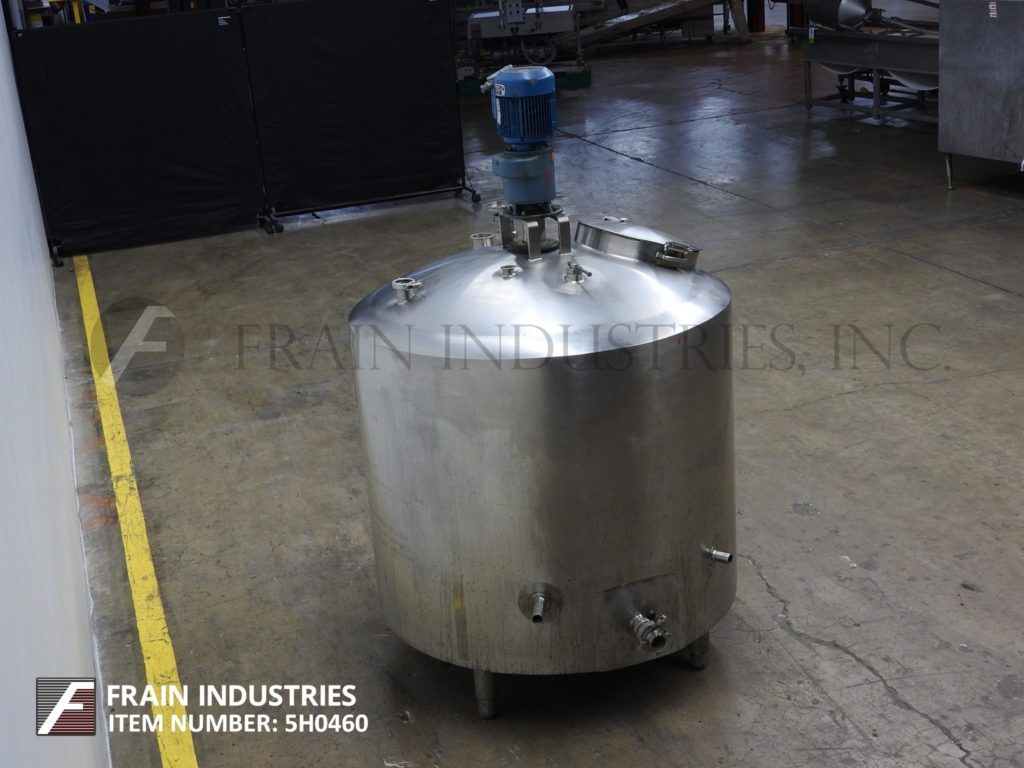

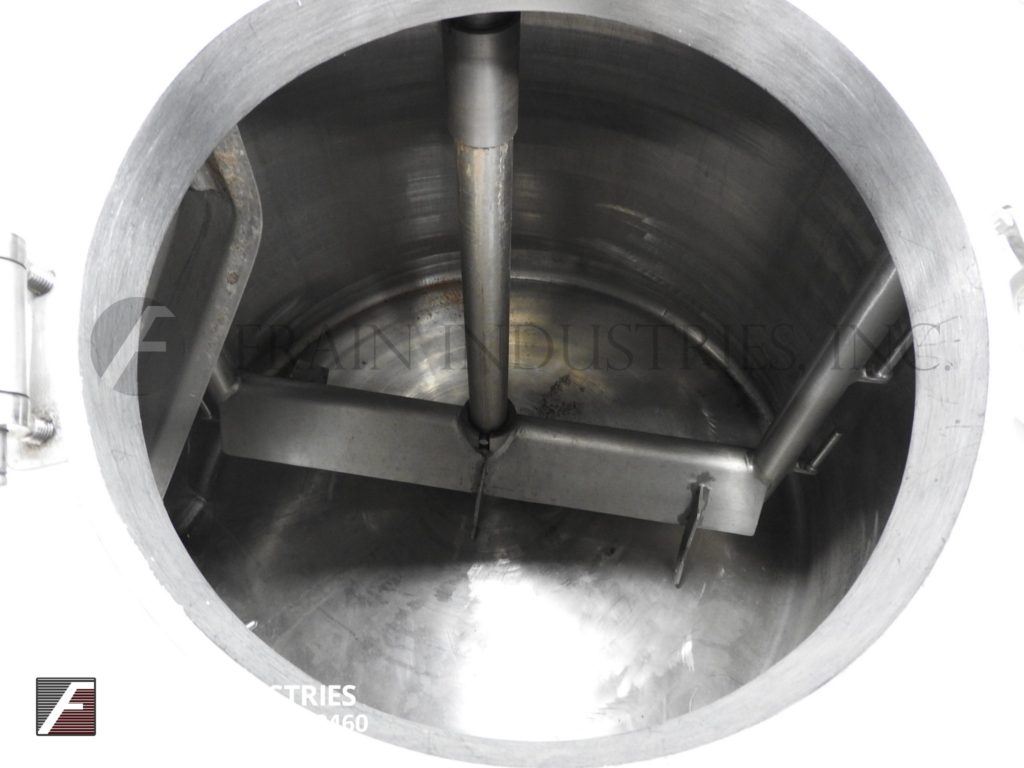

Walker Tank Processors PZ
- Manufacturer: Walker
- Model Number: PZ
- Frain Number: 5H0460
Walker, 200 gallon capacity, 304 stainless steel 3-zone jacketed process tank. Vessel dimensions: 46" with 36" straight wall. Equipped with a dome top, slant bottom, (1) 16" diameter top entry hinged man way, (1) 6" wide adjustable angle baffle, (2) thermowells, .75/.38 Hp top mounted scrape agitator and 2½" OD / 2" ID tri-clamp style bottom side discharge with butterfly valve and 12" ground clearance.
Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
Jacket Ports:
(6) 1½" NPT
MAWP: 15 PSI @ 250°F (heated)
MAWP: 100 PSI @ 100°F (cooling)
OAD: 60"L x 52"W x 85"H
Get a Free Quote Call: 630-629-9900
De Laval Canada Tank Processors 200 GAL
- Manufacturer: De Laval Canada
- Model Number: 200 GAL
- Frain Number: 5G9012
DeLaval, 200 gallon, 316 stainless steel insulated mixing tank with 50 PSI BOTTOM jacket. Vessel Dimensions: 45" diameter with a 32" straight wall. Equipped with top mounted bottom scrape agitation powered by a 1 hp drive, lift up covers, slant bottom and a 2½" OD / 2" ID tri-clamp bottom side discharge with 20" ground clearance. Mounted on (4) tubular legs.
Top Ports:
(1) 3"OD / 2½"ID Seated Beval
(1) 2"OD / ¾"ID Tri-Clamp
Side Ports:
(1) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / ¾"ID Tri-Clamp
Jacket Ports:
(1) 1½" NPT
(2) 1" NPT
MAWP: 50 PSI
OAD: 50" L x 48" W x 74" H
Get a Free Quote Call: 630-629-9900
Lee Tank Processors (2) 200 GAL
- Manufacturer: Lee
- Model Number: (2) 200 GAL
- Frain Number: 5G8100
South Valley Manufacturing, dual 200 gallon capacity, 316 stainless steel single wall tanks. Vessel dimensions: 35½" diameter x 50" deep with dish style bottom. Equipped with flip up covers and (2) 25 Hp bottom side mounted Dixie mixer agitators. Unit mounted on a (4) leg stainless steel base frame platform with (2) 2½" OD / 2" ID tri-clamp style bottom discharges with 30" ground clearance.
Top Ports:
(1) 2½" OD / 2" ID Tri-Clamp
(2) 2"OD / 1½" ID Tri-Clamp
(2) 1¾" Open Vent
Side Ports:
(8) 2½" OD / 2"ID Tri-Clamp
OAD: 108"L x 91"W x 91"H
Get a Free Quote Call: 630-629-9900
GOE General Oil Equipment Tank Processors 10 GAL
- Manufacturer: GOE General Oil Equipment
- Model Number: 10 GAL
- Frain Number: R27180
GOE, 10 gallon 316 stainless steel single wall mixing tank and Waukesha pump system. Vessel dimensions: 15½" diameter x 16" straight wall. Equipped with (3) paddle dixie mixer agitation powered by a ½ hp drive and fed into a Waukesha Model 15 pump with a 2"OD / 1"ID Tri-clamp style outlet with 12" ground clearance. Pump is powered by a ½ hp drive with a 7.72:1 ratio for a maximum pumping capacity of 3 gpm. Control box with pump and mixer variable speed controls. System mounted on a 41" long x 25" wide stainless steel base with casters.
OAD: 43"L x 25"W x 55"H
Get a Free Quote Call: 630-629-9900
Tank Processors 50 GAL
- Model Number: 50 GAL
- Frain Number: 5G7234
Industrial Inc, 50 gallon capacity, 316 stainless steel process tank with pump. Vessel dimensions: 30" diameter x 28" deep with a 15" straight wall and cone bottom. Equipped with a bolt down cover, 9" x 6" manway, ¾ Hp top mounted 16" diameter (2) paddle prop agitator and 3/4 hp discharge pump. Control box includes start and E-stop buttons. Unit mounted on stainless steel base frame.
Top Ports:
(1) 4¾" OD / 4" ID Tri-clamp
(2) 3½" OD / 3" ID Tri-clamp
(1) 2½" OD / 2" ID Tri-clamp
OAD: 56"L x 33"W x 72"H
Get a Free Quote Call: 630-629-9900
Tank Processors 50 GAL
- Model Number: 50 GAL
- Frain Number: 5G7235
Industrial Inc, 50 gallon capacity, 316 stainless steel process tank. Vessel dimensions: 30" diameter x 28" deep with a 15" straight wall and cone bottom. Equipped with a bolt down cover, 9" x 6" manway, ¾ Hp top mounted 16" diameter (2) paddle prop agitator. Control box includes start and E-stop buttons. Unit mounted on stainless steel base frame.
Top Ports:
(1) 4¾" OD / 4" ID Tri-clamp
(2) 3½" OD / 3" ID Tri-clamp
(1) 2½" OD / 2" ID Tri-clamp
OAD: 56"L x 33"W x 72"H
Get a Free Quote Call: 630-629-9900
Precision Stainless Tank Processors 200 GAL 200 Gal, 304L S/S, Jkt, Scrape
- Manufacturer: Precision Stainless
- Model Number: 200 GAL
- Frain Number: R23361
Precision Stainless, 200 gallon, 304L S/S, jacketed mix tank. Vessel: 54" OD; 22" straight wall, Equipped with dome top, 18" man way with flip top, latch down cover, bridge mounted side and bottom scrape agitation. Additionally features one fixed inside baffle, two 3" and one 2 1/2" OD sanitary top ports. Full side / bottom jacketed rated MAWP of 90 psi @ 400°F and MDMT -20³F @ 90 psi. Cone bottom with 3" OD center bottom sanitary discharge at 16" floor clearance.
OAD: 50" W x 54" L x 84" H
Get a Free Quote Call: 630-629-9900
Mueller Tank Processors 120 GAL
- Manufacturer: Mueller
- Model Number: 120 GAL
- Frain Number: 5G1972
Mueller, 450 Liter, 120 gallon, 316 stainless steel, jacketed, internal pressure & vacuum rated mix vessel. Vessel dimensions: 32" ID x 36" straight wall. Equipped with dome top, 16" manway with 3" OD sanitary port, prop style agitator, (3) 2" OD and (1) 3" OD sanitary top ports. Full side and bottom jacket with 1-1/2" ID NPT in / outlets. Dish bottom has 3" OD sanitary center bottom discharge with valve with 10" floor clearance with valve (16" floor clearance without valve).
National Board #10605
Jacket:
MAWP 150 psi @ 365°F
Vessel:
MAWP 50 psi @ 365°F
Full Vacuum
OAD: 40" Diameter x 88" High
Get a Free Quote Call: 630-629-9900
Northland Stainless Inc Tank Processors 265 GALLON
- Manufacturer: Northland Stainless Inc
- Model Number: 265 GALLON
- Frain Number: 5G1971
Northland 1,000 Liter (264 gallon), 316 stainless steel, jacketed (side & bottom), internal vacuum rated and internal pressure rated mix vessel. Equipped with dome top (various ports), 16" manway, prop style agitator, CIP spray balls and dish bottom with center bottom discharge.
OAD: 50" Diameter x 101" High
National Board # 837.
Vessel dimensions: 38" ID ; 44" straight wall.
Jacket:
MAWP 150 psi @ 365° F
MDMT -20° F @ 150 psi
Vessel:
MAWP 50 psi @ 365° F
MDMT -20° F @ 50 psi
Vessel: Full vacuum
